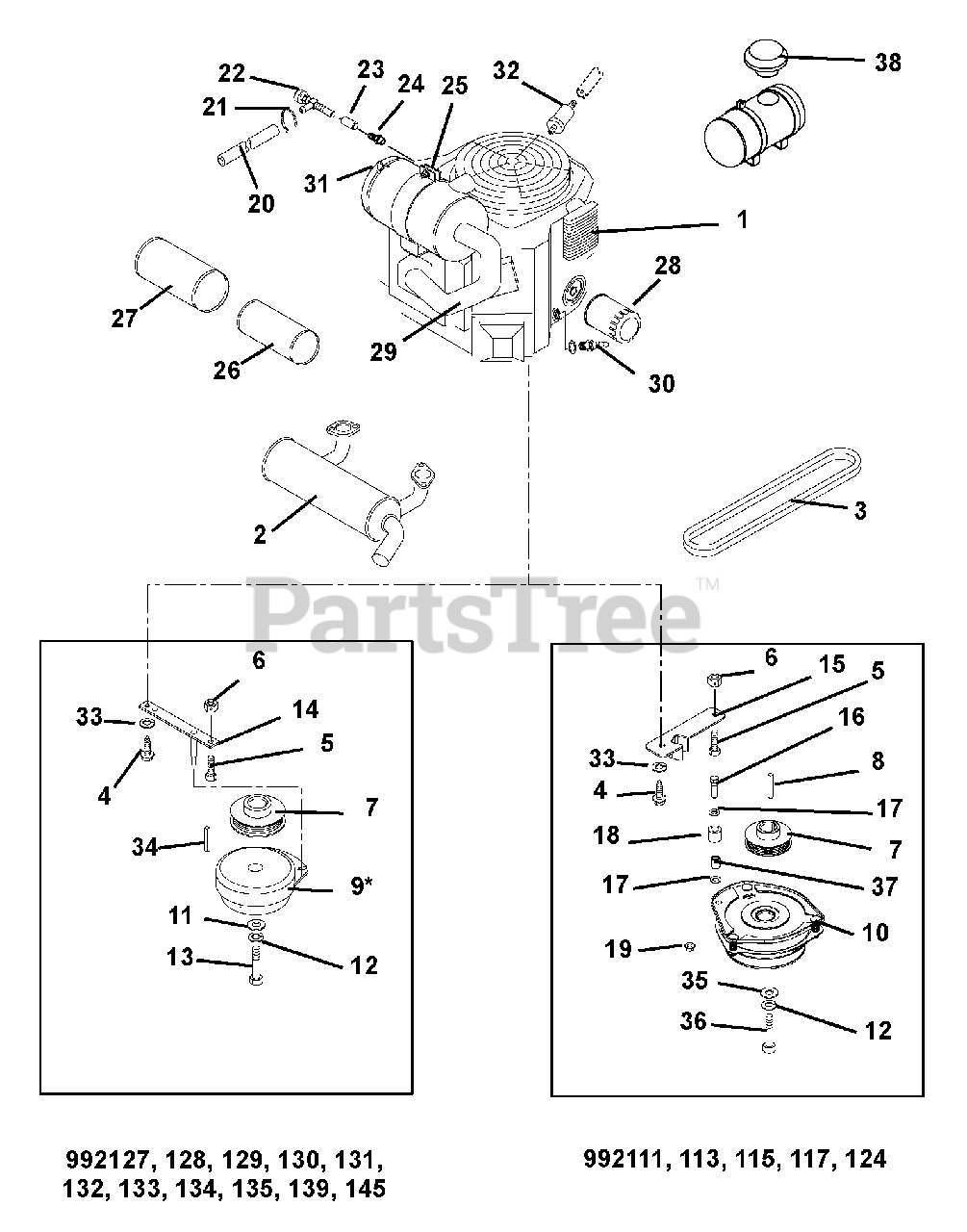

992113 (PM 252M XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08268300

ENGINE, KAWASAKI 25HP

Note: (FH721V) (992111, 115, 127, 128, 131, 132)

$

$

Not available

1

Gravely 08200029

ENGINE, 26HP GAS KAW VERT. L/C

Note: (FD731V) (992113, 117, 124, 130, 134, 135, 139)

$

$

Not available

1

Gravely 08268100

ENGINE, KOHLER 27HP

Note: (CV740S) (992129, 133, 145)

$

$

Not available

2

Gravely 09281600

MUFFLER, KAW (INTERMEDIATE-Z)

Note: (992111, 115, 127, 128, 131, 132)

$298.99

$

Usually ships in 4-12 days

0

2

Gravely 00297100

MUFFLER,LIQUID COOLED VERT.

Note: (992113, 117, 124, 130, 134, 135, 139)

$

$

Not available

2

Gravely 00470400

MUFFLER, KOHLER TWIN

Note: (992129, 133, 145)

$218.99

$

In Stock, only 2 left!

0

3

Gravely 07242000

POLY V-BELT, K-5 RIBS

$54.99

$

In Stock, Qty 18

0

4

Gravely 07414100

SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

Note: (992111, 115, 127, 128, 129, 131, 132, 133,145)

$3.99

$

In Stock, Qty 20+

0

5

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

Note: (992113, 117, 124, 130, 134, 135, 139)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (992111, 115, 127, 128, 129, 131, 132, 133, 145)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300017

SHEAVE, POLY V 1.127X3.25 -XDZ
(Superseded to 07300041)

$95.99

$

In Stock, Qty 5

0

8

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

$5.49

$

In Stock, Qty 10

0

9

Gravely 00462500

CLUTCH, WARNER 6.323 O/PIN

Note: (992127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145)

$619.99

$

Usually ships in 4-12 days

0

10

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

Note: (992111, 113, 115, 117, 124)

$512.99

$

In Stock, only 2 left!

0

11

Gravely 06445000

WSHR-FL-STL .515X1.625X.250 YZ

$6.49

$

In Stock, Qty 20+

0

12

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

13

Gravely 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 14

0

14

Gravely 04907200

ANCHOR-CLUTCH

Note: (992127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145)

$75.99

$

In Stock, only 3 left!

0

15

Gravely 00444751

WMT, CLUTC STOP-200S. VERT.
(Superseded to 00662251)

Note: (992111, 113, 115, 117, 124)

$84.99

$

Usually ships in 4-12 days

0

16

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

17

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 1 left!

0

19

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

21

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

22

Gravely 00429000

DRAIN, 1/2" OIL

$40.99

$

In Stock, only 3 left!

0

23

Gravely 07052200

ADAPTER, 3/8 NPTF

$15.99

$

Usually ships in 4-12 days

0

24

Gravely 02749600

NIPPLE

$9.99

$

Usually ships in 4-12 days

0

25

Gravely 09257600

BRACKET, AIR CLEANER MOUNT

$89.99

$

Usually ships in 4-12 days

0

26

Gravely 21536900

ELEMENT, INNER SAFETY

$29.99

$

In Stock, Qty 11

0

27

Gravely 21537000

ELEMENT, OUTER PRIMARY

$37.99

$

In Stock, Qty 20+

0

28

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (992111, 115, 127, 128, 131, 132)

$18.99

$

Usually ships in 2-5 days

0

28

Gravely 21380000

FILTER-OIL/14HP KAW
(Superseded to 21535800)

Note: (992113, 117, 124, 130, 134, 135, 139)

$18.99

$

Usually ships in 2-5 days

0

28

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (992129, 133, 145)

$21.99

$

Usually ships in 4-12 days

0

29

Gravely 21536800

HOSE, AIR INTAKE

Note: (992129, 133, 145)

$26.99

$

In Stock, only 1 left!

0

30

Gravely 21536100

PLUG, SPARK

Note: (992111, 115, 127, 128, 131, 132)

$10.99

$

In Stock, Qty 20+

0

30

Gravely 21538500

PLUG, SPARK

Note: (992113, 117, 124, 130, 134, 135, 139)

$6.49

$

In Stock, Qty 20+

0

30

Gravely 21536800

HOSE, AIR INTAKE

Note: (992129, 133, 145)

$26.99

$

In Stock, only 1 left!

0

31

Gravely 09257500

AIR CLEANER ASSEMBLY
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

32

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (992111, 115, 127, 128, 131, 132)

$13.99

$

In Stock, Qty 20+

0

32

Gravely 21541800

FILTER, FUEL 26 HP L/C

Note: (992113, 117, 124, 130, 134, 135, 139)

$27.99

$

Usually ships in 4-12 days

0

32

Gravely 21539500

FILTER, FUEL

Note: (992129, 133, 145)

$18.99

$

In Stock, Qty 20+

0

33

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

34

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

$3.99

$

In Stock, Qty 13

0

35

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

36

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.99

$

In Stock, Qty 7

0

37

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 2 left!

0

38

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

Note: (992113, 117, 124, 130, 134, 135, 139)

$58.99

$

In Stock, Qty 5

0

Gravely 59205200

KIT,BRAKE POLE MODULE REPLACE

Note: (Not Shown)

$

$

Not available
