992113 (PM 252M XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki (SN: 000101 & Above) Fuel Tanks And Hoses Parts Diagram

Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki

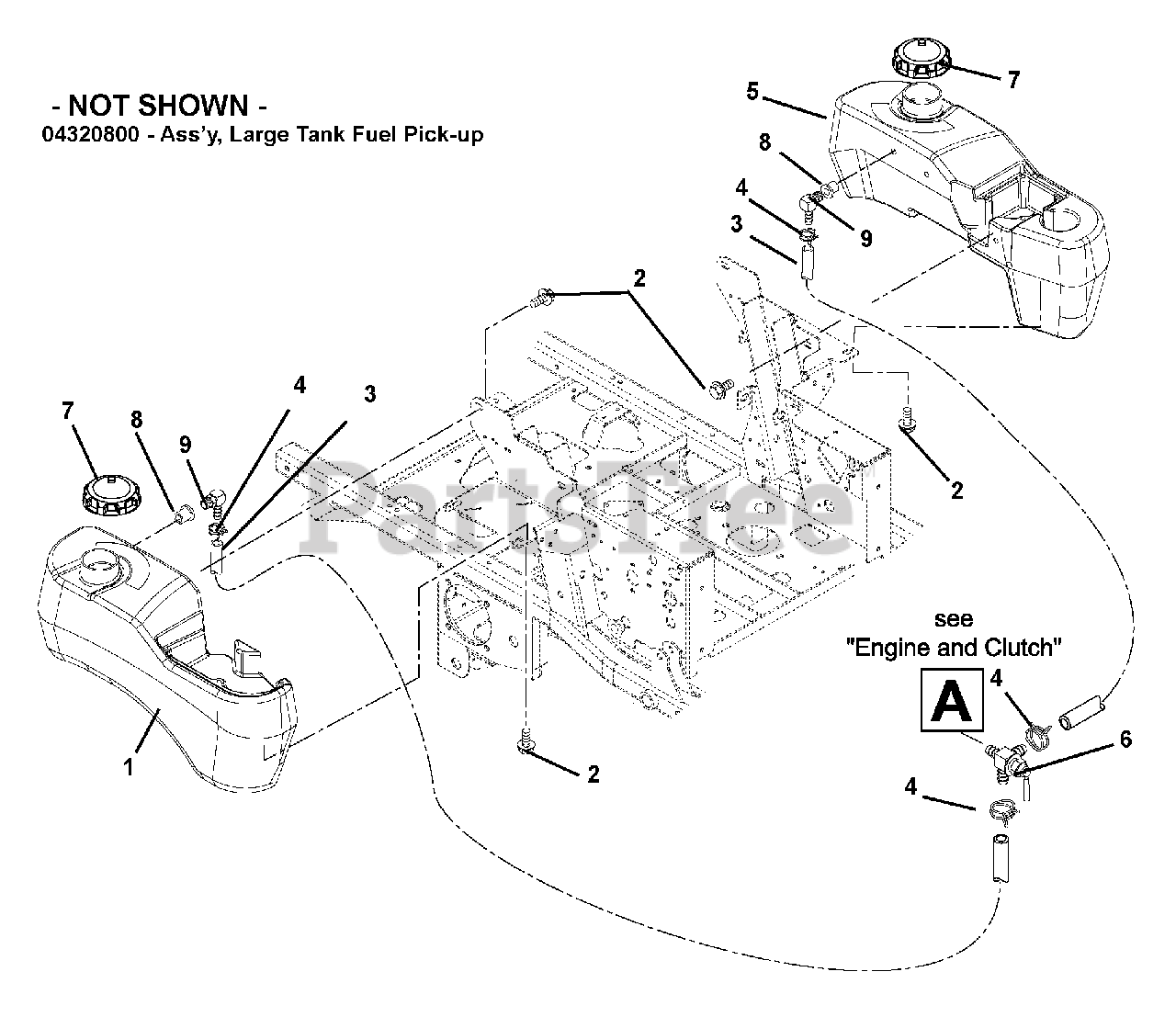

Fuel Tanks And Hoses Parts Diagram

  • Title

1

Gravely 00446000

TANK, GAS RH (200 SERIES)

$383.99

$

Usually ships in 4-12 days

0

1

Gravely 04320800

ASS'Y,LARGE TANK FUEL PICKUP

Note: NOT SHOWN

$35.99

$

In Stock, Qty 12

0

2

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

3

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (2 at 42 in.) (992111, 115, 127, 128, 129, 131, 132, 133, 145)

$1.49

$

In Stock, Qty 20+

0

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

Note: (2 at 42 in.) (992113, 117, 124, 130, 134, 135, 139)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

5

Gravely 00191200

TANK, LH FUEL-200 S. W/O HOSE

Note: (EYE-Q)- 200 Series

$402.99

$

Usually ships in 4-12 days

0

6

Gravely 09258200

VALVE, FUEL

$48.99

$

In Stock, Qty 18

0

7

Gravely 00273700

CAP - FUEL
(Superseded to 03859100)

$29.99

$

In Stock, Qty 20+

0

8

Gravely 00387300

GROMMET, DAPCO VITON #12240

$9.99

$

In Stock, Qty 20+

0

9

Gravely 21539200

FITTING, TANK ELBOW .25 HOSE

$15.99

$

In Stock, Qty 5

0
