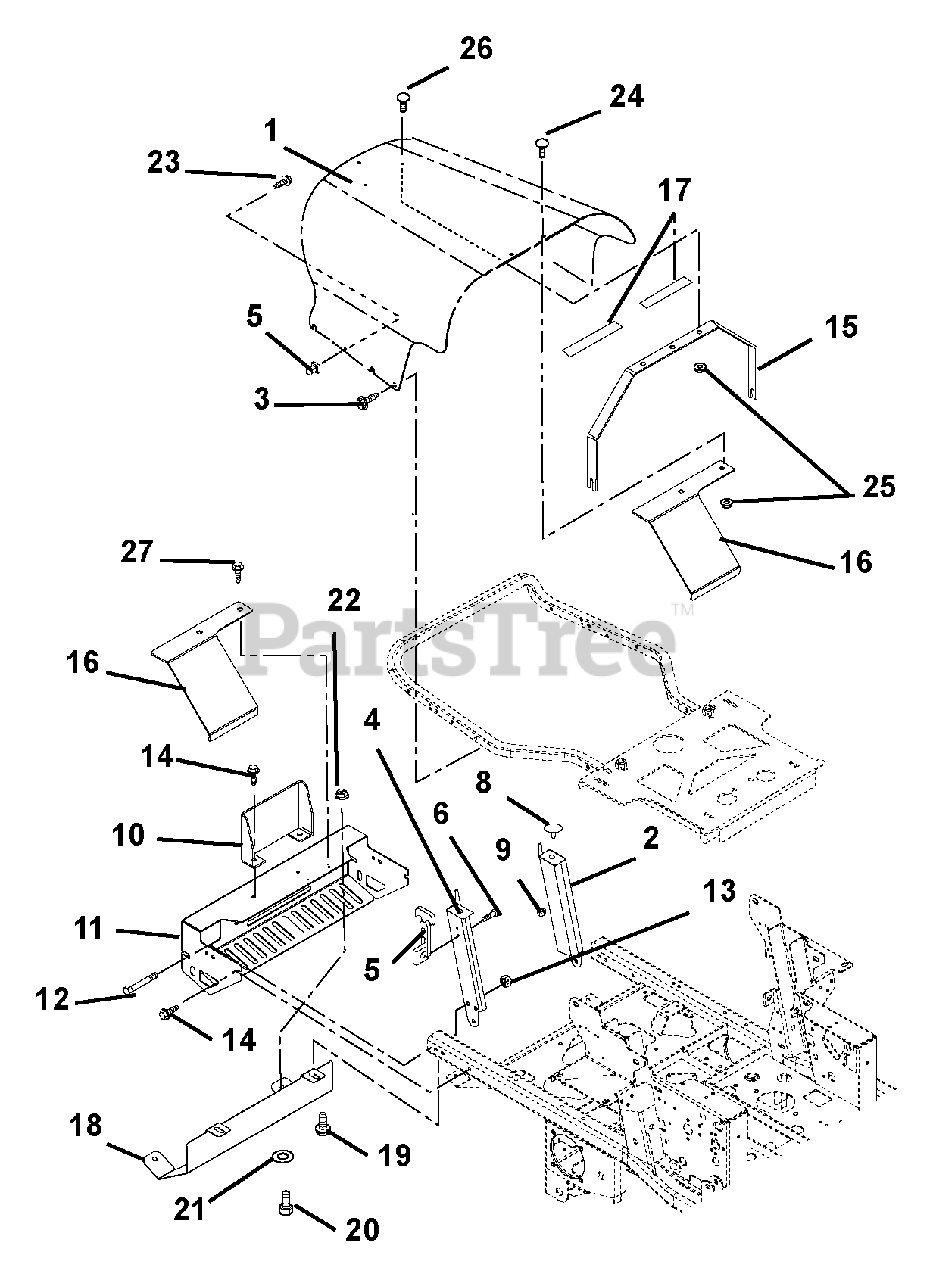

992113 (PM 252M XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki (SN: 000101 & Above) Hood And Bumper Parts Diagram

Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki

Hood And Bumper Parts Diagram

  • Title

1

Gravely 09257753

HOOD

Note: (992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000200 and below)

$

$

Not available

Gravely 00470053

HOOD
(Superseded to 00678653)

Note: (992113, 117, 124 Serial Number 000101 and above; 992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000201 and above)

$111.99

$

Usually ships in 4-12 days

0

2

Gravely 09275153

WMT, HOOD SUPPORT -LH

$138.99

$

Usually ships in 4-12 days

0

3

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 09227953

WLDMT, HOOD SUPPORT RH

$104.99

$

Usually ships in 4-12 days

0

5

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 14

0

6

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

8

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

9

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09229951

GUARD, ENGINE

$65.99

$

Usually ships in 4-12 days

0

11

Gravely 00463251

WMT, BUMPER (GRAVELY) 200S.

$

$

Not available

12

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

13

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 09295651

BRACE, HOOD SUPPORT

Note: (992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000200 and below)

$

$

Not available

Gravely 00483051

BRACE, HOOD SUPPORT

Note: (992113, 117, 124 Serial Number 000101 and above; 992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000201 and above)

$

$

Not available

16

Gravely 00355451

GUARD (MZ VERT L/C)

Note: (992113, 117, 124, 130, 134, 135, 139)

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 00932300

VHB TAPE 4941F

Note: (992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000200 and below)

$3.99

$

Usually ships in 4-12 days

0

18

Gravely 00462251

SHIELD - HEAT - MZ PROD

$105.99

$

Usually ships in 4-12 days

0

19

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.99

$

In Stock, Qty 14

0

21

Gravely 06435900

WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

24

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

Note: (992113, 117, 124, 130, 134, 135, 139)

$1.49

$

In Stock, Qty 11

0

25

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (992130, 134, 135, 139 Serial Number 000200 and below; 992111, 115, 127, 128, 129, 131, 132, 133, 145 Serial Number 000201 and above)

$1.49

$

In Stock, Qty 15

0

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

Note: (992113, 117, 124 Serial Number 000101 and above; 992130, 134, 135, 139 Serial Number 000201 and above)

$1.49

$

In Stock, Qty 15

0

26

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

Note: (992113, 117, 124 Serial Number 000101 and above; 992111, 115, 127, 128, 129, 130, 131, 132, 133, 134, 135, 139, 145 Serial Number 000201 and above)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

Note: (992113, 117, 124, 130, 134, 135, 139)

$0.99

$

In Stock, Qty 20+

0
