992113 (PM 252M XDZ) - Gravely Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps, Cooler & Hoses Parts Diagram

Pro-Master 52" Zero-Turn Mower, 26hp Kawasaki

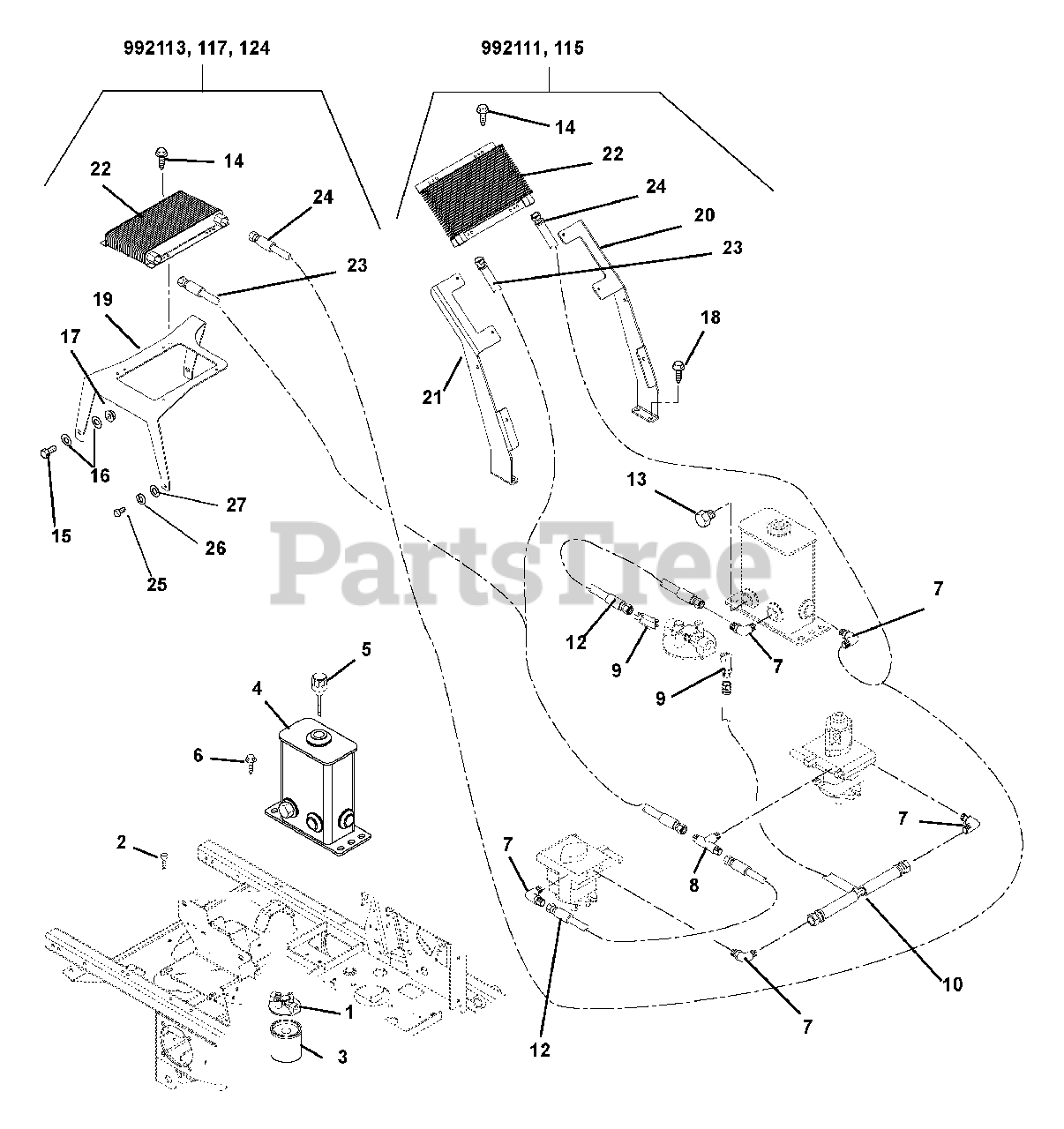

Hydraulic Tank, Filter, Pumps, Cooler & Hoses Parts Diagram

  • Title

1

Gravely 09419900

FILTER HOUSING ZINGA ZAF11250

$

$

Not available

2

Gravely 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.99

$

In Stock, Qty 15

0

3

Gravely 09414200

FILTER ELEMENT, ZINGA AE-25
(Superseded to 03931900)

$30.99

$

In Stock, Qty 20+

0

4

Gravely 00161051

WMT, HYDRAULIC TANK

$

$

Not available

5

Gravely 00346100

BREATHER, DIPSTICK
(Superseded to 09273900)

$85.99

$

In Stock, only 1 left!

0

6

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07069600

FTG. HYD. 90 EL M8F-M8O

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 07069500

FTG.HYD TEE M8O-M8O-M8O

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 07069900

FTG. HYD 45DEG M8O-M12O

$30.99

$

Usually ships in 4-12 days

0

10

Gravely 00364800

HOSE, TEE ASSM .50" 8O-8O-8O

$157.99

$

Usually ships in 4-12 days

0

11

Gravely 00364600

HOSE, HYD. .50-19-0K F8F0-F8F9

$102.99

$

Usually ships in 4-12 days

0

12

Gravely 00364700

HOSE,HYD..50-16-0K FO8J0-FO8J0

$78.99

$

Usually ships in 4-12 days

0

13

Gravely 07000006

PLUG-HEX .75-16 "O-RING"

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05971800

BLT-HEX .50-13X.75 GR5 YWZC

Note: (992113, 117, 124)

$2.99

$

Usually ships in 4-12 days

0

16

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

Note: (992113, 117, 124)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

Note: (992113, 117, 124)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

Note: (992111, 115)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 00486351

BRACKET, OIL COOLER MOUNTING

Note: (992113, 117, 124)

$

$

Not available

20

Gravely 00464451

BRKT, VERT. AIR COOLER MTG-LH

Note: (992111, 115)

$54.99

$

Usually ships in 4-12 days

0

21

Gravely 00464551

BRKT, VERT. AIR COOLER MTG-RH

Note: (992111, 115)

$

$

Not available

22

Gravely 00453400

COOLER, OIL

$

$

Not available

23

Gravely 00467300

HOSE HYD .50-24-0K M08N0-F08F9

Note: (992111, 115)

$

$

Not available

Gravely 00467000

HOSE HYD .50-31-0K M08N0-F08F0

Note: (992113, 117, 124)

$

$

Not available

24

Gravely 00467200

HOSE HYD .50-16-0K M08N0-F08F0

Note: (992111, 115)

$

$

Not available

Gravely 00466900

HOSE HYD .50-25-0K M08N0-F08F0

Note: (992113, 117, 124)

$

$

Not available

25

Gravely 05974900

BLT-HEX M6-1X20 WYZC

Note: (992113, 117, 124)

$

$

Not available

26

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

Note: (992113, 117, 124)

$0.99

$

In Stock, Qty 9

0

27

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

Note: (992113, 117, 124)

$0.99

$

In Stock, Qty 20+

0
