992121 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Clutch & Flywheel Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

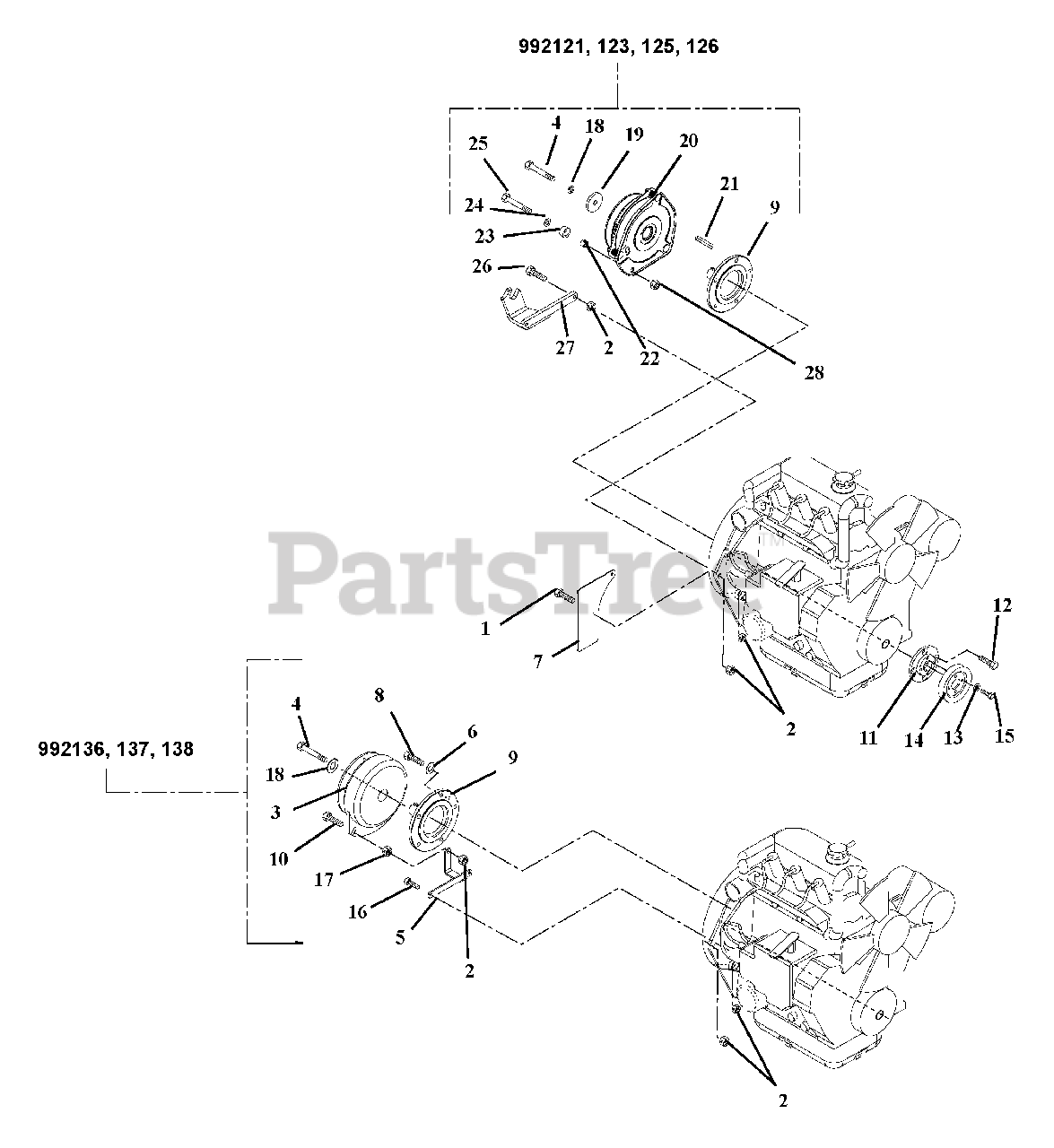

Clutch & Flywheel Parts Diagram

  • Title

1

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

2

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (992136, 137, 138)

$1.49

$

In Stock, Qty 20+

0

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (992121, 123, 125, 126)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00462500

CLUTCH, WARNER 6.323 O/PIN

$619.99

$

Usually ships in 4-12 days

0

NS

Gravely 59205200

KIT,BRAKE POLE MODULE REPLACE

$

$

Not available

4

Gravely 05964600

BLT-HEX .44-20X2.50 GR5 YWZC
(Superseded to 05902017)

$2.99

$

In Stock, Qty 7

0

5

Gravely 09264551

STABILIZER, CLUTCH

$25.99

$

Usually ships in 4-12 days

0

6

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 09273851

GUARD, FLYWHEEL

$7.49

$

Usually ships in 4-12 days

0

8

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 00447200

SHAFT, STUB (BRIGGS-DIESEL)

$

$

Not available

10

Gravely 05952400

BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

11

Gravely 09265600

ADAPTER, SHEAVE (DIESEL)

$98.99

$

Usually ships in 4-12 days

0

12

Gravely 05978700

BLT, FSCHS M8-1.25X25

$

$

Not available

13

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

14

Gravely 07328100

SHEAVE, POLY V 1.000 X 3.25

$

$

Not available

15

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.49

$

In Stock, only 3 left!

0

16

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 06529200

NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$1.49

$

In Stock, Qty 8

0

18

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

Note: (992121, 123, 125, 126)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

Note: (992121, 123, 125, 126)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 00458200

CLUTCH, OGURA GT3.5

Note: (992121, 123, 125, 126)

$685.99

$

Usually ships in 4-12 days

0

21

Gravely 06610300

KEY .25X.25X2.25

Note: (992121, 123, 125, 126)

$3.49

$

In Stock, only 3 left!

0

22

Gravely 08536300

SPACER .375X.686X.516 ST

Note: (992121, 123, 125, 126)

$

$

Not available

23

Gravely 07500006

BUMPER,RUBBER .62X1.0X.51 LG

Note: (992121, 123, 125, 126)

$6.49

$

Usually ships in 4-12 days

0

24

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (992121, 123, 125, 126)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

Note: (992121, 123, 125, 126)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

Note: (992121, 123, 125, 126)

$2.99

$

In Stock, Qty 11

0

27

Gravely 00449551

BRKT,CLUTCH STOP (DIESEL)
(Superseded to 04638451)

Note: (992121, 123, 125, 126)

$47.99

$

Usually ships in 4-12 days

0

28

Gravely 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

Note: (992121, 123, 125, 126)

$1.49

$

In Stock, Qty 20+

0
