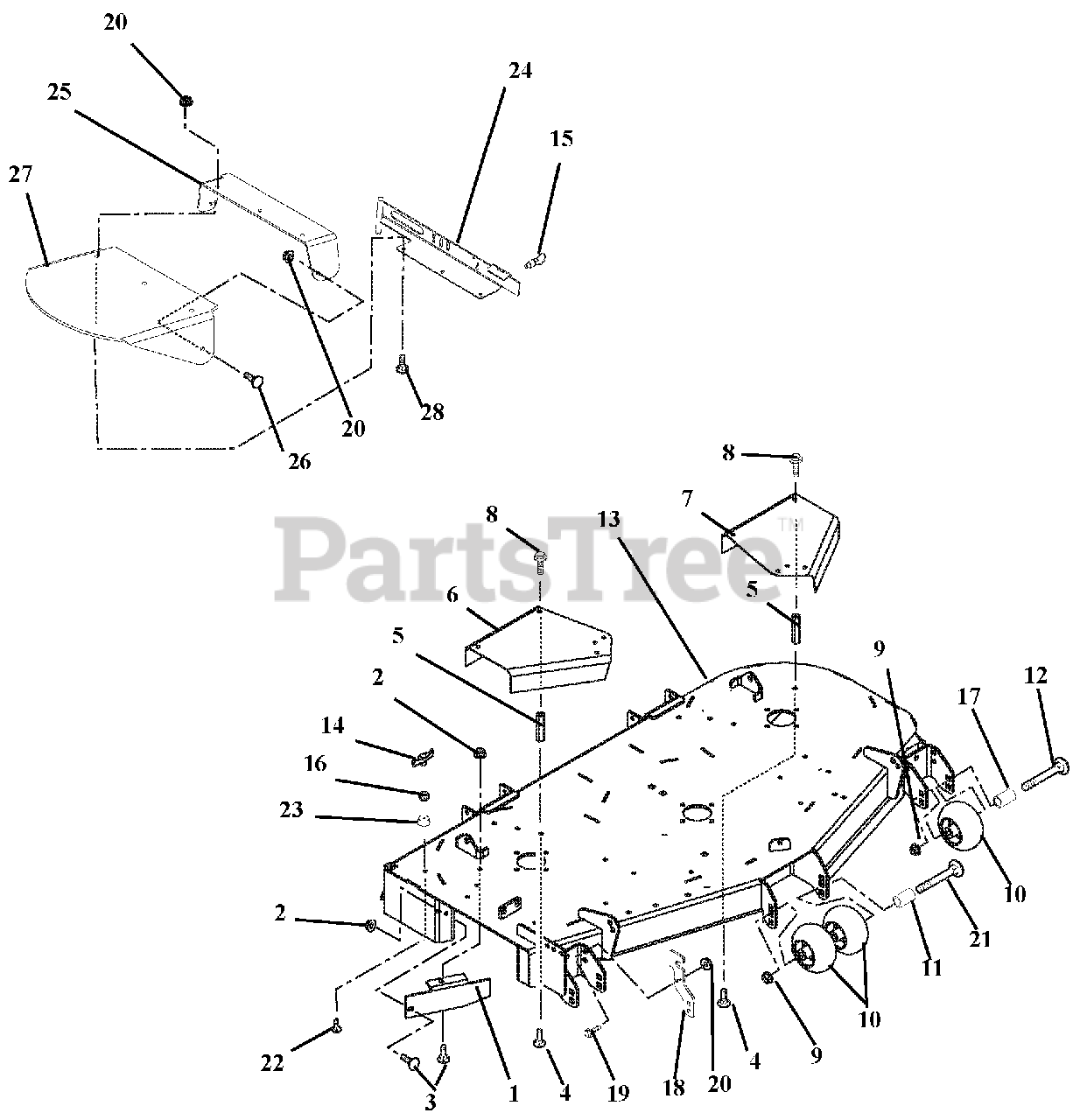

992121 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

Deck, Discharge Chute, Anti-Scalp Rollers, & Belt Covers Parts Diagram

  • Title

1

Gravely 00440853

52" DISCHARGE BAFFLE - RED

Note: (992125)

$38.99

$

Usually ships in 4-12 days

0

Gravely 00374153

60" DISCHARGE BAFFLE - RED

Note: (992121, 136, 137)

$29.99

$

In Stock, Qty 6

0

Gravely 00442453

72" DISCHARGE BAFFLE - RED

Note: (992123, 126, 138)

$56.99

$

In Stock, only 1 left!

0

2

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06216100

BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 06200002

BLT,RDHDSQNK .31-18X.75 LOCTIT
(Superseded to 06200425)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 07000027

NUT, COUPLING .31-18 X 3.00

$29.99

$

In Stock, Qty 17

0

6

Gravely 00439453

48"-52" RH SPNDL SHV GUARD-RED

Note: (992125)(Serial Number 000699 and Below)

$49.99

$

Usually ships in 4-12 days

0

Gravely 00589553

52"RH SPINDLE SHEAVE GUARD-RED

Note: (992125) (Serial Number 000700 and Above)

$76.99

$

Usually ships in 4-12 days

0

Gravely 00370653

60"RH SPINDLE SHEAVE GUARD-RED

Note: (992121, 136, 137)

$70.99

$

In Stock, only 4 left!

0

Gravely 00378053

72"RH SPINDLE SHEAVE GUARD-RED

Note: (992123, 126, 138)

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 00438953

44"-52" LH SPNDL SHV GUARD-RED

Note: (992125)

$105.99

$

Usually ships in 4-12 days

0

Gravely 00371453

60"LH SPINDLE SHEAVE GUARD-RED

Note: (992121, 136, 137)

$58.99

$

In Stock, Qty 6

0

Gravely 00377953

72"LH SPINDLE SHEAVE GUARD-RED

Note: (992123, 126, 138)

$96.99

$

Usually ships in 4-12 days

0

8

Gravely 07000018

BOLT, SEMS .31-18 X .62

$3.99

$

In Stock, Qty 20+

0

9

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00473600

WHEEL, ANTI SCALP
(Superseded to 03905900)

$13.99

$

In Stock, Qty 20+

0

11

Gravely 00473800

SPACER, .510X.625X6.50

$22.99

$

In Stock, Qty 20+

0

12

Gravely 06225900

BLT-RDHDSQNK .50-13X5.00 GR5YZ
(Superseded to 06200505)

$

$

Not available

13

Gravely 00439553

52"SIDE DISCH DCK WMT-RED(200)
(Superseded to 59224300)

Note: (992125)

$1345.99

$

Usually ships in 4-12 days

0

Gravely 00452853

60"SIDE DISCH DCK WMT-RED(200)
(Superseded to 59224200)

Note: (992121, 136, 137)

$1345.99

$

Usually ships in 4-12 days

0

Gravely 00376753

WMT, 72" S.D. MOWER DECK

Note: (992123, 126, 138)

$1825.99

$

Usually ships in 4-12 days

0

14

Gravely 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.99

$

In Stock, Qty 20+

0

15

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0

16

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

17

Gravely 00473700

SPACER, .510X.625X3.35

$19.99

$

In Stock, Qty 20+

0

18

Gravely 00474753

CHUTE STORAGE BRACKET - RED

$29.99

$

Usually ships in 4-12 days

0

19

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 06206400

BLT-RDHDSQNK .50-13X8.50 G5YZ
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

22

Gravely 06212100

BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

23

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

24

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (992121, 125, 136, 137))

$131.99

$

In Stock, only 1 left!

0

Gravely 00472653

72" DISCH CHUTE MTG WMT - RED
(Superseded to 00980653)

Note: (992123, 126, 138)

$168.99

$

Usually ships in 4-12 days

0

25

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

26

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

28

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0
