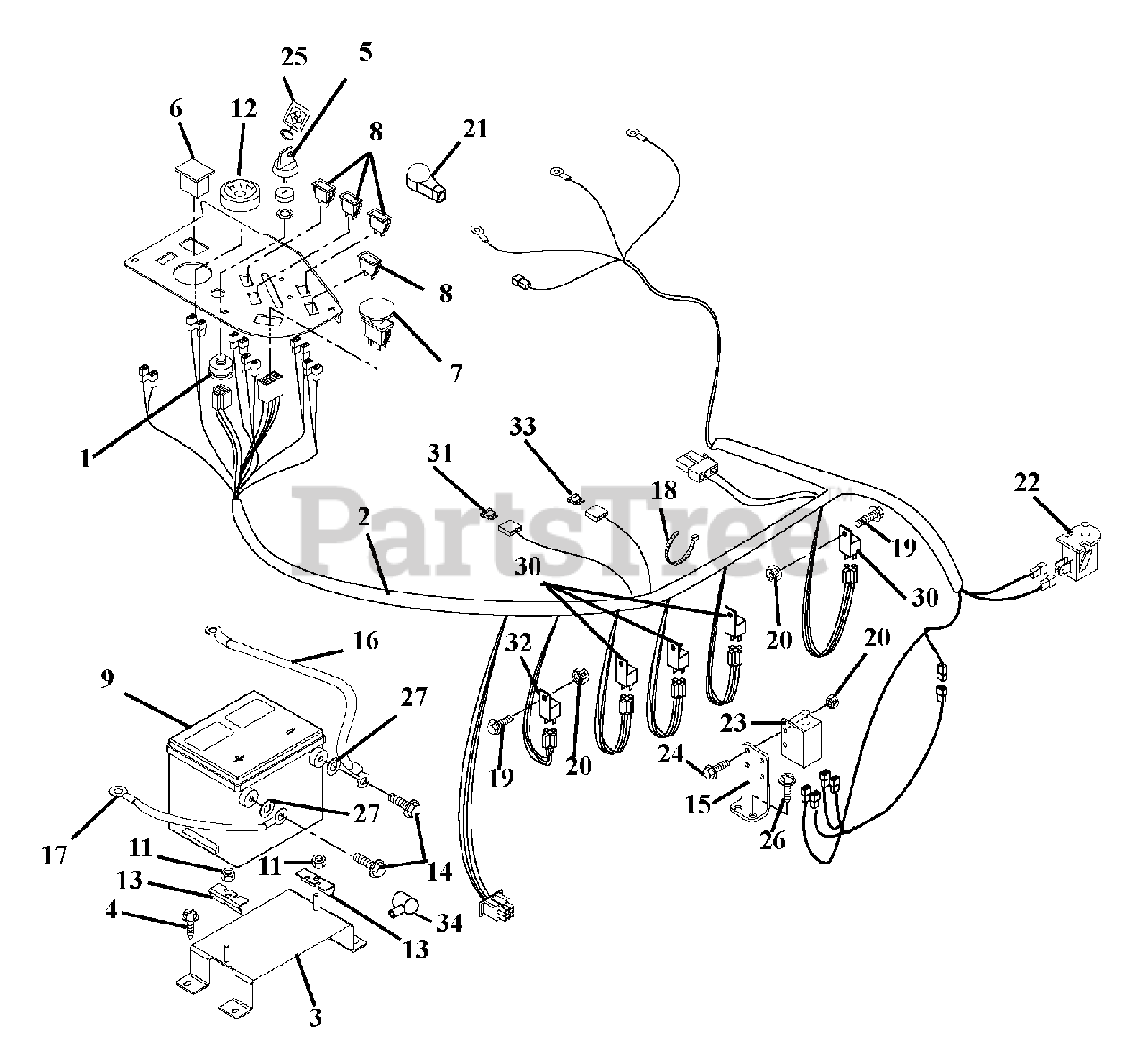

992121 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

2

Gravely 03286500

HARNESS-MZ HORIZ L/C DIESEL

$355.99

$

Usually ships in 4-12 days

0

3

Gravely 09266551

WMT, BATTERY SUPPORT

$

$

Not available

4

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 2 left!

0

6

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$25.99

$

In Stock, Qty 15

0

7

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

8

Gravely 050673

LIGHT, INDICATOR (RED)
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0

9

Gravely 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

10

Gravely 09003300

SWITCH,BLANK

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09080200

GAUGE, TEMPERATURE

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

BRKT, BATTERY HOLD-DOWN

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Gravely 09275851

MOUNT, SAFETY SWITCH

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 09412100

CABLE, POS BATT 4 GA X 45

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

$38.99

$

Usually ships in 4-12 days

0

18

Gravely 036313

CABLE TIE LG 5-1/2
(Superseded to 07517300)

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

20

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0

22

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (Included with Seat)

$9.99

$

In Stock, Qty 20+

0

23

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 19

0

24

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

25

Gravely 00457400

KEY CHAIN

$

$

Not available

26

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435700

WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 21542100

FUSE, ATO 15 AMP

$

$

Not available

29

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

30

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

31

Gravely 21542000

FUSE, ATO 30 AMP
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

32

Pre-Heat Timer

Note: (Included with Engine)

$

$

Not available

33

Gravely 21542200

FUSE, ATO 60 AMP
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

34

Gravely 07533200

BOOT, EYELET TERMINAL

$3.99

$

In Stock, Qty 18

0
