992121 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Hood and Bumper Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

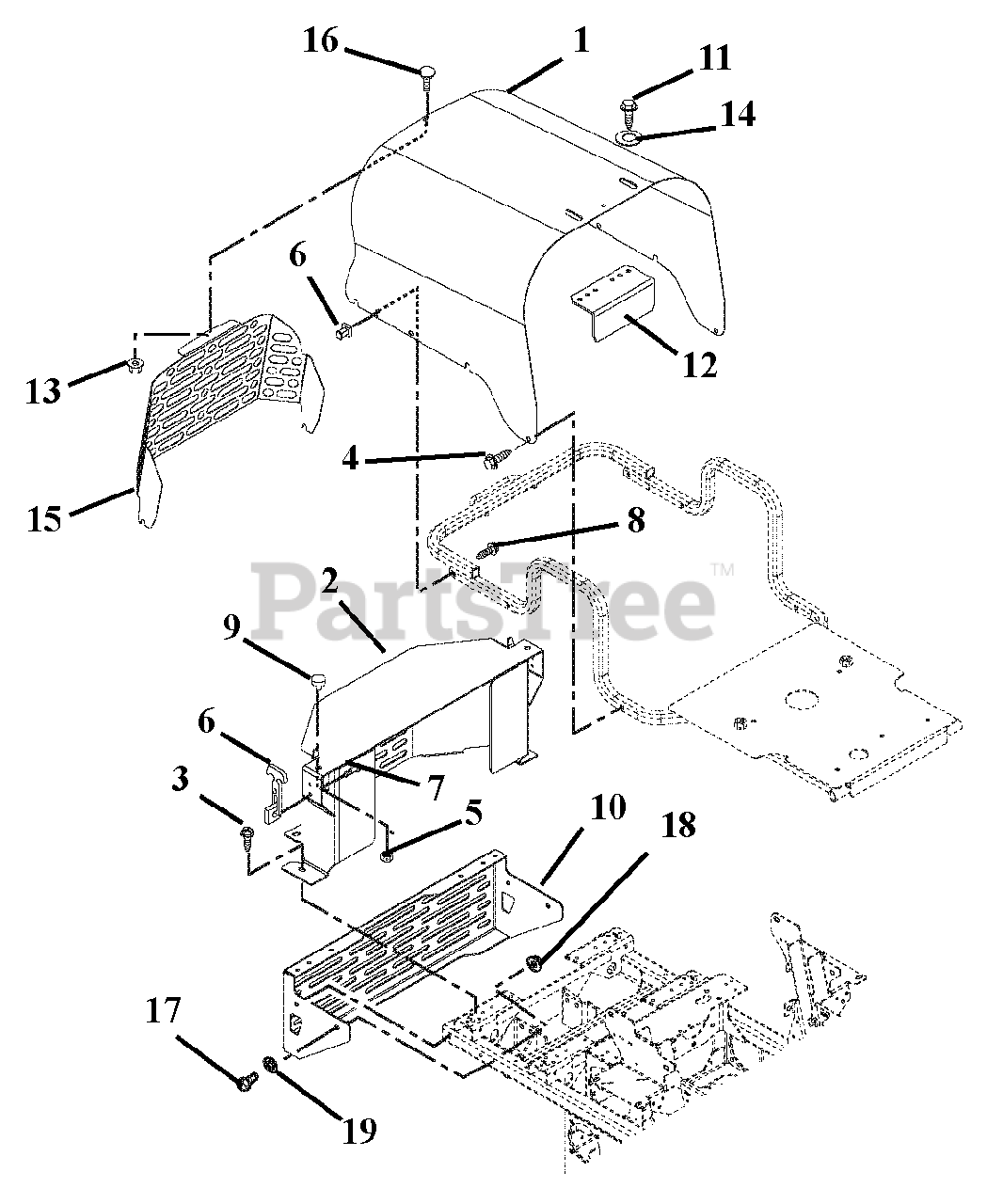

Hood and Bumper Parts Diagram

  • Title

1

Gravely 09278853

L/C HOOD - RED

$435.99

$

Usually ships in 4-12 days

0

2

Gravely 00165251

DIESEL BELT GUARD - BLACK

$171.99

$

Usually ships in 4-12 days

0

3

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07412900

SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09079500

LATCH, RUBBER

$35.99

$

In Stock, Qty 12

0

7

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 06118200

SCR-MCH 10-24X1.50 HWH YWZC

$2.99

$

Usually ships in 4-12 days

0

9

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

10

Gravely 00463951

WMT,REAR DIESEL BUMPER-GRAVELY

$

$

Not available

11

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

12

Gravely 00160353

GUARD, RADIATOR CAP

$

$

Not available

13

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.49

$

In Stock, Qty 15

0

14

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 09281151

L/C HOOD GUARD - BLACK

$271.99

$

Usually ships in 4-12 days

0

16

Gravely 06220600

BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$1.49

$

In Stock, Qty 11

0

17

Gravely 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0
