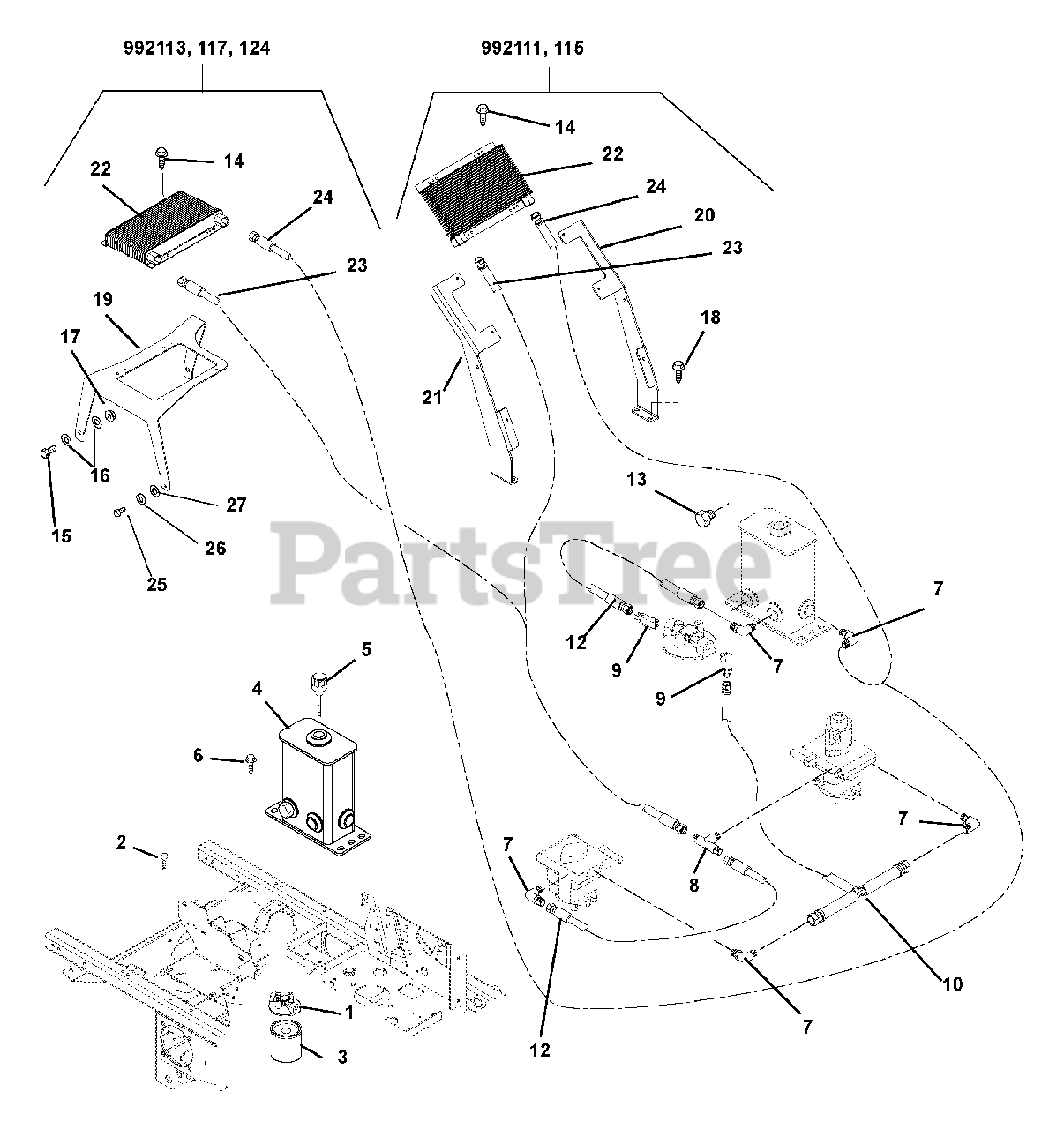

992124 (PM 272H XDZ) - Gravely Pro-Master 72" Zero-Turn Mower, 26hp Kawasaki (SN: 000101 & Above) Hydraulic Tank, Filter, Pumps, Cooler & Hoses Parts Diagram

Pro-Master 72" Zero-Turn Mower, 26hp Kawasaki

Hydraulic Tank, Filter, Pumps, Cooler & Hoses Parts Diagram

  • Title

1

Gravely 09419900

Head, Filter

$

$

Not available

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy Grade 5
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 09414200

Oil Filter
(Superseded to 03931900)

$30.99

$

In Stock, Qty 8

0

4

Gravely 00161051

Weldment, Hydraulic Tank

$

$

Not available

5

Gravely 00346100

Hydraulic Tank Dipstick
(Superseded to 09273900)

$85.99

$

In Stock, only 2 left!

0

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow, Steel M8F-M80

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 07069500

Fitting, Hydraulic Tee M80-M80-M80

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 07069900

Fitting, Hydraulic 45° M80-M120

$30.99

$

Usually ships in 4-12 days

0

10

Gravely 00364800

Hose, Tee Assembly, .50

$157.99

$

Usually ships in 4-12 days

0

11

Gravely 00364600

Hose, Hydraulic

$102.99

$

Usually ships in 4-12 days

0

12

Gravely 00364700

Hose, Hydraulic

$78.99

$

Usually ships in 4-12 days

0

13

Gravely 07000006

Plug, Hex, .75-16 O-Ring

$10.99

$

Usually ships in 4-12 days

0

14

Gravely 07412000

Screw-Tapping .25-20 x .375 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 05971800

Bolt-Hex .50-13 x .75 Grade 5 (992113, 117, 124)

Note: (992113, 117, 124)

$2.99

$

In Stock, only 1 left!

0

16

Gravely 06441900

Washer-Flat-Steel .531 x 1.06 x .095 (992113, 117, 124)
(Superseded to 06401015)

Note: (992113, 117, 124)

$1.49

$

In Stock, Qty 9

0

17

Gravely 06500010

Nut .50-13 Nyloc Flange (992113, 117, 124)
(Superseded to 06500810)

Note: (992113, 117, 124)

$1.99

$

In Stock, Qty 20+

0

18

Gravely 07412900

Screw-Tapping .38-16 x .50 Hex Washer Head (992111, 115)
(Superseded to 07400126)

Note: (992111, 115)

$1.99

$

In Stock, Qty 13

0

19

Gravely 00486351

Bracket-Oil Cooler-Kawasaki Liquid Cooled (992113, 117, 124)

Note: (992113, 117, 124)

$

$

Not available

20

Gravely 00464451

Bracket, Vertical, Air Cooler Mounting-Left Hand (992111, 115)

Note: (992111, 115)

$54.99

$

Usually ships in 4-12 days

0

21

Gravely 00464551

Bracket, Vertical, Air Cooler Mounting-Right Hand (992111, 115)

Note: (992111, 115)

$

$

Not available

22

Gravely 00453400

Cooler, Oil Long MFG# 703

$

$

Not available

23

Gravely 00467300

Hose, Hydraulic .50-24-0K M08NO-F08F9 (992111, 115)

Note: (992111, 115)

$

$

Not available

23

Gravely 00467000

Hose, Hydraulic .50-31-0K M08NO-F08FO (992113, 117, 124)

Note: (992113, 117, 124)

$

$

Not available

24

Gravely 00467200

Hose, Hydraulic .50-24-0K M08NO-F08F9 (992111, 115)

Note: (992111, 115)

$

$

Not available

24

Gravely 00466900

Hose, Hydraulic .50-25-0K M08N0-F08FO (992113, 117, 124)

Note: (992113, 117, 124)

$

$

Not available

25

Gravely 05974900

Bolt-Hex M6-1.00 x 20 (992113, 117, 124)

Note: (992113, 117, 124)

$

$

Not available

26

Gravely 06308400

Washer-Lock .25 x .062 (992113, 117, 124)
(Superseded to 06401009)

Note: (992113, 117, 124)

$0.99

$

In Stock, Qty 11

0

27

Gravely 06437300

Washer-Flat-Steel .281 x .62 x .065 (992113, 117, 124)
(Superseded to 06401001)

Note: (992113, 117, 124)

$0.99

$

In Stock, only 3 left!

0
