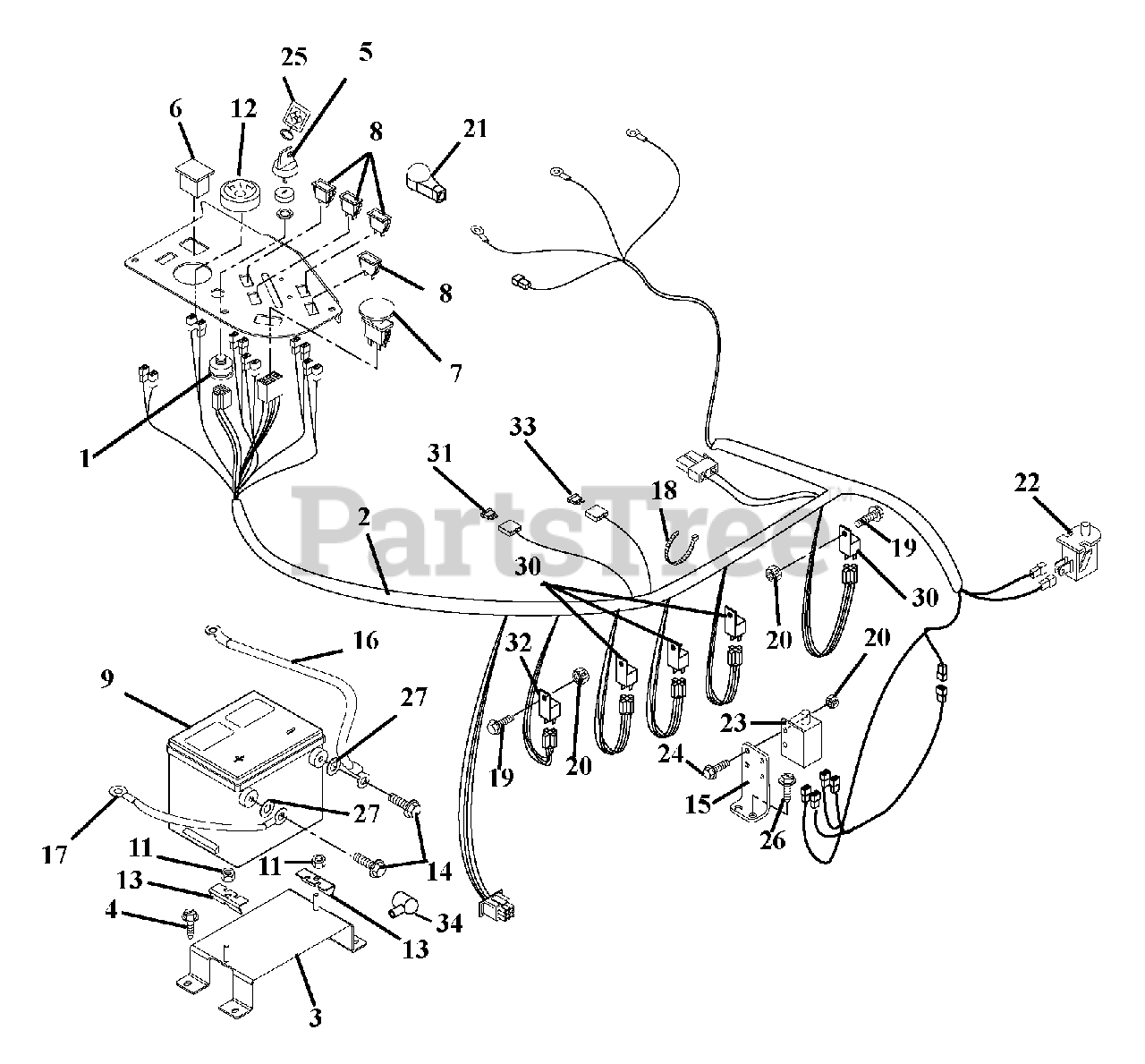

992136 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

2

Gravely 03286500

Harness, Wiring

$355.99

$

Usually ships in 4-12 days

0

3

Gravely 09266551

Weldment, Battery Support

$

$

Not available

4

Gravely 07415400

Screw-Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09287000

Key-with Cap

$17.99

$

In Stock, Qty 20+

0

5

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 00456600

Hour Meter
(Superseded to 09497400)

$25.99

$

In Stock, only 3 left!

0

7

Gravely 01545600

Switch-Clutch With Retainer Ring

$27.99

$

In Stock, Qty 20+

0

8

Gravely 050673

Light-Indicator
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

9

Gravely 00525500

Battery with Tube

$

$

Not available

10

Gravely 09003300

Switch, Blank

$5.49

$

Usually ships in 4-12 days

0

11

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 09080200

Gauge, Temperature

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09266600

Bracket, Battery Hold-Down

$18.99

$

Usually ships in 4-12 days

0

14

Gravely 00526400

Bolt-Hex .25-20 x .75 Grade 5

$

$

Not available

15

Gravely 09275851

Mount, Safety Switch

$22.99

$

Usually ships in 4-12 days

0

16

Gravely 09412100

Positive Cable

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 09278100

Cable, Negative Battery

$38.99

$

Usually ships in 4-12 days

0

18

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

19

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

20

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 07533200

Eyelet Terminal Boot

$3.99

$

In Stock, Qty 9

0

22

Gravely 02754100

Switch, Snap Mounting (N.O.)

Note: (Included with Seat)

$9.99

$

In Stock, Qty 20+

0

23

Gravely 03606600

Switch-Single Pole

$17.99

$

In Stock, Qty 20+

0

24

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

25

Gravely 00457400

Key Chain

$

$

Not available

26

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

27

Gravely 06435700

Washer-Flat-Steel .406 x 1.00 x ..083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 21542100

Fuse, ATO 15 Amp

$

$

Not available

29

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

30

Gravely 00432100

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

31

Gravely 21542000

Fuse, ATO 30 Amp
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

32

NA

Pre-Heat Timer

Note: (Included with Engine)

$

$

Not available

33

Gravely 21542200

Fuse, ATO 60 Amp
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

34

Gravely 07533200

Boot, Eyelet Terminal

$3.99

$

In Stock, Qty 9

0
