992136 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Engine, Muffler & Air Filter Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

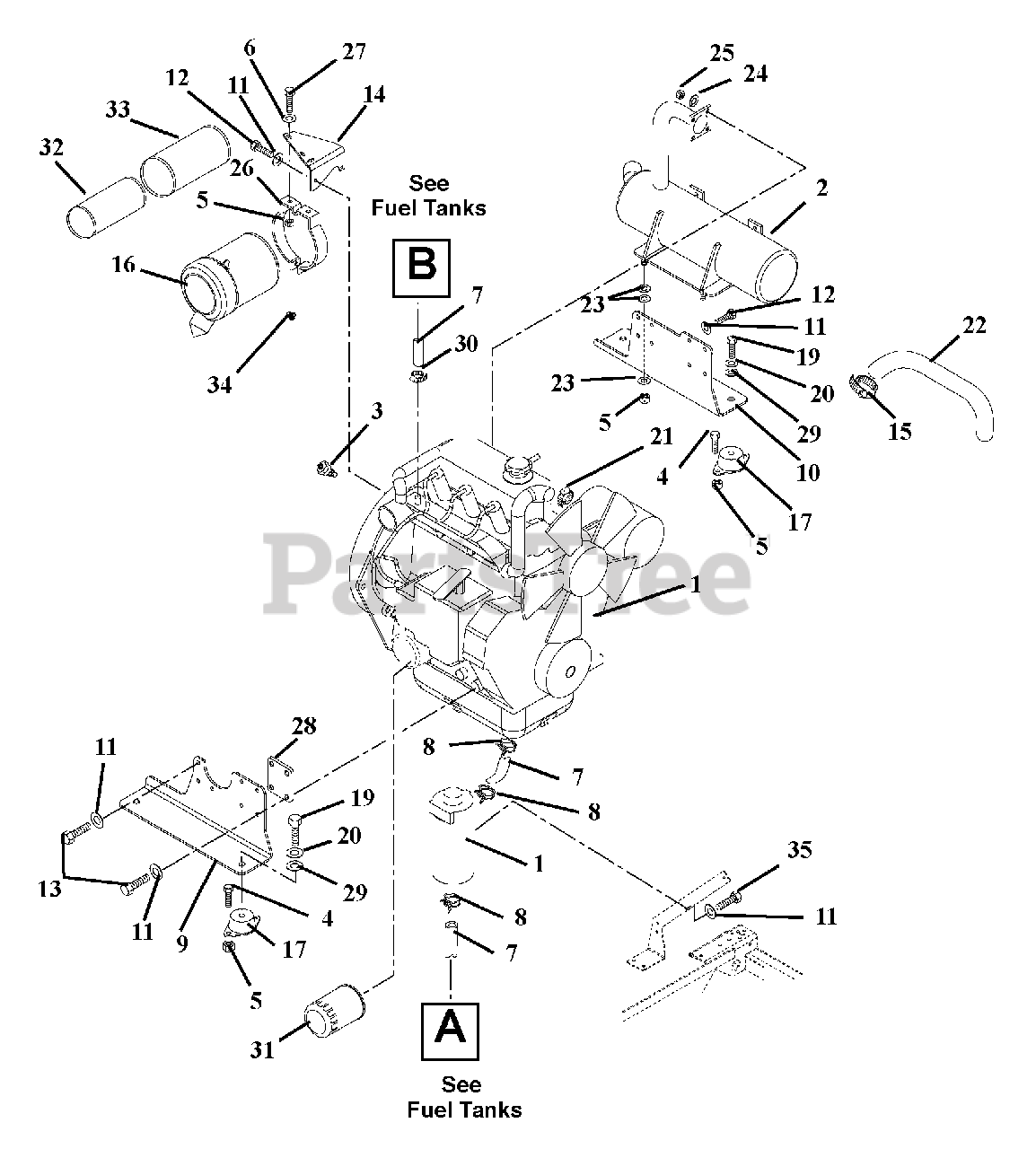

Engine, Muffler & Air Filter Parts Diagram

  • Title

1

Gravely 08270300

Engine, 27HP Daihatsu Diesel

Note: (950D) (992121, 125, 126, 136, 137)

$

$

Not available

1

Gravely 08267100

Engine, 31HP Dahatsu Diesel

Note: (950DT) (992123, 138)

$

$

Not available

2

Gravely 09297800

Muffler

Note: (992121, 125, 126, 136, 137)

$619.99

$

Usually ships in 4-12 days

0

2

Gravely 09265900

Muffler

Note: (992123, 138)

$573.99

$

Usually ships in 4-12 days

0

3

Gravely 09263300

Sender, Temperature

$57.99

$

Usually ships in 4-12 days

0

4

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

7

Gravely 00922600

Gas Line, Bulk .31" ID

$

$

Not available

8

Gravely 06947900

Hose, Clamp

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 09265251

Mount, Engine Right Hand

$

$

Not available

10

Gravely 09265351

Mount, Engine Left Hand

$84.99

$

Usually ships in 4-12 days

0

11

Gravely 06308600

Washer, Lock .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 05973300

Bolt, Hex M8-1.25 x 20
(Superseded to 05901628)

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 05964900

Bolt, Hex M8 x 1.25 x 25 Grade 8

$2.99

$

Usually ships in 4-12 days

0

14

Gravely 09295051

Bracket, Air Cleaner

$84.99

$

In Stock, only 1 left!

0

15

Gravely 06900005

Clamp, 2.50" Dia. Hose
(Superseded to 06934700)

$3.99

$

Usually ships in 4-12 days

0

16

Gravely 09257500

Assembly, Air Cleaner
(Superseded to 03782600)

$181.99

$

Usually ships in 4-12 days

0

17

Gravely 05034800

Mount, Engine

$26.99

$

Usually ships in 4-12 days

0

18

Gravely 05946900

Bolt, Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

19

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06307300

Washer, Locking .50 x .125 Regular
(Superseded to 06300115)

$1.49

$

In Stock, Qty 10

0

21

Gravely 06922200

Clamp, Hose 1.50 x .81 x 1.42

$6.49

$

Usually ships in 4-12 days

0

22

Gravely 09295400

Hose, Air Cleaner

Note: (992121, 125, 126, 136, 137)

$

$

Not available

22

Gravely 00172600

Hose, Air Cleaner

Note: (992123, 138)

$

$

Not available

23

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

24

Gravely 06308600

Washer, Locking .31 x .078 Regular
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 06538600

Nut, Hex M8-1.25

$2.49

$

Usually ships in 4-12 days

0

26

Gravely 09257600

Bracket, Air Cleaner Mount

$89.99

$

Usually ships in 4-12 days

0

27

Gravely 06435700

Washer, Flat Steel .38 x .875 x .083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 09277251

Spacer, Engine Mounting

$

$

Not available

29

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

30

Gravely 06948200

Hose Clamp

$

$

Not available

31

Gravely 21539000

Oil Filter

$

$

Not available

32

Gravely 21536900

Element, Inner Safety

$29.99

$

In Stock, only 4 left!

0

33

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

34

Gravely 07012700

Plug, Pipe .125-27

$4.99

$

Usually ships in 4-12 days

0

35

Gravely 05975900

Bolt, Hex M6-1 x 16
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0
