992136 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu LC

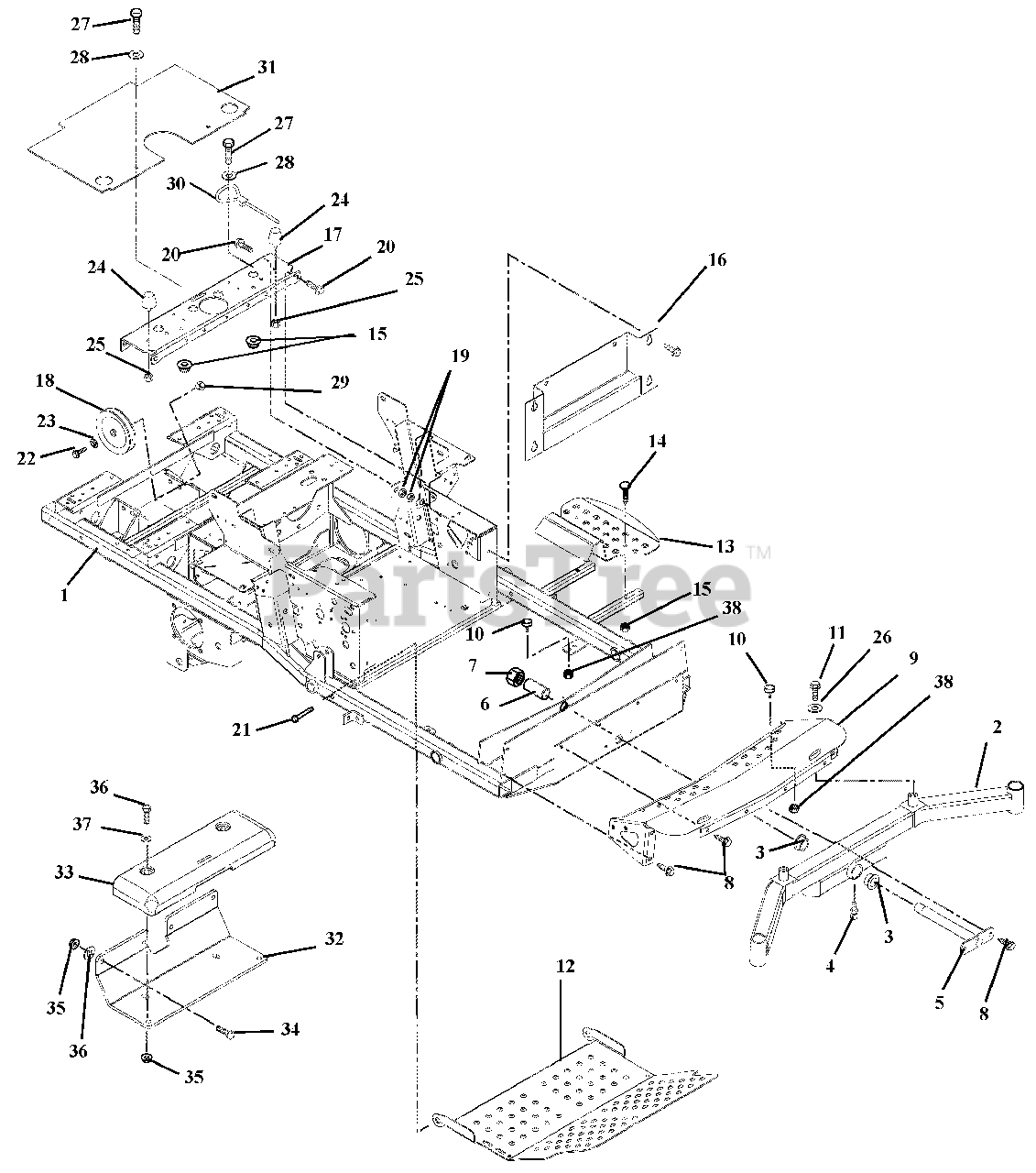

Frame Parts Diagram

  • Title

1

Gravely 00443251

Weldment, Frame

$

$

Not available

2

Gravely 00450453

Weldment, Front Axle

$861.99

$

Usually ships in 4-12 days

0

3

Gravely 05520100

Bushing, Flange 1.020 x 1.385 x .75 x 1.75

$11.99

$

In Stock, Qty 20+

0

4

Gravely 07012600

Fitting, Lube .25-28 x .256
(Superseded to 07001806)

$

$

Not available

5

Gravely 09232000

Pin, Axle

$70.99

$

In Stock, Qty 5

0

6

Gravely 09231900

Spacer

$22.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

Nut, Locking Nylon 1.0-14

$10.99

$

In Stock, only 2 left!

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00444153

Weldment, Axle Cover
(Superseded to 59209300)

$180.99

$

In Stock, only 1 left!

0

10

Gravely 07533600

Button, Bumper

$12.99

$

In Stock, only 3 left!

0

11

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.99

$

In Stock, only 2 left!

0

12

Gravely 00444053

Panel, Inspection

$128.99

$

Usually ships in 4-12 days

0

13

Gravely 09231251

Step, Ingress

$

$

Not available

14

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

15

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

16

Gravely 00483153

Plate, Kick

$79.99

$

Usually ships in 4-12 days

0

17

Gravely 09275051

Channel, Cross

$64.99

$

Usually ships in 4-12 days

0

18

Gravely 07328000

Pulley, Idler

$110.99

$

In Stock, Qty 8

0

19

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 3 left!

0

20

Gravely 07049900

Bolt, Serrated Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

22

Gravely 05961000

Bolt, Hex .50-13 x 2.25 Grade 5
(Superseded to 05901835)

$3.99

$

In Stock, Qty 5

0

23

Gravely 06436600

Washer, Flat Steel .505 x .88 x .072
(Superseded to 06401126)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 07533000

Bumper

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 06530400

Nut, Spin Lock-Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 06435200

Washer, Flat Steel .064 x 1.810 x .250
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

27

Gravely 05946900

Bolt, Hex .31-18 X 1.00 Grade 5
(Superseded to 05901701)

$1.99

$

In Stock, only 4 left!

0

28

Gravely 06446300

Washer, Flat Steel .344 x 1.125 x .135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 16

0

29

Gravely 06543600

Nut, Locking Top Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06900010

Cable, Seat Prop

$51.99

$

Usually ships in 4-12 days

0

31

Gravely 00436900

Guard, Grass

$47.99

$

Usually ships in 4-12 days

0

32

Gravely 00475351

Bracket, Weight (992125)

Note: (992125)

$224.99

$

Usually ships in 4-12 days

0

33

Gravely 00172000

Weight, Cast Iron (992125)

Note: (992125)

$303.99

$

Usually ships in 4-12 days

0

34

Gravely 05947100

Bolt-Hex .50-13 x 1.00 Grade 5 (992125)
(Superseded to 05901715)

Note: (992125)

$2.99

$

In Stock, Qty 7

0

35

Gravely 06543600

Nut, Locking Top Flange .50-13 (992125)
(Superseded to 06500907)

Note: (992125)

$1.99

$

In Stock, Qty 20+

0

36

Gravely 05962300

Bolt, Hex .50-13 x 4.50 Grade 5 (992125)
(Superseded to 05901932)

Note: (992125)

$6.99

$

In Stock, only 2 left!

0

37

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095 (992125)
(Superseded to 06401015)

Note: (992125)

$1.49

$

In Stock, only 4 left!

0

38

Gravely 06530400

Nut, Spin Lock, Flange .312-18
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0
