992140 (ZT 2044 XLP) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 002000 & Above) Brakes Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

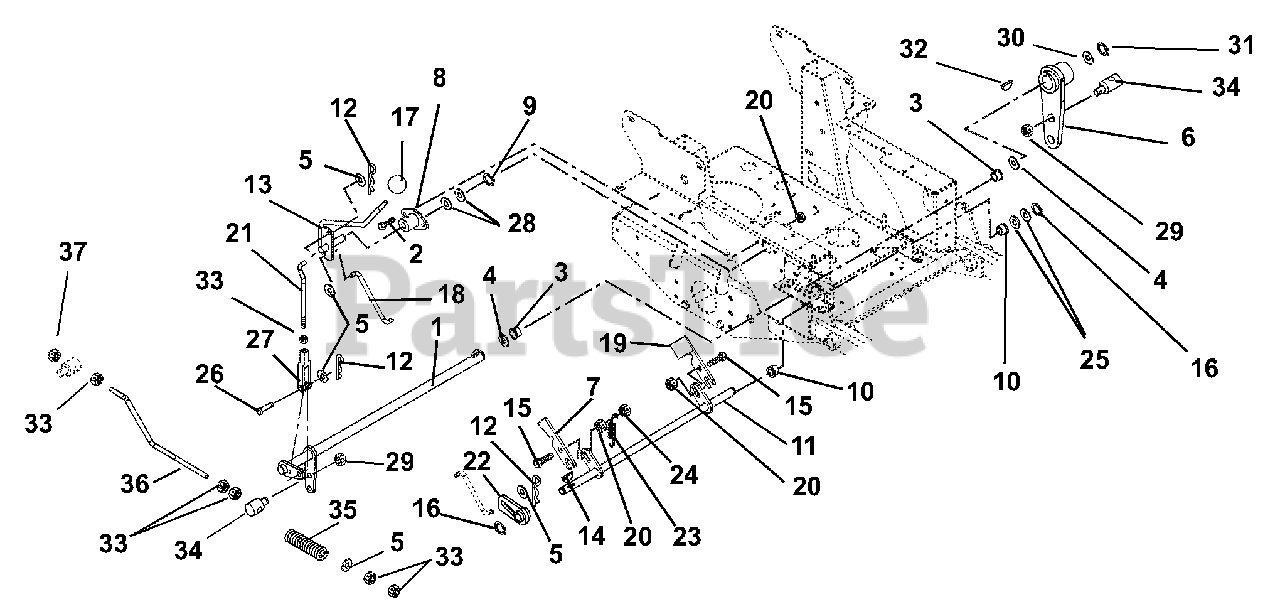

Brakes Parts Diagram

  • Title

1

Gravely 00373300

WMT, BRAKE PIVOT

$

$

Not available

2

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.49

$

In Stock, Qty 15

0

4

Gravely 06439000

WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 00258600

WMT, BRAKE ARM

$79.99

$

Usually ships in 4-12 days

0

7

Gravely 09267700

SLIDE, INTERLOCKING BRAKE

$26.99

$

Usually ships in 4-12 days

0

8

Gravely 05534700

BUSHING, FLANGED
(Superseded to 05534100)

$47.99

$

In Stock, only 4 left!

0

9

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 20+

0

11

Gravely 09284000

WMT, MECHANICAL BRAKE

$105.99

$

Usually ships in 4-12 days

0

12

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, only 4 left!

0

13

Gravely 00277400

WMT, BRAKE ACTUATING

$87.99

$

Usually ships in 4-12 days

0

14

Gravely 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 1 left!

0

15

Gravely 06219200

BLT-RDHDSQNK .31-18X1.25 G5YZ
(Superseded to 06200407)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 20+

0

17

Gravely 07505200

KNOB-STEERING LOCK

$22.99

$

In Stock, only 3 left!

0

18

Gravely 09268400

LINKAGE, BRAKE ACTUATING

$30.99

$

Usually ships in 4-12 days

0

19

Gravely 09275900

INTERLOCK, SAFETY SWITCH

$17.99

$

Usually ships in 4-12 days

0

20

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 09299100

LINKAGE, BRAKE COMPACT-Z

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 09268100

WMT, PARKING BRAKE HUB

$194.99

$

Usually ships in 4-12 days

0

23

Gravely 08328700

SG-TENS .061 X .50 X 3.0 WLD 4

$21.99

$

In Stock, only 2 left!

0

24

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

25

Gravely 06439200

WSHR-FL-STL .505X1.00X.062YWZC
(Superseded to 06401112)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06814900

PIN-CLEV .38X1.25 YWZC

$4.99

$

In Stock, only 2 left!

0

27

Gravely 08800400

CLEVIS, .38-24 ADJ.

$11.99

$

Usually ships in 4-12 days

0

28

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$2.99

$

In Stock, only 1 left!

0

29

Gravely 06500011

NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 13

0

30

Gravely 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 20+

0

31

Gravely 05714600

RG-RTNG-EXT .689X.078

$2.99

$

In Stock, only 1 left!

0

32

Gravely 06608700

KEY-WDRF .19X.75 HRD #9

$1.49

$

In Stock, Qty 20+

0

33

Gravely 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 3 left!

0

34

Gravely 09267300

PIN, PIVOT/TRUNNION

$7.49

$

In Stock, only 2 left!

0

35

Gravely 08328500

SG-COMP .142 X .710 X 2.00

$21.99

$

Usually ships in 4-12 days

0

36

Gravely 00370200

LINKAGE, BRAKE CZ

$

$

Not available

37

Gravely 06539400

NUT-LK-CTR .375-24 YWZC
(Superseded to 06500929)

$2.49

$

Usually ships in 4-12 days

0
