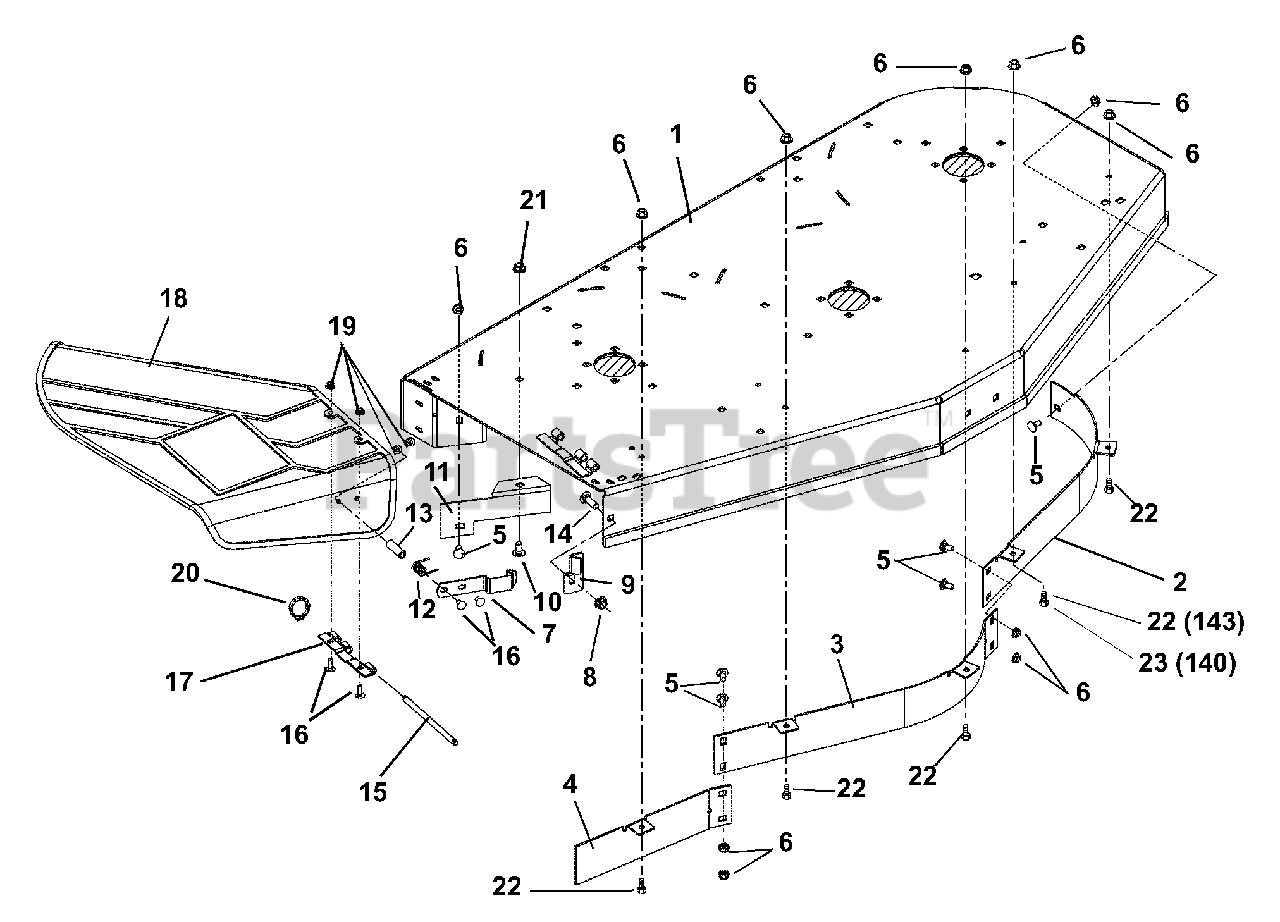

992140 (ZT 2044 XLP) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 002000 & Above) Deck, Discharge Chute And Baffles Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Gravely 00375051

WMT, DECK 48" CONSUMER CZ
(Superseded to 59224500)

Note: (143)

$830.99

$

Usually ships in 4-12 days

0

Gravely 00374051

WMT, DECK 44" CONSUMER CZ

Note: (140)

$

$

Not available

2

Gravely 01574051

BAFFLE - LEFT FRONT - 48"

Note: (143)

$81.99

$

In Stock, only 1 left!

0

Gravely 01572451

BAFFLE - LEFT FRONT - 44"

Note: (140)

$101.99

$

Usually ships in 4-12 days

0

3

Gravely 01574151

BAFFLE - CENTER FRONT - 48"

Note: (143)

$68.99

$

Usually ships in 4-12 days

0

Gravely 01572551

BAFFLE - CENTER FRONT - 44"

Note: (140)

$77.99

$

In Stock, only 2 left!

0

4

Gravely 01574251

BAFFLE - RIGHT FRONT - 48"

Note: (143)

$62.99

$

In Stock, only 1 left!

0

Gravely 01572651

BAFFLE - RIGHT FRONT - 44"

Note: (140)

$38.99

$

In Stock, only 1 left!

0

5

Gravely 06212200

BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 01597751

FLAT SPRING

$21.99

$

In Stock, only 2 left!

0

8

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 01599151

BRACKET, CHUTE LOCK

$35.99

$

Usually ships in 4-12 days

0

10

Gravely 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, Qty 10

0

11

Gravely 01574651

DEFLECTOR-44"/48"

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 08307200

SG-TORS .095X.50X 1.0

$21.99

$

In Stock, only 4 left!

0

13

Gravely 02202900

BSHG-SLV .334 X .502 X 1.437

$6.49

$

In Stock, only 4 left!

0

14

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

15

Gravely 03624200

PIN

$54.99

$

In Stock, only 2 left!

0

16

Gravely 06219900

BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

18

Gravely 01585500

DEFLECTOR, CHUTE 42"

$80.99

$

In Stock, Qty 9

0

19

Gravely 06500012

NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 05706300

RG-RTNG-EXT .312X.025

$0.99

$

In Stock, Qty 11

0

21

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (143)

$1.99

$

In Stock, Qty 20+

0

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (140)

$1.99

$

In Stock, Qty 20+

0

23

Gravely 05946900

BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (140)

$1.99

$

In Stock, Qty 20+

0
