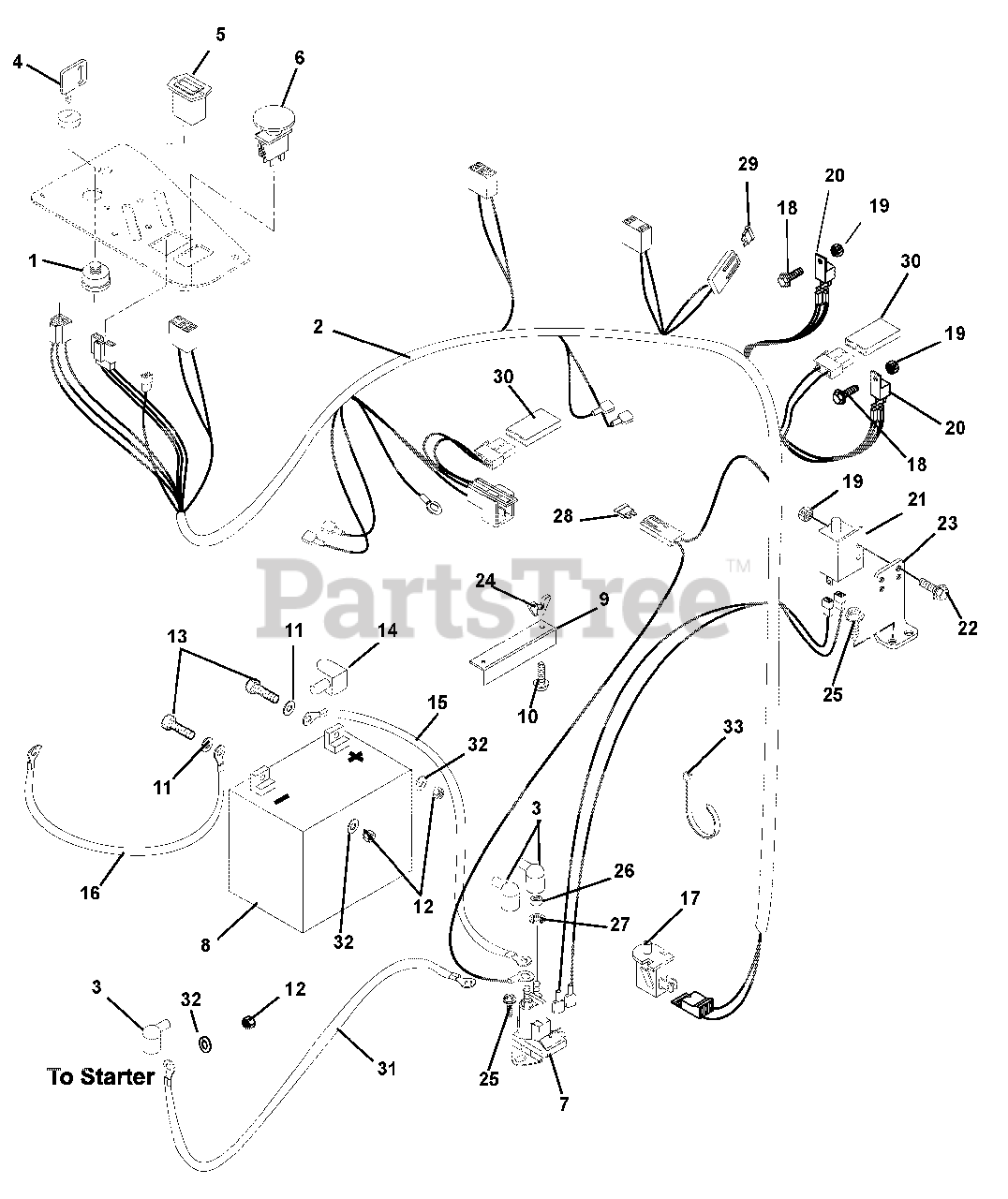

992140 (ZT 2044 XLP) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 002000 & Above) Electrical System Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Electrical System Parts Diagram

  • Title

1

Gravely 09089700

SWITCH, IGNITION
(Superseded to 04331700)

$46.99

$

In Stock, Qty 20+

0

2

Gravely 00360600

HARNESS,CZ-EYEQ REMOTE SOL.
(Superseded to 03286200)

$

$

Not available

3

Gravely 07533200

BOOT, EYELET TERMINAL

$4.99

$

In Stock, Qty 11

0

4

Gravely 09287000

KEY, W/ SHIELD

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$26.99

$

In Stock, Qty 20+

0

6

Gravely 01545600

SWITCH, CLUTCH

$28.99

$

In Stock, Qty 20+

0

7

Gravely 03679000

SOLENOID
(Superseded to 59223400)

$68.99

$

In Stock, Qty 20+

0

8

Gravely 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

9

Gravely 03494051

HOLD DOWN

$12.99

$

In Stock, only 3 left!

0

10

Gravely 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$7.49

$

In Stock, Qty 8

0

11

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06533200

NUT-HEX .25-20 YWZC
(Superseded to 06500916)

$1.49

$

In Stock, Qty 10

0

13

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 07505700

INSULATOR

$10.99

$

In Stock, only 2 left!

0

15

Gravely 00182600

CABLE, POS. BAT. 9.00"
(Superseded to 03286000)

$10.99

$

In Stock, only 1 left!

0

16

Gravely 08940600

CABLE, NEGATIVE BATTERY 24.00
(Superseded to 03288100)

$21.99

$

In Stock, only 2 left!

0

17

Gravely 02754100

SWITCH- SNAP MTG N.O.

Note: (N.O.)

$10.99

$

In Stock, Qty 19

0

18

Gravely 06116700

SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$27.99

$

In Stock, Qty 20+

0

21

Gravely 03657100

SWITCH- SINGLE POLE N.O.

$10.99

$

In Stock, Qty 13

0

22

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.99

$

In Stock, only 4 left!

0

23

Gravely 09282851

BRAKE SWITCH MOUNT - BLACK

$20.99

$

Usually ships in 4-12 days

0

24

Gravely 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$6.49

$

In Stock, Qty 20+

0

25

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$1.49

$

In Stock, Qty 20+

0

26

Gravely 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$1.99

$

In Stock, Qty 5

0

27

Gravely 06308600

WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

Note: (Included with Harness)

$4.99

$

In Stock, Qty 12

0

29

Gravely 00580600

FUSE 20AMP

$7.49

$

In Stock, Qty 9

0

30

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$14.99

$

In Stock, Qty 20+

0

31

Gravely 03492500

CABLE, STARTER .31X23.00X.31

$34.99

$

Usually ships in 4-12 days

0

32

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

33

Gravely 07517300

CABLE TIE LG 5-1/2

$1.99

$

Usually ships in 4-12 days

0
