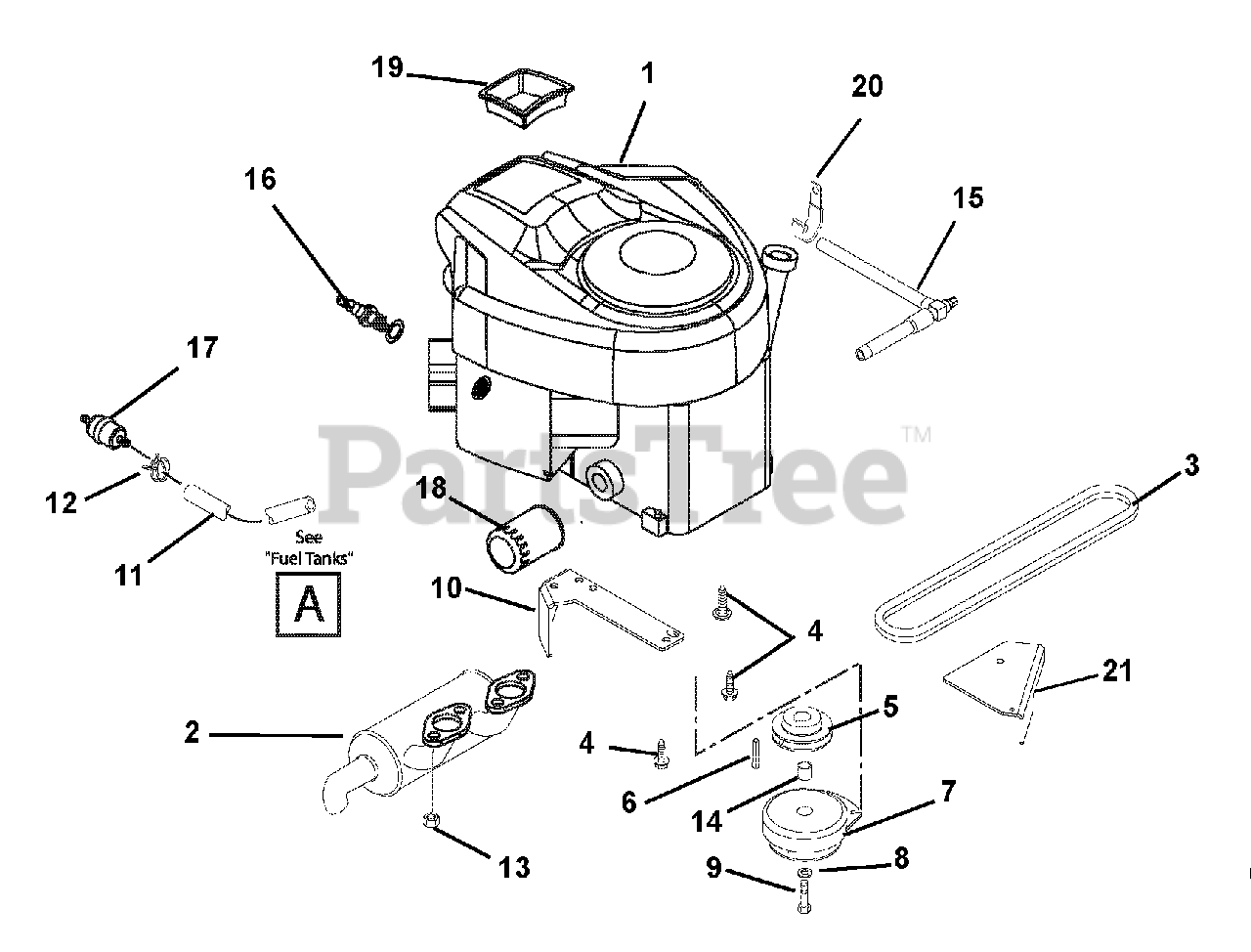

992140 (ZT 2044 XLP) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 002000 & Above) Engine And Clutch Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200102

20HP KOHLER COURAGE TWIN

Note: (140)

$

$

Not available

Gravely 08200108

23HP KOHLER COURAGE TWIN

Note: (143)

$

$

Not available

2

Gravely 00470400

MUFFLER, KOHLER TWIN

$218.99

$

In Stock, only 2 left!

0

3

Gravely 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

4

Gravely 07000104

BLT, TAP .38-16X1.5 PH TRX YZ

$3.99

$

Usually ships in 4-12 days

0

5

Gravely 07328200

PLY-V 4.OO X 1.00

$81.99

$

In Stock, only 2 left!

0

6

Gravely 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 20+

0

7

Gravely 00385500

CLUTCH, ELEC 1.000 ID 5219-55
(Superseded to 03368000)

$541.99

$

Usually ships in 4-12 days

0

8

Gravely 06309300

WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

9

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$7.49

$

In Stock, Qty 14

0

10

Gravely 00395651

WMT, CLUTCH STOP

$98.99

$

Usually ships in 4-12 days

0

11

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 20+

0

13

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

Note: (Included with item 1)

$2.49

$

In Stock, Qty 20+

0

14

Gravely 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 9

0

15

Gravely 00503200

ASSM, OIL DRAIN

$

$

Not available

16

Gravely 21541700

PLUG, SPARK

$7.49

$

In Stock, Qty 20+

0

17

Gravely 21541500

FILTER, FUEL

$13.99

$

In Stock, Qty 20+

0

18

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$21.99

$

Usually ships in 4-12 days

0

19

Gravely 21542700

FILTER, AIR-COURAGE TWIN

$29.99

$

In Stock, Qty 17

0

20

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

21

Gravely 01056551

GUARD - CLUTCH WIRE - CZ/XL

$

$

Not available
