992140 (ZT 2044 XLP) - Gravely 44" Zero-Turn Mower, 20hp Kohler (SN: 002000 & Above) Transmission Parts Diagram

44" Zero-Turn Mower, 20hp Kohler

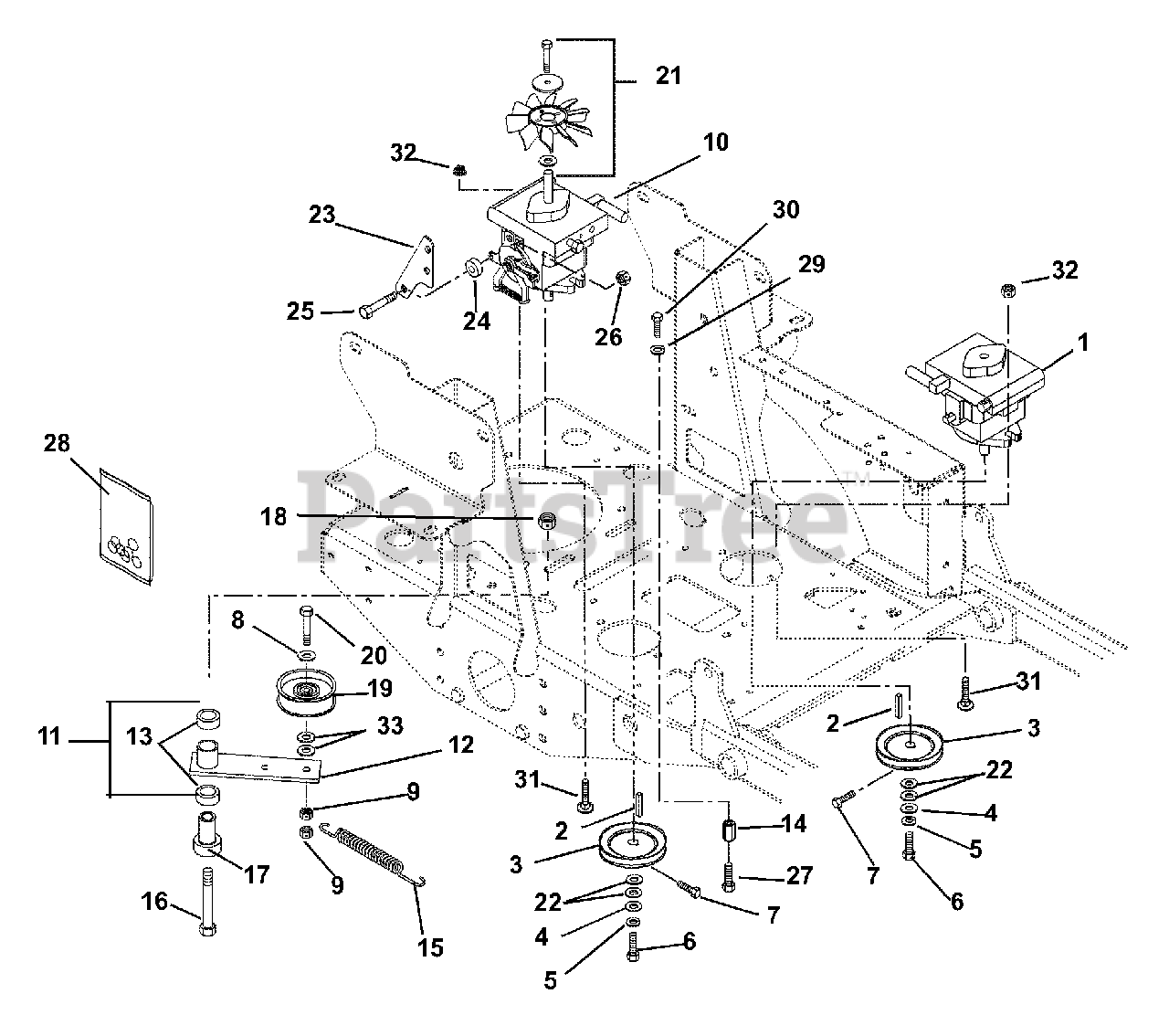

Transmission Parts Diagram

  • Title

1

Gravely 09297600

PUMP, HYD BDP-10A (LH)

$1026.99

$

Usually ships in 4-12 days

0

2

Gravely 06607500

KEY-STR 5MMX25MMX5MM

$4.99

$

In Stock, Qty 12

0

3

Gravely 07318900

SHEAVE, PUMP .592 X 4.345

$54.99

$

In Stock, Qty 10

0

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 05900017

BLT-HEX M6X1.0X12 YZ EP30

$7.49

$

Usually ships in 4-12 days

0

7

Gravely 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$2.99

$

In Stock, Qty 13

0

8

Gravely 06436200

WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06529600

NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09285200

PUMP, BDP-10A-441 (THRU SHAFT)

$1117.99

$

Usually ships in 4-12 days

0

11

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 12 & 13)

$107.99

$

In Stock, only 2 left!

0

12

Gravely 09217000

WMT, IDLER ARM GROUND DRIVE

$118.99

$

Usually ships in 4-12 days

0

13

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$11.99

$

In Stock, Qty 20+

0

14

Gravely 06533500

NUT COUPLING .375-16X1.75

$4.99

$

In Stock, Qty 8

0

15

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$29.99

$

In Stock, Qty 20+

0

16

Gravely 05960100

BLT-HEX .50-13X3.75 GR5 YWZC
(Superseded to 05901703)

$6.99

$

In Stock, only 1 left!

0

17

Gravely 07000031

BEARING, PEDESTAL

$88.99

$

In Stock, Qty 9

0

18

Gravely 06500010

NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$2.99

$

In Stock, Qty 20+

0

19

Gravely 07327500

IDLER, FLAT 4.00X1.06

$48.99

$

In Stock, only 3 left!

0

20

Gravely 05958400

BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$3.49

$

In Stock, Qty 20+

0

21

Gravely 09274900

FAN, COOLING

$25.99

$

In Stock, only 4 left!

0

22

Gravely 06442800

WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$3.49

$

In Stock, Qty 20+

0

23

Gravely 09282900

BRACKET, RTN/DAMPER

$8.49

$

Usually ships in 4-12 days

0

24

Gravely 02513500

SPACER .344X1.000X.375

$

$

Not available

25

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$3.49

$

In Stock, Qty 12

0

26

Gravely 06545400

NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$2.49

$

In Stock, Qty 20+

0

27

Gravely 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$2.49

$

In Stock, Qty 13

0

28

Gravely 59203600

KIT, PUMP SEAL

Note: (One kit required for each pump)

$82.99

$

Usually ships in 4-12 days

0

29

Gravely 06308800

WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$2.49

$

In Stock, Qty 12

0

31

Gravely 06224500

BLT-RDHDSQNK .44-14X1.50 G5YZ

$4.99

$

Usually ships in 4-12 days

0

32

Gravely 06500009

NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$6.99

$

Usually ships in 4-12 days

0

33

Gravely 06444000

WSHR-FL-STL .406X1.00X.188 YWZ
(Superseded to 06401108)

$3.99

$

In Stock, Qty 20+

0
