992141 (2044 XL) - Ariens Zoom 44" Zero-Turn Mower, 20hp Kohler (SN: 000101 & Above) Mounting Arms Parts Diagram

Zoom 44" Zero-Turn Mower, 20hp Kohler

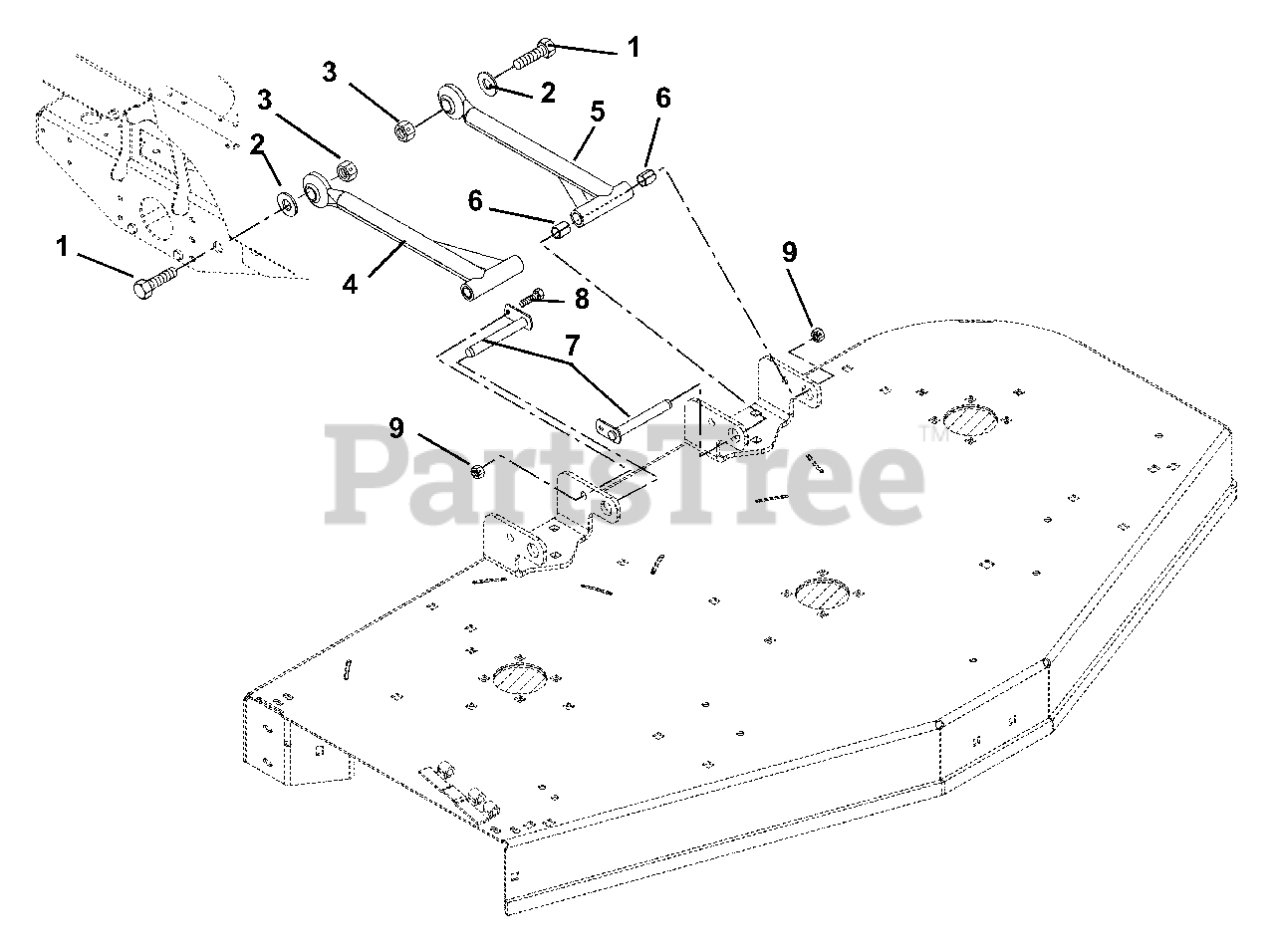

Mounting Arms Parts Diagram

  • Title

1

Ariens 05900003

BLT-HEX .875-9X3.00 GR5 YZ

$7.49

$

Usually ships in 4-12 days

0

2

Ariens 05512600

BSHG-SLV .882X1.250X.531

$6.49

$

In Stock, only 2 left!

0

3

Ariens 06539700

NUT-LK-CTR .875-9 YWZC

$6.49

$

In Stock, Qty 9

0

4

Ariens 09282000

ASSY, MOWER MOUNTING

Note: (Includes Items 5 and 6)

$217.99

$

Usually ships in 4-12 days

0

5

Ariens 09282151

MOWER MTG ARM - BLACK

$145.99

$

Usually ships in 4-12 days

0

6

Ariens 05435900

BRG, .750 X .875 X 1.000

$6.99

$

In Stock, Qty 20+

0

7

Ariens 09238900

WELDMENT, MOWER MTG. PIN

$63.99

$

In Stock, Qty 6

0

8

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.99

$

In Stock, Qty 20+

0

9

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0
