992142 (2348 XL) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Deck, Discharge Chute And Baffles Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

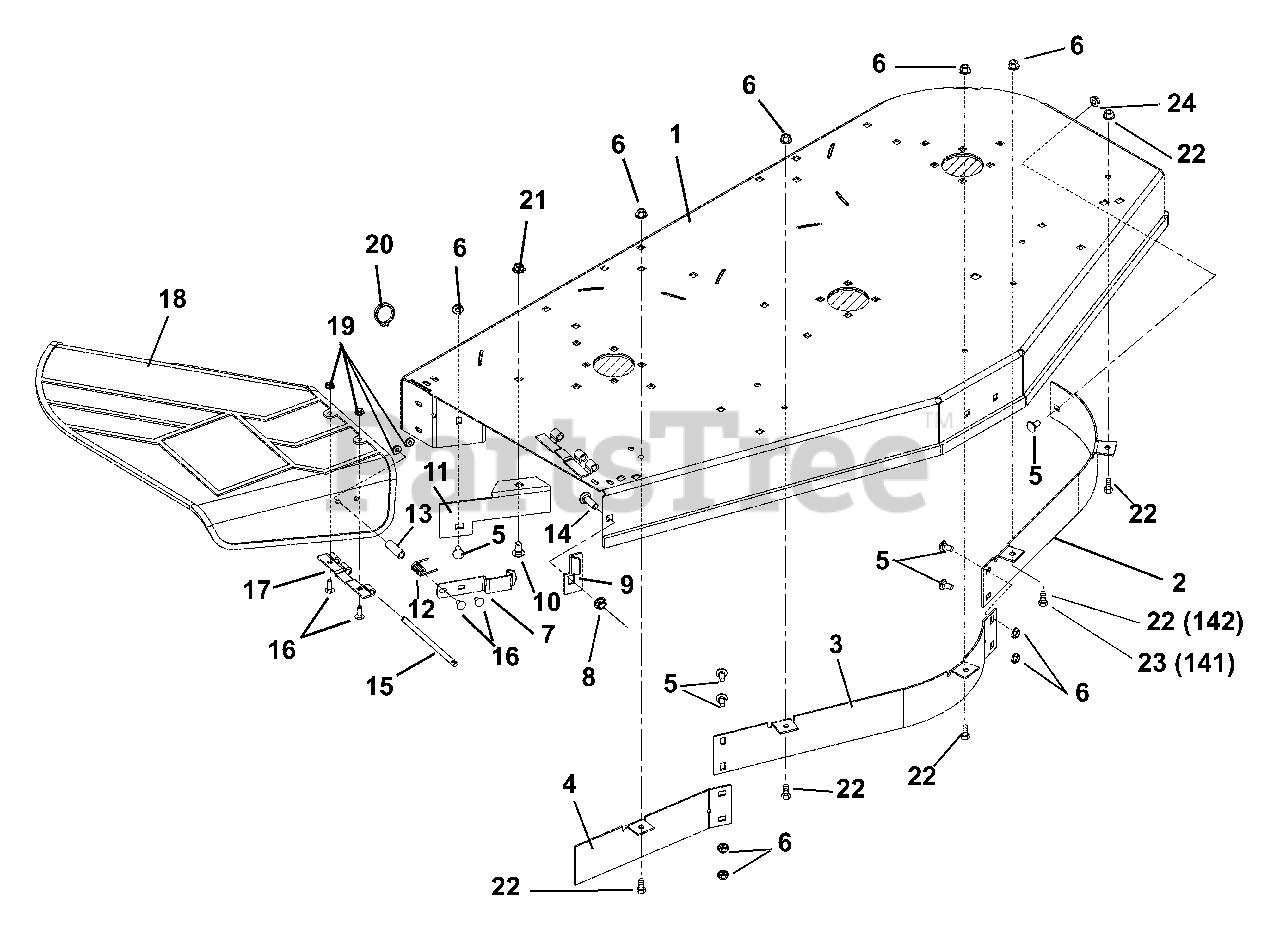

Deck, Discharge Chute And Baffles Parts Diagram

  • Title

1

Ariens 00375051

WMT, DECK 48" CONSUMER CZ
(Superseded to 59224500)

Note: (992142)

$830.99

$

Usually ships in 4-12 days

0

1

Ariens 00374051

WMT, DECK 44" CONSUMER CZ

Note: (992141)

$

$

Not available

2

Ariens 01574051

BAFFLE - LEFT FRONT - 48"

Note: (992142)

$81.99

$

In Stock, only 1 left!

0

2

Ariens 01572451

BAFFLE - LEFT FRONT - 44"

Note: (992141)

$101.99

$

Usually ships in 4-12 days

0

3

Ariens 01574151

BAFFLE - CENTER FRONT - 48"

Note: (992142)

$68.99

$

Usually ships in 4-12 days

0

3

Ariens 01572551

BAFFLE - CENTER FRONT - 44"

Note: (992141)

$77.99

$

Usually ships in 4-12 days

0

4

Ariens 01574251

BAFFLE - RIGHT FRONT - 48"

Note: (992142)

$62.99

$

In Stock, only 1 left!

0

4

Ariens 01572651

BAFFLE - RIGHT FRONT - 44"

Note: (992141)

$38.99

$

Usually ships in 4-12 days

0

5

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.99

$

In Stock, Qty 20+

0

6

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

7

Ariens 01597751

FLAT SPRING

$21.99

$

In Stock, only 1 left!

0

8

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01599151

BRACKET, CHUTE LOCK

$35.99

$

Usually ships in 4-12 days

0

10

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.99

$

In Stock, only 4 left!

0

11

Ariens 01574651

DEFLECTOR-44"/48"

$35.99

$

Usually ships in 4-12 days

0

12

Ariens 08307200

SG-TORS .095X.50X 1.0

$21.99

$

Usually ships in 4-12 days

0

13

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$6.49

$

In Stock, only 4 left!

0

14

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

15

Ariens 03624200

PIN

$54.99

$

In Stock, only 1 left!

0

16

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$1.49

$

In Stock, Qty 7

0

17

Ariens 02709551

HINGE PLATE

$28.99

$

In Stock, only 4 left!

0

18

Ariens 01585500

DEFLECTOR, CHUTE

$80.99

$

In Stock, Qty 5

0

19

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.99

$

In Stock, Qty 8

0

20

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

21

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (992142)

$1.99

$

In Stock, Qty 20+

0

22

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (992141)

$1.99

$

In Stock, Qty 20+

0

23

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (992141)

$1.99

$

In Stock, only 4 left!

0

24

Ariens 06500011

@NUT-LK-CTR-JAM .31-18 YWZC
(Superseded to 06500913)

$1.49

$

In Stock, Qty 7

0
