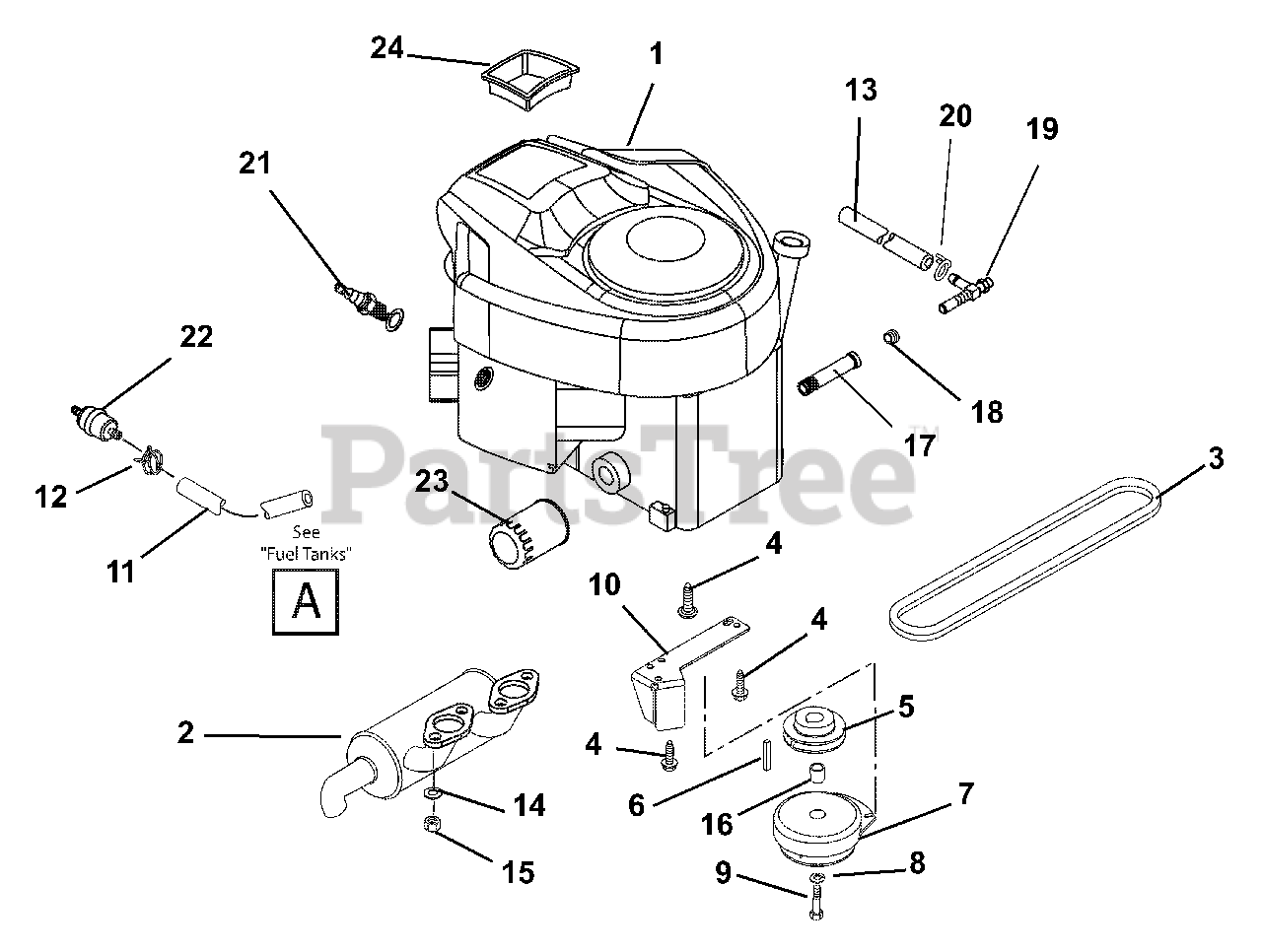

992142 (2348 XL) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

Engine And Clutch Parts Diagram

  • Title

1

Ariens 08200102

20HP KOHLER COURAGE TWIN

Note: (141)

$

$

Not available

Ariens 08200108

23HP KOHLER COURAGE TWIN

Note: (142)

$

$

Not available

2

Ariens 00470400

MUFFLER, KOHLER TWIN

$218.99

$

In Stock, only 3 left!

0

3

Ariens 07200010

V-BELT, HA-RAW EDGE

$37.99

$

In Stock, Qty 20+

0

4

Ariens 07000023

BLT, 38-16X1 6-LOBE PH TRX YZ

$3.99

$

In Stock, Qty 7

0

5

Ariens 07328200

PLY-V 4.OO X 1.00

$81.99

$

In Stock, only 2 left!

0

6

Ariens 06602700

KEY-SQ .25X.625X.25 SAE 8630

$3.99

$

In Stock, Qty 8

0

7

Ariens 00385500

CLUTCH, ELEC 1.000 ID 5219-55
(Superseded to 03368000)

$541.99

$

Usually ships in 4-12 days

0

8

Ariens 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 6

0

9

Ariens 05965700

BLT-HEX .44-20X3.00 GR5 YWZC
(Superseded to 05900037)

$7.49

$

In Stock, Qty 20+

0

10

Ariens 00367551

STOP, CLUTCH
(Superseded to 00395651)

$98.99

$

Usually ships in 4-12 days

0

11

Ariens 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06939100

CLAMP-HOSE WIRE .490/.510X.116

$3.99

$

In Stock, Qty 7

0

13

Ariens 01590900

TUBE, OIL DRAIN 8" CLEAR VINYL

$6.49

$

Usually ships in 4-12 days

0

14

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (Included with item 1)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06538600

NUT-HEX M8-1.25 YWZC

Note: (Included with item 1)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 19

0

17

Ariens 07000032

NIPPLE, PIPE .375NPT X 4.00

$

$

Not available

18

Ariens 07052200

ADAPTER, 3/8 NPTF

$15.99

$

Usually ships in 4-12 days

0

19

Ariens 00429000

DRAIN, 1/2" OIL

$40.99

$

Usually ships in 4-12 days

0

20

Ariens 06923500

CLAMP,.88 DIA. HOSE

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 21541700

PLUG, SPARK

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 21541500

FILTER, FUEL

$8.99

$

In Stock, Qty 20+

0

23

Ariens 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

$21.99

$

In Stock, Qty 20+

0

24

Ariens 21542700

FILTER, AIR-COURAGE TWIN

$24.99

$

In Stock, Qty 19

0
