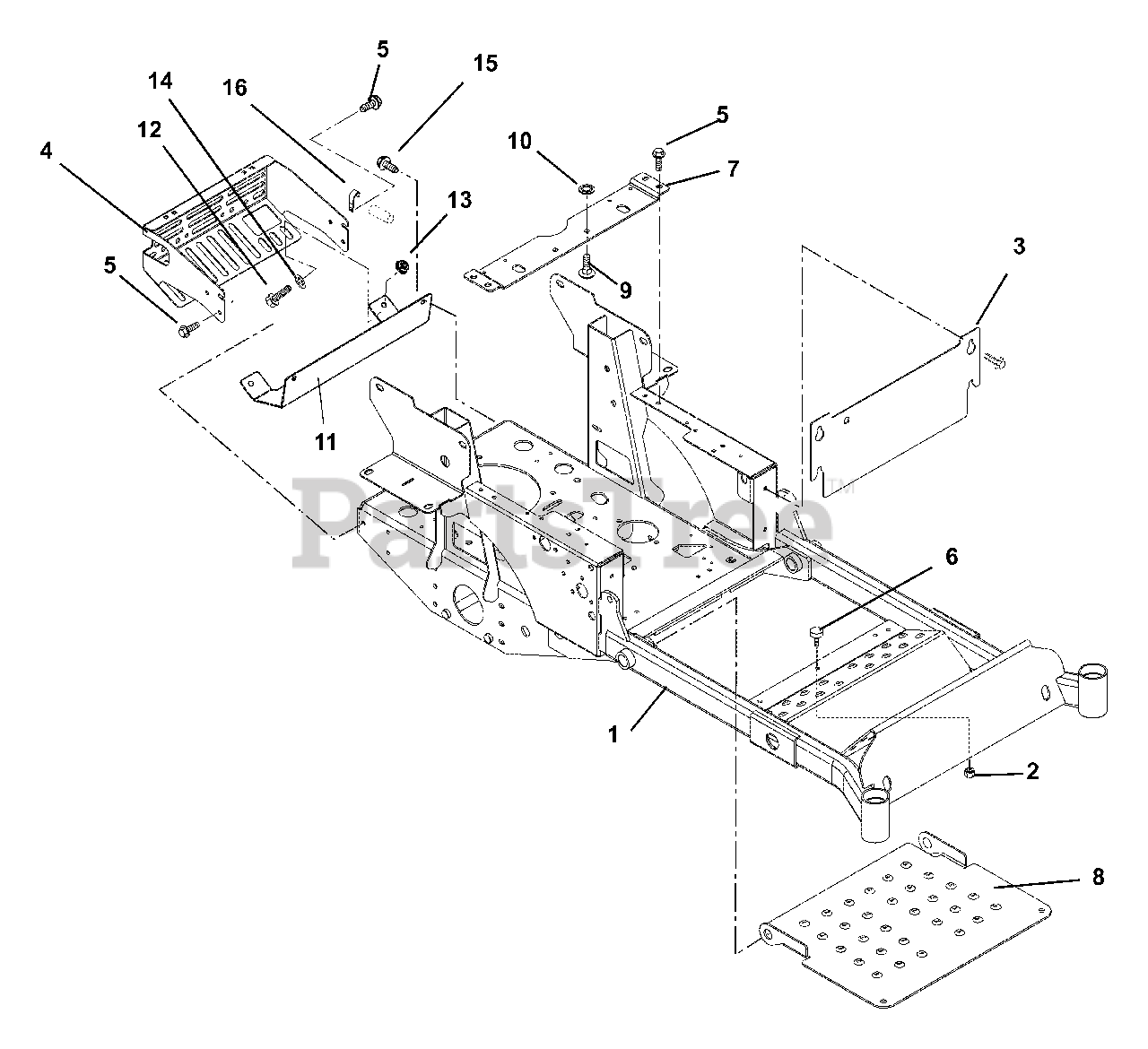

992142 (2348 XL) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Frame Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

Frame Parts Diagram

  • Title

1

Ariens 00372251

WMT, FRAME COMPACT-Z

$

$

Not available

2

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, only 2 left!

0

3

Ariens 09297259

ACCESS PANEL - ORANGE

$22.99

$

Usually ships in 4-12 days

0

4

Ariens 00366451

WMT, BUMPER W/ HEAT SHIELD CZC

$

$

Not available

5

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 07533600

BUMPER, RUBBER

$14.99

$

In Stock, only 4 left!

0

7

Ariens 09297451

SUPPORT, SEAT

$86.99

$

Usually ships in 4-12 days

0

8

Ariens 00298959

PANEL, INSPECTION

$81.99

$

Usually ships in 4-12 days

0

9

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 9

0

10

Ariens 06514900

NUT-PUSH .312

$0.99

$

In Stock, Qty 13

0

11

Ariens 00462351

SHIELD - HEAT - CZ PROD

$49.99

$

Usually ships in 4-12 days

0

12

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, only 2 left!

0

13

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, only 2 left!

0

15

Ariens 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

16

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0
