992142 (2348 XL) - Ariens Zoom 48" Zero-Turn Mower, 23hp Kohler (SN: 000101 & Above) Steering Controls Parts Diagram

Zoom 48" Zero-Turn Mower, 23hp Kohler

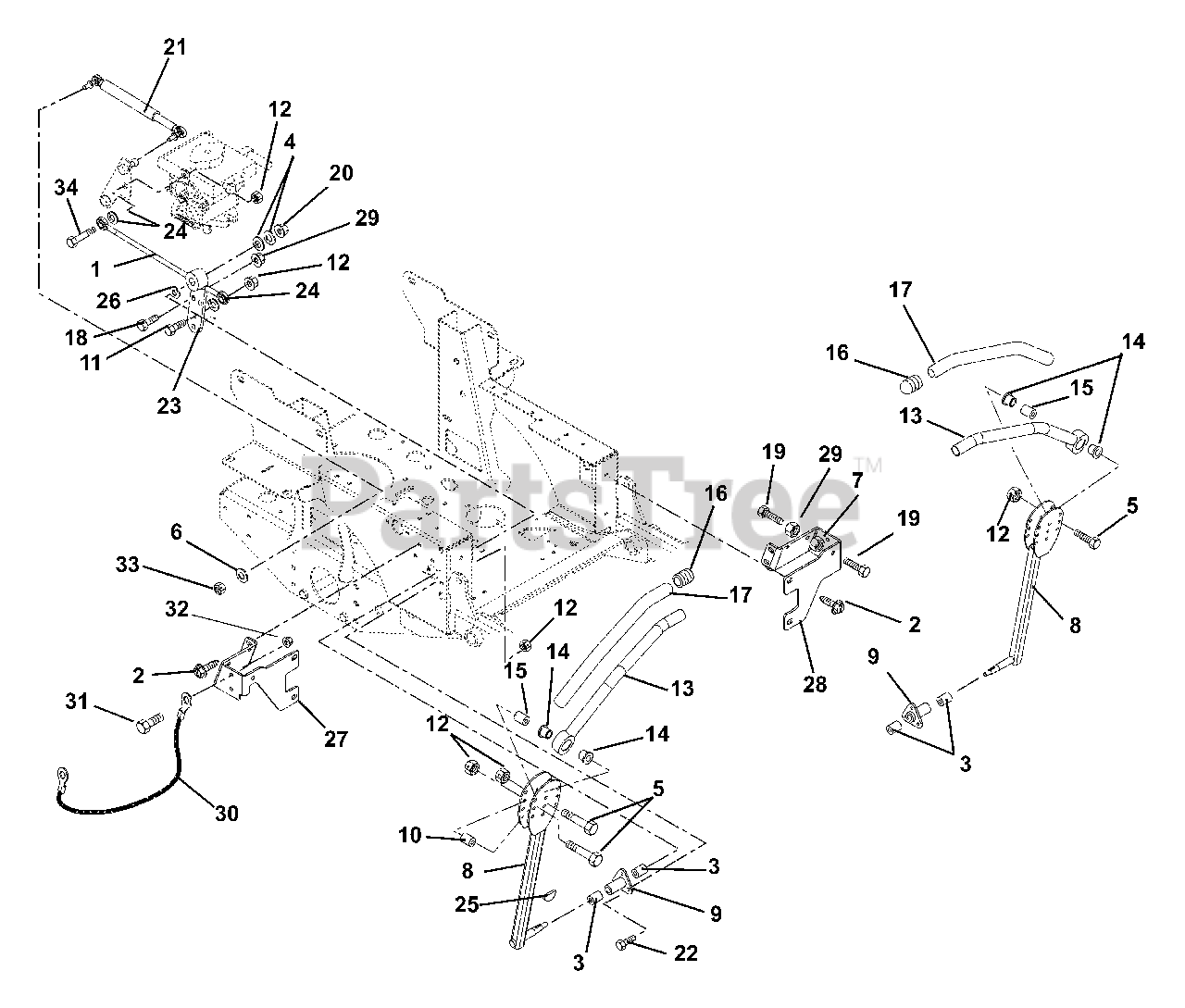

Steering Controls Parts Diagram

  • Title

1

Ariens 09285300

ASSY, STEERING ROD

$109.99

$

In Stock, only 2 left!

0

2

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 05436800

BSHG .625X.750X.500

$9.99

$

In Stock, only 4 left!

0

4

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 12

0

6

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

7

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 12

0

8

Ariens 09285751

CONTROL ARM - BLACK

$250.99

$

Usually ships in 4-12 days

0

9

Ariens 09294600

BUSHING, FLANGE

$34.99

$

Usually ships in 4-12 days

0

10

Ariens 09235700

ECCENTRIC

$4.99

$

Usually ships in 4-12 days

0

11

Ariens 05947500

@BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.49

$

In Stock, only 2 left!

0

12

Ariens 06545400

@NUT-LK-NYL-FLG .31-18 YWZC
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 09235500

HANDLE WLDMT LH

$83.99

$

In Stock, Qty 5

0

Ariens 09235600

WLDMT, RH HANDLE

$90.99

$

In Stock, only 1 left!

0

14

Ariens 05525200

BSHG-FLG .762X1.48X.44 NYL
(Superseded to 05501517)

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 09235400

SPACER .328 X .76 X 1.01

$20.99

$

In Stock, only 1 left!

0

16

Ariens 09211400

CAPLUG - HANDLEBAR

$2.99

$

In Stock, Qty 11

0

17

Ariens 09246800

GRIP - HANDLEBAR

$12.99

$

In Stock, Qty 16

0

18

Ariens 05974000

BLT-HEX .375-16X1.750 FTD YWZC
(Superseded to 05901612)

$2.99

$

Usually ships in 4-12 days

0

19

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 7

0

20

Ariens 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 01589300

DAMPENER

$113.99

$

In Stock, only 1 left!

0

22

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

$1.49

$

In Stock, Qty 8

0

23

Ariens 00163700

ARM, PIVOT

$29.99

$

Usually ships in 4-12 days

0

24

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06608400

KEY-WDRF .13X.63 HRD#5

$2.99

$

In Stock, only 3 left!

0

26

Ariens 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

In Stock, only 4 left!

0

27

Ariens 09287351

STOP, STEERING-RH (BLACK)

$79.99

$

Usually ships in 4-12 days

0

28

Ariens 09287451

STOP, STEERING -LH (BLACK)

$90.99

$

Usually ships in 4-12 days

0

29

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06927100

CBL,HOOD

$14.99

$

Usually ships in 4-12 days

0

31

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 12

0

32

Ariens 06500012

@NUT-LK-NYL-FLG .25-20 YWZC
(Superseded to 06500813)

$1.49

$

In Stock, Qty 12

0

33

Ariens 06541700

@NUT-LK-NYL M8-1.25 YWZC
(Superseded to 06500817)

$1.49

$

Usually ships in 4-12 days

0

34

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

Usually ships in 4-12 days

0
