992143 (ZT 2348 XLP) - Gravely 48" Zero-Turn Mower, 23hp Kohler (SN: 002000 & Above) Mounting Brackets Parts Diagram

48" Zero-Turn Mower, 23hp Kohler

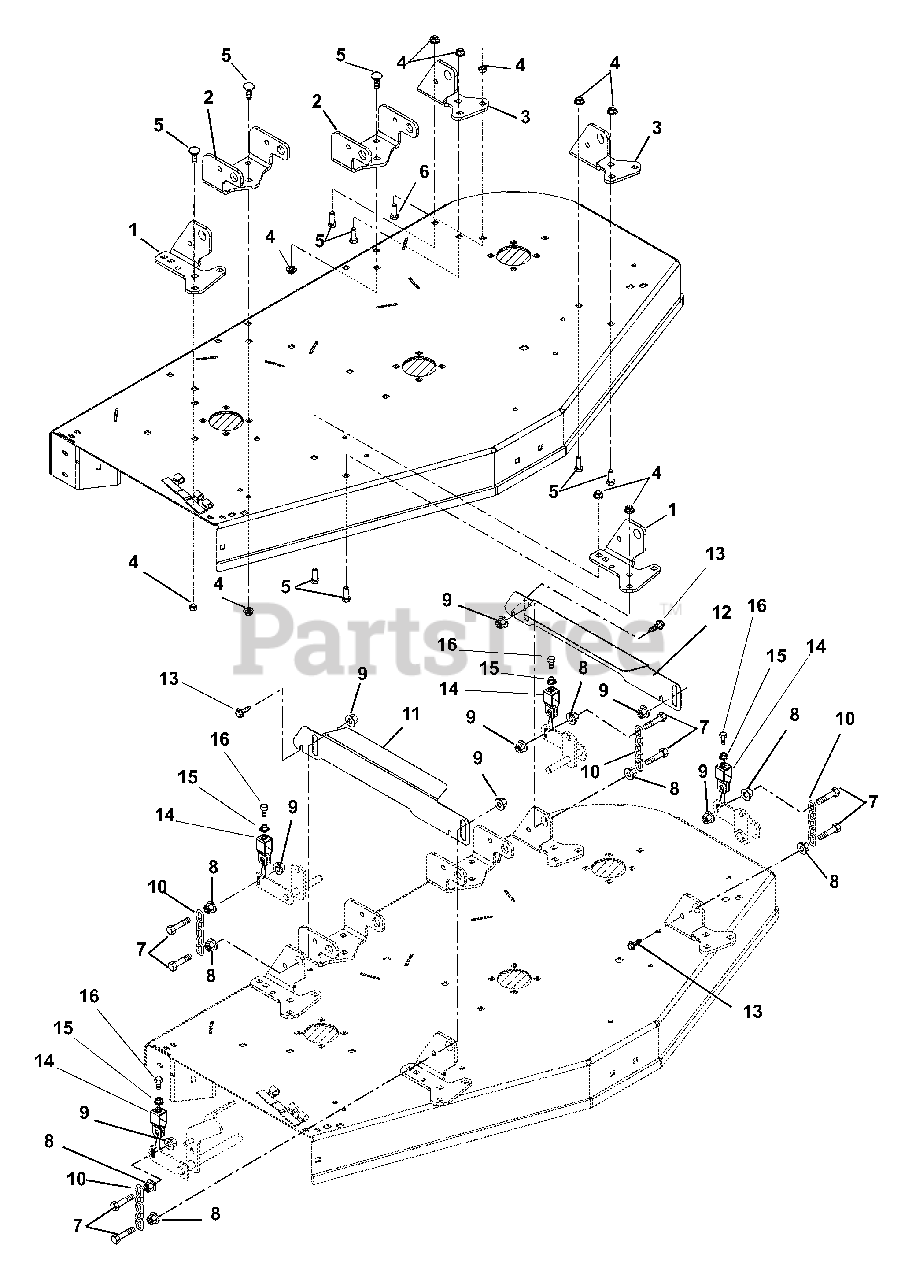

Mounting Brackets Parts Diagram

  • Title

1

Gravely 00826651

BRKT, DECK HANGING

$

$

Not available

2

Gravely 00345451

BRKT, DECK MOUNTING

$70.99

$

Usually ships in 4-12 days

0

3

Gravely 00826551

BRKT, DECK HANGING

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 06545500

NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

7

Gravely 05900022

BLT, HEX M12-1.75X50 CLS8.8 YZ

$3.99

$

In Stock, only 1 left!

0

8

Gravely 06500003

NUT-SPNLK-FLG M12-1.75 YZ

$2.99

$

In Stock, only 1 left!

0

9

Gravely 06500004

NUT-LK-TOP-FLG M12-1.75 YZ

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 09284700

CHAIN, LINK

$7.49

$

Usually ships in 4-12 days

0

11

Gravely 00484051

BRKT, DECK STABILIZING RH

$35.99

$

Usually ships in 4-12 days

0

12

Gravely 00483951

BRKT, DECK STABILIZING LH

$38.99

$

Usually ships in 4-12 days

0

13

Gravely 07412000

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 00442800

BRKT, DECK LEVELING

$9.99

$

In Stock, only 2 left!

0

15

Gravely 06536100

NUT- JAM .312-18 YWZC
(Superseded to 06500909)

$1.49

$

In Stock, Qty 17

0

16

Gravely 05980900

BLT-HEX .312-18X2.00 FTH GR5YZ
(Superseded to 05902003)

$3.49

$

In Stock, only 1 left!

0
