992145 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 000101 & Above) Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

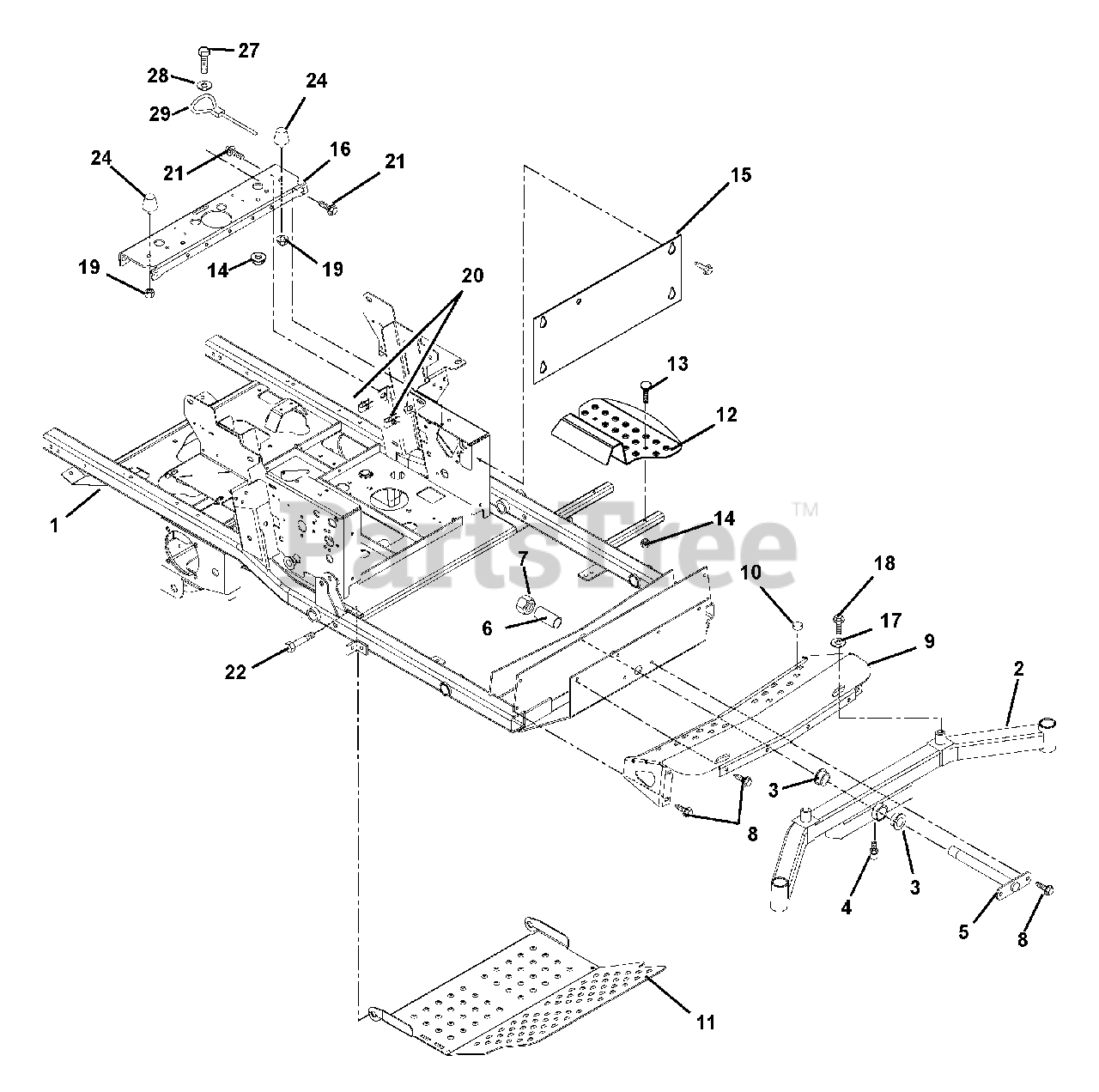

Frame Parts Diagram

  • Title

1

Gravely 00439351

Weldment, Frame

$

$

Not available

2

Gravely 00450453

Weldment, Axle

$861.99

$

Usually ships in 4-12 days

0

3

Gravely 018355

Bushing, Flange 1.02 x 1.385 x .75 x 1.75
(Superseded to 05520100)

$11.99

$

In Stock, Qty 20+

0

4

Gravely 411027

Fitting, Lube .25-28 x .256
(Superseded to 07012600)

$

$

Not available

5

Gravely 09232000

Pin, Axle

$70.99

$

In Stock, Qty 5

0

6

Gravely 09231900

Spacer

$22.99

$

In Stock, only 2 left!

0

7

Gravely 06543200

Nut, Locking Nylon 1.00-14

$10.99

$

In Stock, only 2 left!

0

8

Gravely 07415400

Screw, Tapping .38-16 x .75
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00444153

Weldment, Axle Cover
(Superseded to 59209300)

$180.99

$

In Stock, only 1 left!

0

10

Gravely 07516000

Button, Bumper

$1.49

$

In Stock, Qty 6

0

11

Gravely 00444053

Panel, Inspection

$128.99

$

Usually ships in 4-12 days

0

12

Gravely 09231251

Step, Ingress

$

$

Not available

13

Gravely 06220200

Bolt, Round Head Square Neck .31-18 x 1.75 Grade 5
(Superseded to 06200324)

$3.49

$

In Stock, Qty 10

0

14

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 09234053

Plate, Kick
(Superseded to 00483153)

$79.99

$

Usually ships in 4-12 days

0

16

Gravely 09275051

Channel, Cross

$64.99

$

Usually ships in 4-12 days

0

17

Gravely 06435200

Washer, Flat Steel .640 x 1.81 x .25
(Superseded to 06400829)

$4.99

$

In Stock, Qty 20+

0

18

Gravely 05975000

Bolt, Hex .50-20 x 1.00 Grade 5

$3.99

$

In Stock, only 2 left!

0

19

Gravely 06534600

Nut, Locking Flange .312-24

$

$

Not available

20

Gravely 07053300

Nut, Retainer .375-16 x .37

$3.99

$

In Stock, only 3 left!

0

21

Gravely 07049900

Bolt, Serrated Hex Flange Washer Head .38-16 x 1.00

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 05960000

Bolt, Hex .50-13 x 3.25 Grade 5
(Superseded to 05901634)

$3.99

$

In Stock, Qty 8

0

23

Gravely 06442000

Washer, Flat Steel .563 x 1.38 x .109
(Superseded to 06401012)

$2.99

$

In Stock, Qty 20+

0

24

Gravely 07533000

Bumper

$15.99

$

Usually ships in 4-12 days

0

25

Gravely 06543600

Nut-Locking-Top-Flange .50-13
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 05532100

Bushing, Flange .515 x .75 x .275 x 1.12

$

$

Not available

27

Gravely 05947000

Bolt, Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

28

Gravely 06437500

Washer, Flat Steel .328 x 1.00 x .094
(Superseded to 06401027)

$3.99

$

In Stock, only 1 left!

0

29

Gravely 06900010

Cable, Seat Prop.

$51.99

$

Usually ships in 4-12 days

0
