992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000400) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

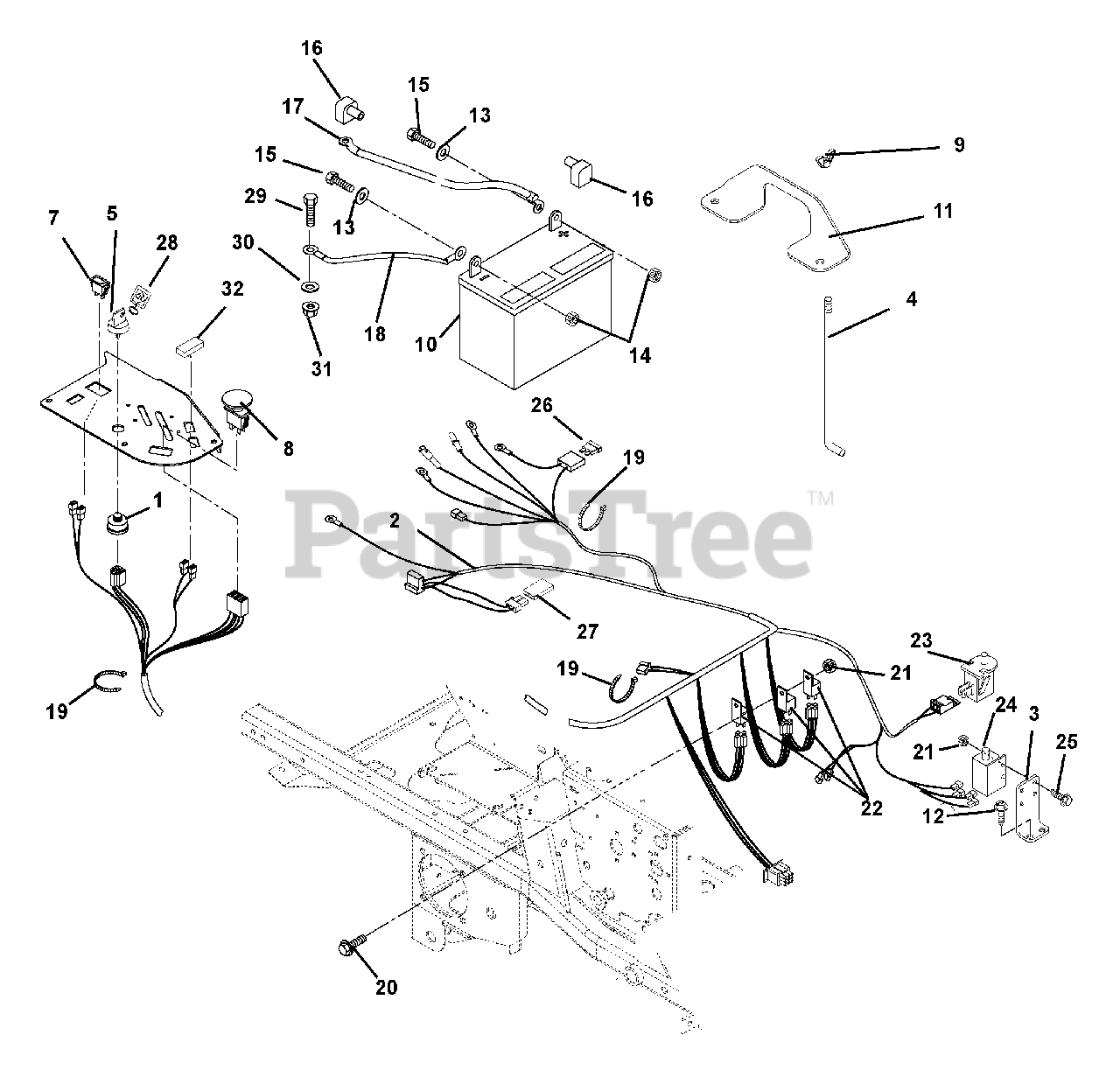

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

2

Gravely 03286300

Harness, MZ Vertical A/C
(Superseded to 04294000)

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$193.99

$

In Stock, only 2 left!

0

2

Gravely 00449700

Harness, L/C Gas
(Superseded to 03286400)

Note: (992152, 157)

$290.99

$

Usually ships in 4-12 days

0

3

Gravely 09275851

Mount, Safety Switch

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 09291900

Rod, Battery Holddown .25 x 6.62

$29.99

$

Usually ships in 4-12 days

0

5

Gravely 09287000

Key, with Shield

$17.99

$

In Stock, Qty 20+

0

6

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

7

Gravely 00456600

Hour Meter
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

8

Gravely 01545600

Switch, PTO Clutch

$27.99

$

In Stock, Qty 20+

0

9

Gravely 06537500

Nut-Locking Wing .25-20
(Superseded to 06500805)

$5.49

$

Usually ships in 4-12 days

0

10

Gravely 01554800

Battery, 12V

$

$

Not available

11

Gravely 00428151

Hold Down, Battery

$22.99

$

In Stock, only 1 left!

0

12

Gravely 07412000

Screw-Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 06437300

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, only 3 left!

0

14

Gravely 06543500

Nut-Locking-Top-Flange .25-20
(Superseded to 06500903)

$1.49

$

In Stock, Qty 8

0

15

Gravely 05946800

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$1.49

$

In Stock, Qty 12

0

16

Gravely 00525800

Battery Terminal Boot, Red

$8.49

$

Usually ships in 4-12 days

0

17

Gravely 02727200

Starter Cable 13 in.
(Superseded to 02727201)

$23.99

$

In Stock, Qty 9

0

18

Gravely 03287100

Ground Cable

$17.99

$

In Stock, only 2 left!

0

19

Gravely 036313

Cable Tie
(Superseded to 07517300)

$

$

Not available

20

Gravely 06116700

Screw-Machine 10-24 x .50 Hex Washer Head
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06536000

Nut-Locking-Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 00432100

Relay
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

23

Gravely 02754100

Switch, Snap Mounting

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$9.99

$

In Stock, Qty 20+

0

23

Gravely 03654200

Switch, Snap Mounting

Note: (992146, 147)

$15.99

$

In Stock, only 3 left!

0

24

Gravely 03606600

Switch- Double Pole N.O./N.O.

$17.99

$

In Stock, Qty 20+

0

25

Gravely 06116900

Screw-Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

26

Gravely 00524600

Fuse, 30 Amp

Note: (Included with Harness)

$

$

Not available

27

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

28

Gravely 00457400

Key Chain

$

$

Not available

29

Gravely 05947000

Bolt-Hex .31-18 x .75 Grade 5
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

30

Gravely 06437200

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 06543100

Nut-Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

32

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$7.99

$

In Stock, Qty 9

0

Gravely 09003300

Switch, Blank

Note: (992146, 147)

$5.49

$

Usually ships in 4-12 days

0
