992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000400) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

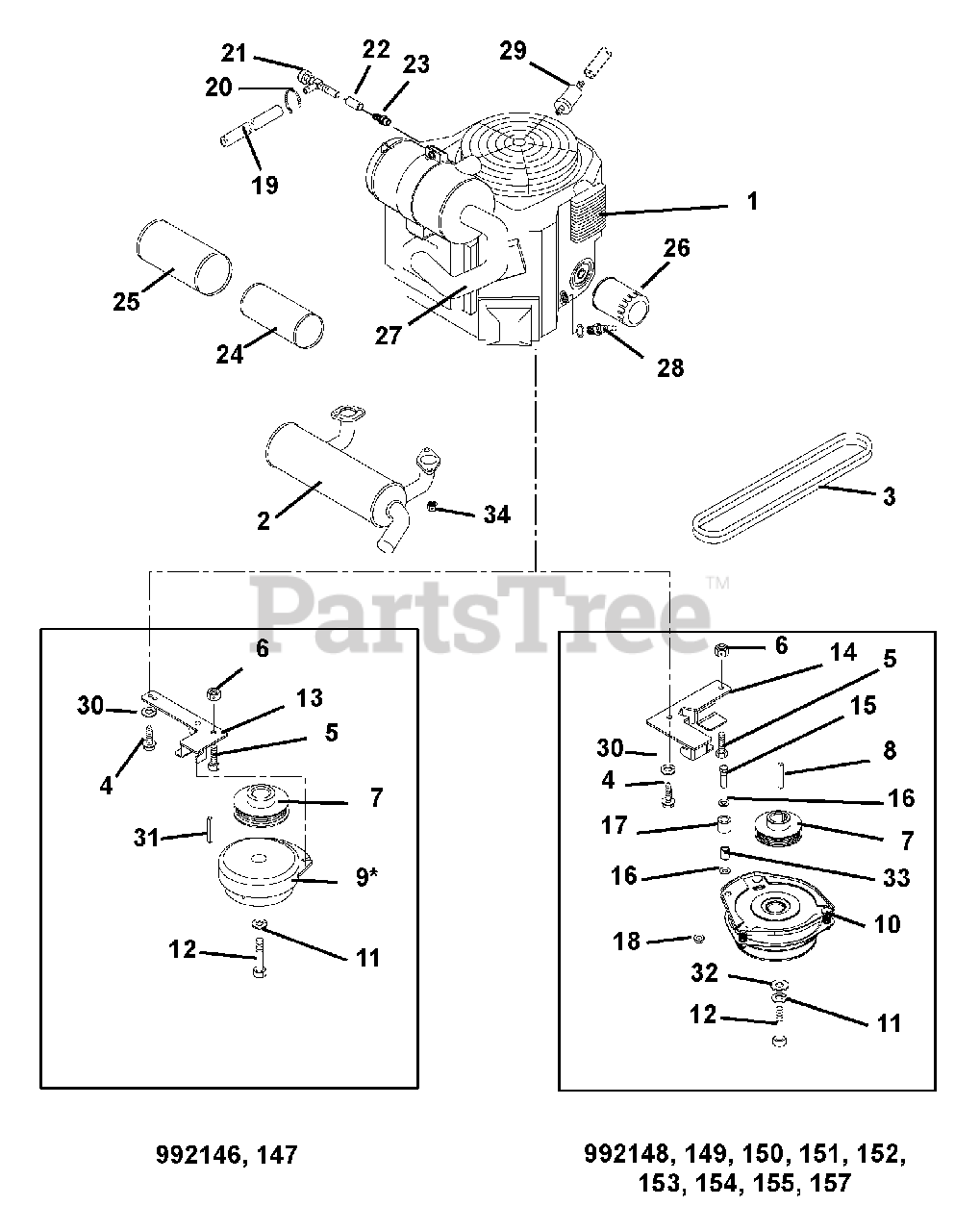

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08268300

ENGINE, KAWASAKI 25HP

Note: (FH721V) (992148, 149, 151, 153)

$

$

Not available

Gravely 08200029

ENGINE, 26HP GAS KAW VERT. L/C

Note: (FD731V) (992152, 157)

$

$

Not available

Gravely 08268100

ENGINE, KOHLER 27HP

Note: (CV740S) (992150, 154)

$

$

Not available

Gravely 08200133

ENGINE, KOHLER 23HP COMMAND

Note: (PS75591) (992146)

$

$

Not available

Gravely 08200143

ENGINE, KOHLER 25HP COMMAND

Note: (992147)

$

$

Not available

Gravely 08200144

ENGINE-KOHLER COMMAND PRO 30HP

Note: (CV750S) (992155)

$

$

Not available

2

Gravely 09281600

MUFFLER, KAW (INTERMEDIATE-Z)

Note: (992148, 149, 151, 153)

$298.99

$

Usually ships in 4-12 days

0

Gravely 00297100

MUFFLER,LIQUID COOLED VERT.

Note: (992152, 157)

$

$

Not available

Gravely 00470400

MUFFLER, KOHLER TWIN

Note: (992146, 147, 150, 154, 155)

$218.99

$

In Stock, only 2 left!

0

3

Gravely 07242000

POLY V-BELT, K-5 RIBS

$54.99

$

In Stock, Qty 18

0

4

Gravely 07417400

@SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$4.99

$

In Stock, only 2 left!

0

Gravely 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

Note: (992152, 157)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300041

SHEAVE - POLY-V 1.127 X 3.275

$95.99

$

In Stock, Qty 5

0

8

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$5.49

$

In Stock, Qty 10

0

9

Gravely 00462500

CLUTCH, WARNER 6.323 O/PIN

Note: (992146, 147)

$619.99

$

Usually ships in 4-12 days

0

10

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$512.99

$

In Stock, only 2 left!

0

11

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

$7.49

$

In Stock, Qty 14

0

13

Gravely 00662151

WMT - CLUTCH ANCHOR - WARNER

Note: (992146, 147)

$71.99

$

Usually ships in 4-12 days

0

14

Gravely 00662251

WMT - CLUTCH ANCHOR - OGURA

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$84.99

$

Usually ships in 4-12 days

0

15

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$1.99

$

In Stock, Qty 17

0

16

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$6.49

$

In Stock, only 1 left!

0

18

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 021134

HOSE, .25 LOW-PERM BULK GAS
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

21

Gravely 00429000

DRAIN, 1/2" OIL

$40.99

$

In Stock, only 3 left!

0

22

Gravely 07052200

ADAPTER, 3/8 NPTF

Note: (992146, 147, 150, 154, 155)

$15.99

$

Usually ships in 4-12 days

0

23

Gravely 02749600

NIPPLE

Note: (992146, 147, 150, 154, 155)

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 21536900

ELEMENT, INNER SAFETY

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$29.99

$

In Stock, Qty 11

0

Gravely 21536400

AIR FILTER

Note: (992146, 147)

$20.99

$

In Stock, Qty 20+

0

25

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$37.99

$

In Stock, Qty 20+

0

Gravely 21536300

ELEMENT, PRE-CLEANER

Note: (992146, 147)

$7.49

$

In Stock, Qty 20+

0

26

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (992148, 149, 151, 153)

$18.99

$

Usually ships in 2-5 days

0

Gravely 21380000

FILTER-OIL/14HP KAW
(Superseded to 21535800)

Note: (992152, 157)

$18.99

$

Usually ships in 2-5 days

0

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (992146, 147, 150, 154, 155)

$21.99

$

Usually ships in 4-12 days

0

27

Gravely 21536800

HOSE, AIR INTAKE

Note: (992150, 154)

$26.99

$

In Stock, only 1 left!

0

28

Gravely 21536100

PLUG, SPARK

Note: (992148, 149, 151, 153)

$10.99

$

In Stock, Qty 20+

0

Gravely 21538500

PLUG, SPARK

Note: (992152, 157)

$6.49

$

In Stock, Qty 20+

0

Gravely 21536800

HOSE, AIR INTAKE

Note: (992150, 154, 155)

$26.99

$

In Stock, only 1 left!

0

Gravely 21525900

SPARK PLUG
(Superseded to 21541700)

Note: (992146, 147)

$7.49

$

In Stock, Qty 20+

0

29

Gravely 21410800

FILTER, FUEL - KOH CV20
(Superseded to 21541500)

Note: (992148, 149, 151, 153)

$13.99

$

In Stock, Qty 20+

0

Gravely 21541800

FILTER, FUEL 26 HP L/C

Note: (992152, 157)

$27.99

$

Usually ships in 4-12 days

0

Gravely 21539500

FILTER, FUEL

Note: (992146, 147, 150, 154, 155)

$18.99

$

In Stock, Qty 20+

0

30

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06602200

KEY-SQ .25X1.0X.25 SAE 8630

Note: (992146, 147)

$3.99

$

In Stock, Qty 13

0

32

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

Note: (992146, 147)

$7.99

$

In Stock, Qty 20+

0

33

Gravely 08905500

BUSH.,S.407X.625X.813 ST

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$14.99

$

In Stock, only 2 left!

0

34

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

Gravely 59205200

KIT,BRAKE POLE MODULE REPLACE

Note: (Not Shown)

$

$

Not available
