992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000400) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

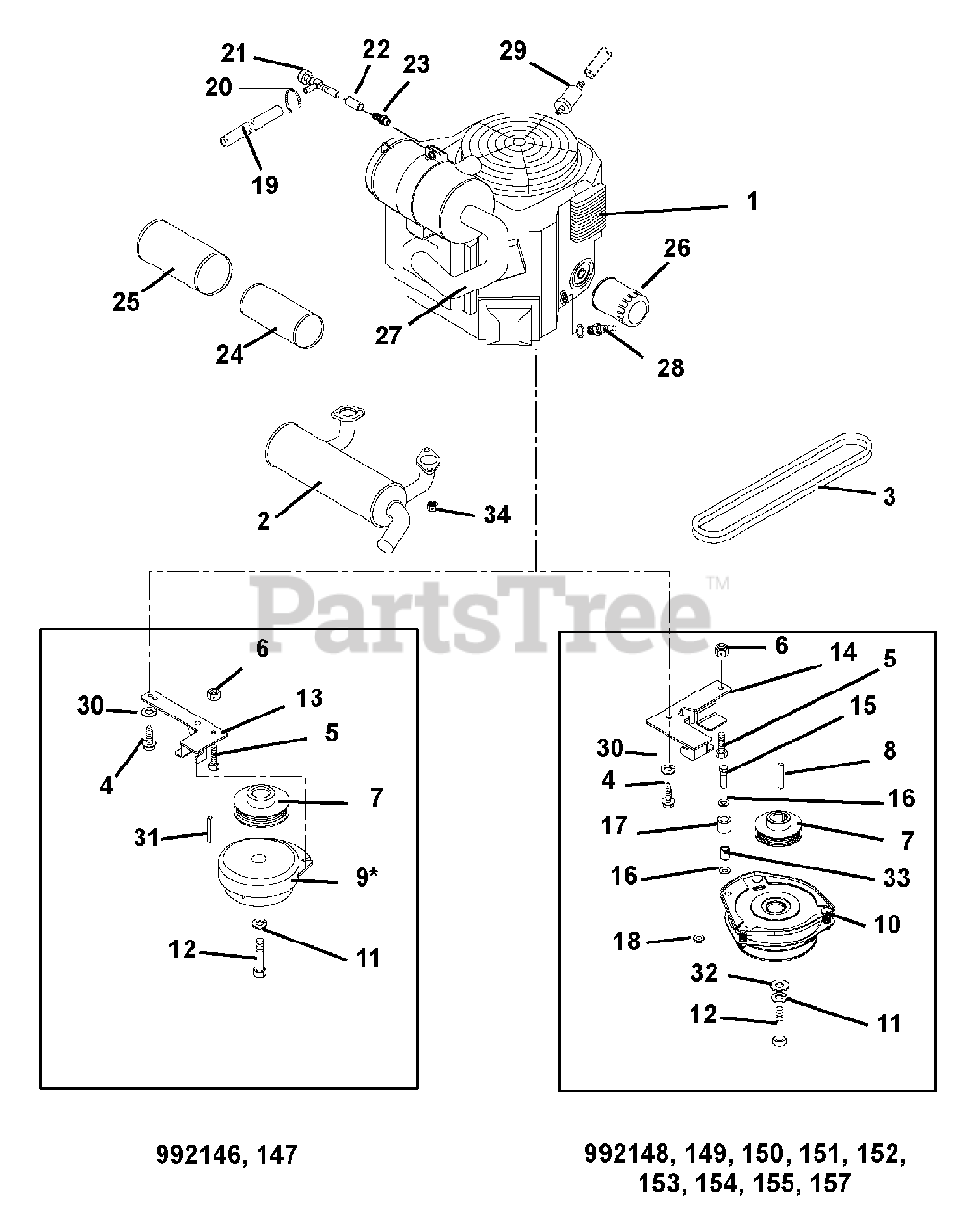

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08268300

Engine, 25hp Kawasaki

Note: (FH721V) (992148, 149, 151, 153)

$

$

Not available

1

Gravely 08200029

Engine, 26hp Liquid Cooled Kawasaki

Note: (FD731V) (992152, 157)

$

$

Not available

1

Gravely 08268100

Engine, 27hp Kohler

Note: (CV740S) (992150, 154)

$

$

Not available

1

Gravely 08200133

Engine, 23hp Kohler Command

Note: (PS75591) (992146)

$

$

Not available

1

Gravely 08200143

Engine, 25hp Kohler Command

Note: (992147)

$

$

Not available

1

Gravely 08200144

Engine, 30hp Kohler

Note: (CV750S) (992155)

$

$

Not available

2

Gravely 09281600

Muffler, Kawasaki

Note: (992148, 149, 151, 153)

$298.99

$

Usually ships in 4-12 days

0

2

Gravely 00297100

Muffler, Kawasaki Liquid Cooled

Note: (992152, 157)

$

$

Not available

2

Gravely 00470400

Muffler, Kohler Twin

Note: (992146, 147, 150, 154, 155)

$218.99

$

In Stock, only 3 left!

0

3

Gravely 07242000

Belt, Poly-V

$54.99

$

In Stock, Qty 9

0

4

Gravely 07417400

Screw, Tapping Hex Washer Head .38-16 x 1.50
(Superseded to 07400203)

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 05964900

Bolt, Hex M8-1.25 x 25 Grade 8

Note: (992152, 157)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

Note: (992146, 147, 148, 149, 150, 151, 153, 154, 155)

$3.49

$

In Stock, Qty 5

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300041

Sheave, Poly V 1.127 x 3.275

$95.99

$

In Stock, only 1 left!

0

8

Gravely 06600003

Key-Square .25 x 3.50 x .25 SAE

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$5.49

$

In Stock, only 3 left!

0

9

Gravely 00462500

Clutch, Electric

Note: (992146, 147)

$619.99

$

Usually ships in 4-12 days

0

10

Gravely 00447100

Clutch, Electric

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$730.99

$

In Stock, only 1 left!

0

11

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 4 left!

0

12

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade 5 YZ EP80

$7.49

$

In Stock, Qty 18

0

13

Gravely 00662151

Anchor, Clutch

Note: (992146, 147)

$71.99

$

Usually ships in 4-12 days

0

14

Gravely 00662251

Anchor Clutch

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$84.99

$

Usually ships in 4-12 days

0

15

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$1.99

$

In Stock, Qty 10

0

16

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 07500007

Bumper,Rubber .62 x 1.0 x .88 LG

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$6.49

$

In Stock, Qty 9

0

18

Gravely 06542000

Nut-Locking-Top-Flange .38-16
(Superseded to 06500822)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 021134

Gas Line, Bulk .25 I.D.
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

21

Gravely 00429000

Drain, 1/2" Drain

$40.99

$

Usually ships in 4-12 days

0

22

Gravely 07052200

Adapter, .38 NPTF

Note: (992146, 147, 150, 154, 155)

$15.99

$

Usually ships in 4-12 days

0

23

Gravely 02749600

Nipple

Note: (992146, 147, 150, 154, 155)

$9.99

$

Usually ships in 4-12 days

0

24

Gravely 21536900

Element, Inner Safety

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$29.99

$

In Stock, only 4 left!

0

24

Gravely 21536400

Air Filter

Note: (992146, 147)

$24.99

$

In Stock, Qty 20+

0

25

Gravely 21537000

Element, Outer Primary

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$28.99

$

In Stock, Qty 20+

0

25

Gravely 21536300

Elemtn, Pre-Cleaner

Note: (992146, 147)

$6.99

$

In Stock, Qty 20+

0

26

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

Note: (992148, 149, 151, 153)

$18.99

$

In Stock, Qty 20+

0

26

Gravely 21380000

Oil Filter
(Superseded to 21535800)

Note: (992152, 157)

$18.99

$

In Stock, Qty 20+

0

26

Gravely 21397200

Oil Filter
(Superseded to 20715100)

Note: (992146, 147, 150, 154, 155)

$21.99

$

In Stock, Qty 20+

0

27

Gravely 21536800

Hose, Air Intake

Note: (992150, 154)

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 21536100

Spark Plug

Note: (992148, 149, 151, 153)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 21538500

Spark Plug

Note: (992152, 157)

$3.99

$

In Stock, Qty 20+

0

28

Gravely 21536800

Spark Plug

Note: (992150, 154, 155)

$26.99

$

Usually ships in 4-12 days

0

28

Gravely 21525900

Spark Plug
(Superseded to 21541700)

Note: (992146, 147)

$3.99

$

Usually ships in 4-12 days

0

29

Gravely 21410800

Fuel Filter
(Superseded to 21541500)

Note: (992148, 149, 151, 153)

$8.99

$

In Stock, Qty 20+

0

29

Gravely 21541800

Fuel Filter

Note: (992152, 157)

$27.99

$

Usually ships in 4-12 days

0

29

Gravely 21539500

Fuel Filter

Note: (992146, 147, 150, 154, 155)

$12.99

$

In Stock, Qty 20+

0

30

Gravely 06308600

Washer, Lock .31 x .078
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 06602200

Key, Square .25 x 1 x 0.25

Note: (992146, 147)

$3.99

$

In Stock, Qty 17

0

32

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

Note: (992146, 147)

$7.99

$

In Stock, Qty 20+

0

33

Gravely 08905500

Bushing, .407 x .625 x .813

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$14.99

$

In Stock, only 2 left!

0

34

Gravely 06500018

Nut, Locking, Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

34

Gravely 59205200

Brake Pole Module Replacement Kit for Clutch

Note: (Not Shown)

$

$

Not available
