992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000400) Hydrostatic Pumps & Idlers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

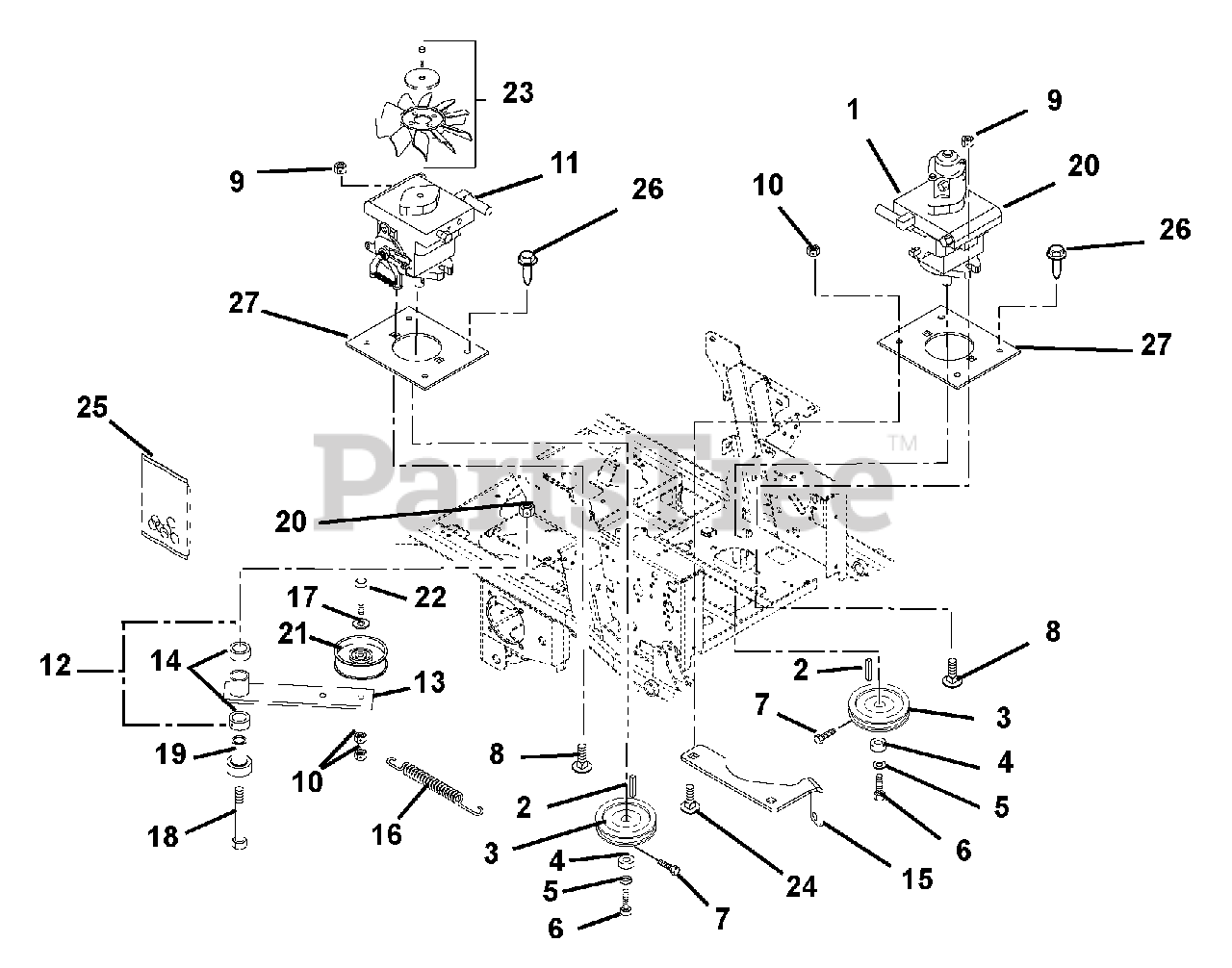

Hydrostatic Pumps & Idlers Parts Diagram

  • Title

1

Gravely 00438600

PUMP, HYD PJ-SERIES 12CC (FAN)

$989.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.99

$

In Stock, Qty 6

0

3

Gravely 00666000

SHEAVE,POLY-V .593X4.125(12CC)

Note: (12CC)

$144.99

$

Usually ships in 4-12 days

0

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

@WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05975900

@BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

7

Gravely 05980100

SCR-SKH .25-20 X .50 PH & OIL
(Superseded to 05900127)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 06224500

@BLT-RDHDSQNK .44-14X1.50 G5YZ

$3.99

$

Usually ships in 4-12 days

0

9

Gravely 06500009

@NUT-LK-NYL-FLG .44-14 YWZC
(Superseded to 06500811)

$6.49

$

Usually ships in 4-12 days

0

10

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00438500

PUMP, HYD PJ-SERIES 12CC (FAN)

Note: (FAN)

$989.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 13 & 14)

$102.99

$

Usually ships in 4-12 days

0

13

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$114.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

15

Gravely 00665951

BRKT, 12CC PUMP SPRING ANCHOR

$

$

Not available

16

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

18

Gravely 05965800

@BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

19

Gravely 07000031

BEARING, PEDESTAL

$84.99

$

In Stock, Qty 10

0

20

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

22

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 09274900

FAN, COOLING

$52.99

$

In Stock, Qty 6

0

24

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

25

Gravely 59203600

KIT, PUMP SEAL

Note: (One kit required for each pump)

$79.99

$

Usually ships in 4-12 days

0

26

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 00665851

12CC PUMP MOUNTING PLATE - BLK

$

$

Not available
