992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000101 - 000400) Wheel Motors, Tires, Brakes, & Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

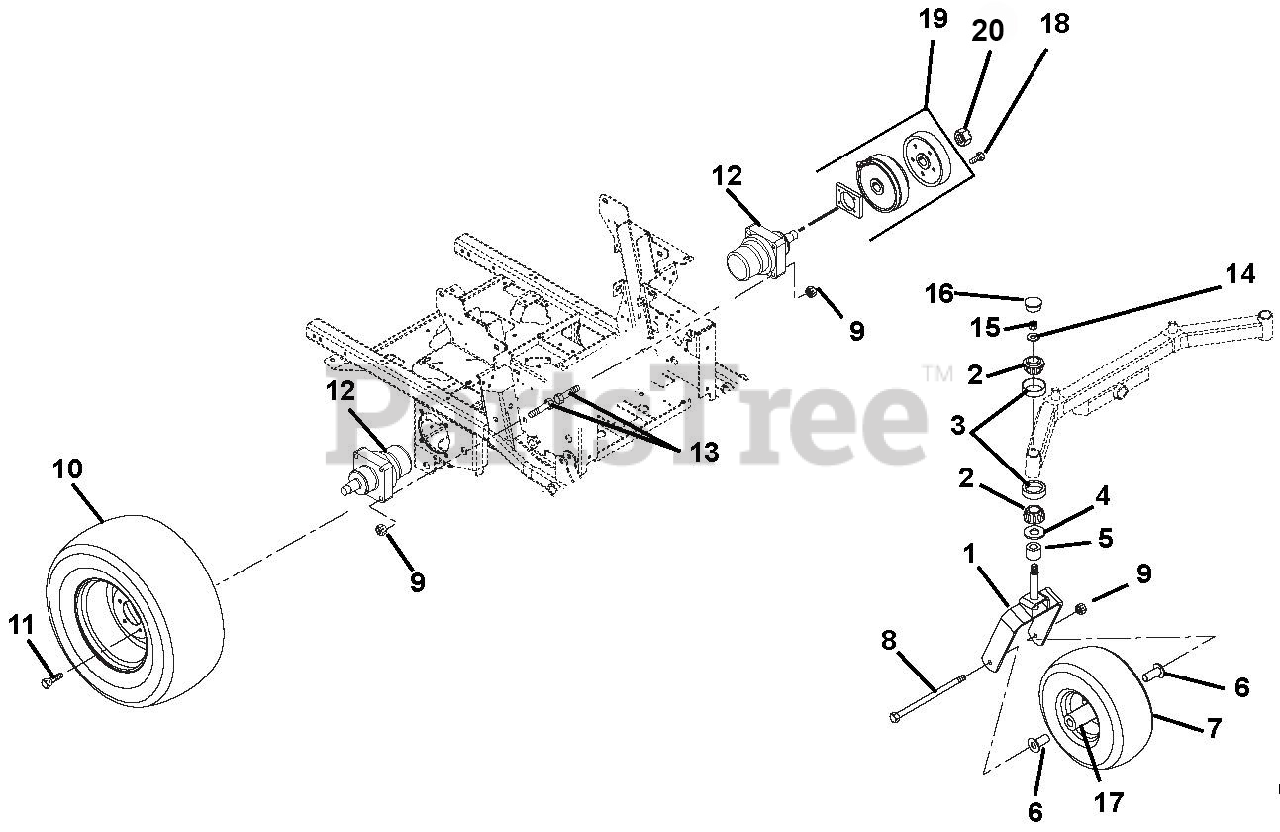

Wheel Motors, Tires, Brakes, & Front Forks Parts Diagram

  • Title

1

Gravely 00489853

FORK - FRONT
(Superseded to 59208500)

$184.99

$

Usually ships in 4-12 days

0

2

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$20.99

$

In Stock, Qty 20+

0

3

Gravely 05407000

BRG-CUP1.980X.420

$18.99

$

In Stock, Qty 20+

0

4

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 20+

0

5

Gravely 00531500

SPACER 1.005X1.5075X.375

$8.49

$

In Stock, Qty 13

0

6

Gravely 00675300

SPACER, FRONT WHEEL

$9.49

$

In Stock, Qty 20+

0

7

Gravely 07100205

TIRE/WHEEL ASSY 15X6-6
(Superseded to 59219000)

$197.99

$

In Stock, only 4 left!

0

Gravely 07147100

TIRE, 15X6-6
(Superseded to 07100905)

$76.99

$

In Stock, only 2 left!

0

8

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$11.99

$

In Stock, Qty 20+

0

9

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 07157500

TIRE/WHEEL ASSY 24X12-12
(Superseded to 59210100)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$351.99

$

Usually ships in 4-12 days

0

Gravely 07158100

TIRE, TURFMASTER 24X12-12
(Superseded to 07101040)

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$300.99

$

Usually ships in 4-12 days

0

Gravely 07100203

ASSY, TIRE/WHEEL 23X10.50-12
(Superseded to 59101000)

Note: (992146)

$298.99

$

Usually ships in 4-12 days

0

Gravely 07152300

TIRE/WHEEL ASSY, 23X10.50-12
(Superseded to 59101000)

Note: (992147)

$298.99

$

Usually ships in 4-12 days

0

Gravely 07149000

TIRE 23X10.50-12 MULTITRAC C/S

Note: (992146, 147)

$

$

Not available

11

Gravely 07067700

BLT, LUG .50-20 X 1.38
(Superseded to 07000143)

$3.99

$

In Stock, Qty 20+

0

12

Gravely 09263100

MOTOR, PARKER WHEEL

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$963.99

$

Usually ships in 4-12 days

0

Gravely 00676700

MOTOR, WHEEL HGM 15E (CCW)

Note: (992146, 147)

$

$

Not available

13

Gravely 07067200

BOLT, WHEEL MOTOR 1/2-13X2.75

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$18.99

$

Usually ships in 4-12 days

0

Gravely 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

Note: (992146, 147)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$6.49

$

In Stock, Qty 11

0

16

Gravely 00456800

CAP, DUST

$18.99

$

In Stock, Qty 8

0

17

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$25.99

$

In Stock, Qty 20+

0

18

Gravely 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.99

$

In Stock, Qty 15

0

19

Gravely 58904300

KIT, BRAKE SERVICE (1-SIDE)

$611.99

$

Usually ships in 4-12 days

0

20

Gravely 21549500

HG HEX NUT 1-20 SLOTED

Note: (992148, 149, 150, 151, 152, 153, 154, 155, 157)

$28.99

$

Usually ships in 4-12 days

0
