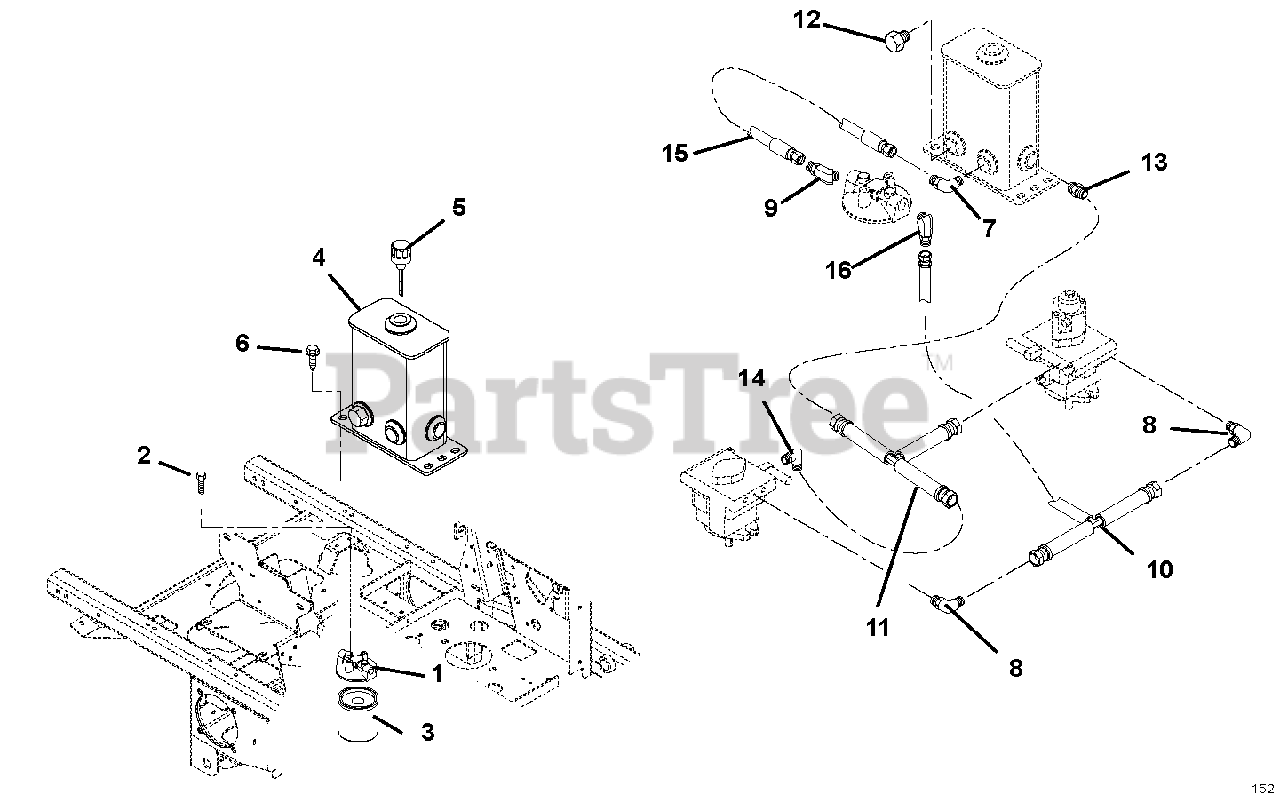

992147 (PM 260M) - Gravely Pro-Master 60" Zero-Turn Mower, 25hp Kohler (SN: 000401 & Above) Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

Pro-Master 60" Zero-Turn Mower, 25hp Kohler

Hydraulic Tank, Filter, Pumps And Hoses Parts Diagram

  • Title

1

Gravely 09419900

Head, Filter (Serial Numbers 000101 and 000400)

Note: (Serial Numbers 000101 and 000400)

$

$

Not available

Gravely 00672000

Head, Filter (Serial Numbers 000401 and up)

Note: (Serial Numbers 000401 and up)

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Grade 5 Epoxy
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 09414200

Oil Filter
(Superseded to 03931900)

$30.99

$

In Stock, Qty 9

0

4

Gravely 00161051

Weldment, Hydraulic Tank (SN 000101 - 002499)

Note: (SN 000101 - 002499)

$

$

Not available

Gravely 02985251

Weldment, Formed Hydraulic Tank-2 PORT (SN 002500 and up)

Note: (SN 002500 and up)

$200.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Hydraulic Tank Dipstick

$51.99

$

In Stock, only 1 left!

0

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic 90 Degree Elbow

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 07000029

Fitting, Elbow M6O-M8F

$

$

Not available

9

Gravely 07069900

Fitting, Hydraulic 45° M80-M120 (SN 000101 - 000400)

Note: (SN 000101 - 000400)

$30.99

$

Usually ships in 4-12 days

0

Gravely 07059900

Fitting, Hydraulic Straight M80-M80 (SN 000401 and up)

Note: (SN 000401 and up)

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 00364800

Hose, Tee Assembly, .50

$157.99

$

Usually ships in 4-12 days

0

11

06663000

Hose, .38 Tee Assembly

$

$

Not available

12

Gravely 07000006

Plug, Hex, .75-16 O-Ring

$10.99

$

Usually ships in 4-12 days

0

13

Gravely 07000011

Fitting, Hydraulic 45 Degree M6F-M8O (SN 000101- 002499)

Note: (SN 000101- 002499)

$

$

Not available

Gravely 07062100

Fitting, Hydraulic Straight M10O-M8F (SN 002500 and up)

Note: (SN 002500 and up)

$15.99

$

Usually ships in 4-12 days

0

14

Gravely 07063600

Fitting, Hydraulic (6 C5OLO)

Note: (6 C5OLO)

$35.99

$

Usually ships in 4-12 days

0

15

Gravely 00364700

Hose, Hydraulic (SN 000101 - 000400)

Note: (SN 000101 - 000400)

$78.99

$

Usually ships in 4-12 days

0

Gravely 00589900

Hose, Hydraulic Molded (SN 000401 and up)

Note: (SN 000401 and up)

$

$

Not available

16

Gravely 07069900

Fitting, Hydraulic 45° M80-M120 (SN 000101 - 000400)

Note: (SN 000101 - 000400)

$30.99

$

Usually ships in 4-12 days

0

Gravely 07066200

Fitting, Hydraulic 45 Degree (SN 000401 and Up)

Note: (SN 000401 and Up)

$62.99

$

Usually ships in 4-12 days

0
