992148 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000101 - 000400) Hydrostatic Pumps & Idlers - XDZ Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

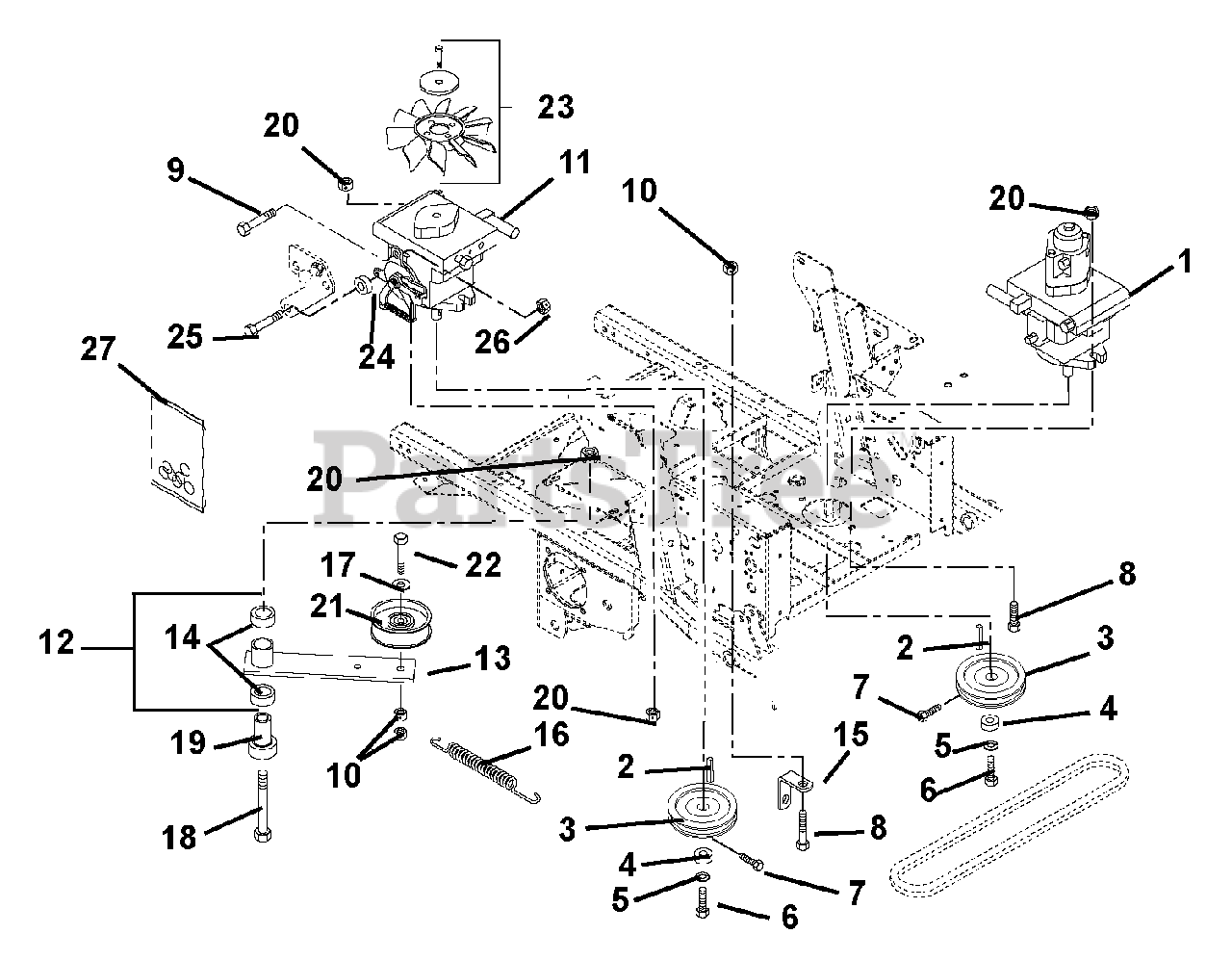

Hydrostatic Pumps & Idlers - XDZ Parts Diagram

  • Title

1

Gravely 00583400

PUMP - HYDRAULIC RTN W/AUX

Note: (992149, 150, 153, 154, 157)

$1943.99

$

Usually ships in 4-12 days

0

Gravely 00583500

PUMP - HYDRAULIC RTN W/O AUX

Note: (992148, 151, 152, 155)

$963.99

$

Usually ships in 4-12 days

0

2

Gravely 06611300

KEY, SQ 5 X 5 X 30MM PLAIN

$2.99

$

In Stock, Qty 6

0

3

Gravely 07300037

SHEAVE - POLY-V .671 X 4.125

$92.99

$

Usually ships in 4-12 days

0

4

Gravely 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$1.49

$

In Stock, only 4 left!

0

5

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$0.99

$

In Stock, Qty 9

0

6

Gravely 05975900

BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.49

$

In Stock, only 2 left!

0

7

Gravely 05980100

SCR-SKH .25-20 X .50 PH & OIL
(Superseded to 05900127)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$4.99

$

In Stock, Qty 12

0

9

Gravely 05947000

BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00583600

PUMP-HYD RTN THRU SHAFT F/FAN

$1644.99

$

Usually ships in 4-12 days

0

12

Gravely 09219000

ASSEMBLY,IDLER ARM GRD.DRIVE

Note: (Includes 13 & 14)

$102.99

$

In Stock, only 2 left!

0

13

Gravely 09217051

WMT, IDLER ARM GROUND DRIVE
(Superseded to 09217000)

$114.99

$

Usually ships in 4-12 days

0

14

Gravely 05435800

BRG, 1.00 X 1.12 X .75

$9.99

$

In Stock, Qty 20+

0

15

Gravely 09291151

ANCHOR, SPRING IDLER
(Superseded to 04411951)

$17.99

$

Usually ships in 4-12 days

0

16

Gravely 08336000

SPRING, EXTENSION
(Superseded to 08300728)

$28.99

$

In Stock, Qty 20+

0

17

Gravely 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$8.49

$

In Stock, only 3 left!

0

18

Gravely 05965800

BLT-HEX .50-13X3.50 GR5 YWZC
(Superseded to 05901937)

$5.49

$

In Stock, only 3 left!

0

19

Gravely 07000031

BEARING, PEDESTAL

$84.99

$

In Stock, Qty 9

0

20

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.99

$

In Stock, Qty 20+

0

21

Gravely 07312500

IDLER-FLAT 4.00 X .38 NWHAMSHR
(Superseded to 07300101)

$64.99

$

In Stock, Qty 20+

0

22

Gravely 05962900

BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

23

Gravely 09292400

FAN, HYDRO PUMP COOLING
(Superseded to 03368800)

$52.99

$

In Stock, only 4 left!

0

24

Gravely 03101900

SPACER .318X.430X.375

$

$

Not available

25

Gravely 05947500

BLT-HEX .31-18X1.25 GR5 YWZC
(Superseded to 05901803)

$2.99

$

In Stock, Qty 11

0

26

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

27

Gravely 59203700

KIT, PUMP SEAL (BDP-21L)

Note: (BDP-21A); (One kit required for each pump)

$92.99

$

Usually ships in 4-12 days

0
