992148 (PM 252M) - Gravely Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki (SN: 000101 - 000400) Seat And Hood Frame - XDZ Parts Diagram

Pro-Master 52" Zero-Turn Mower, 25hp Kawasaki

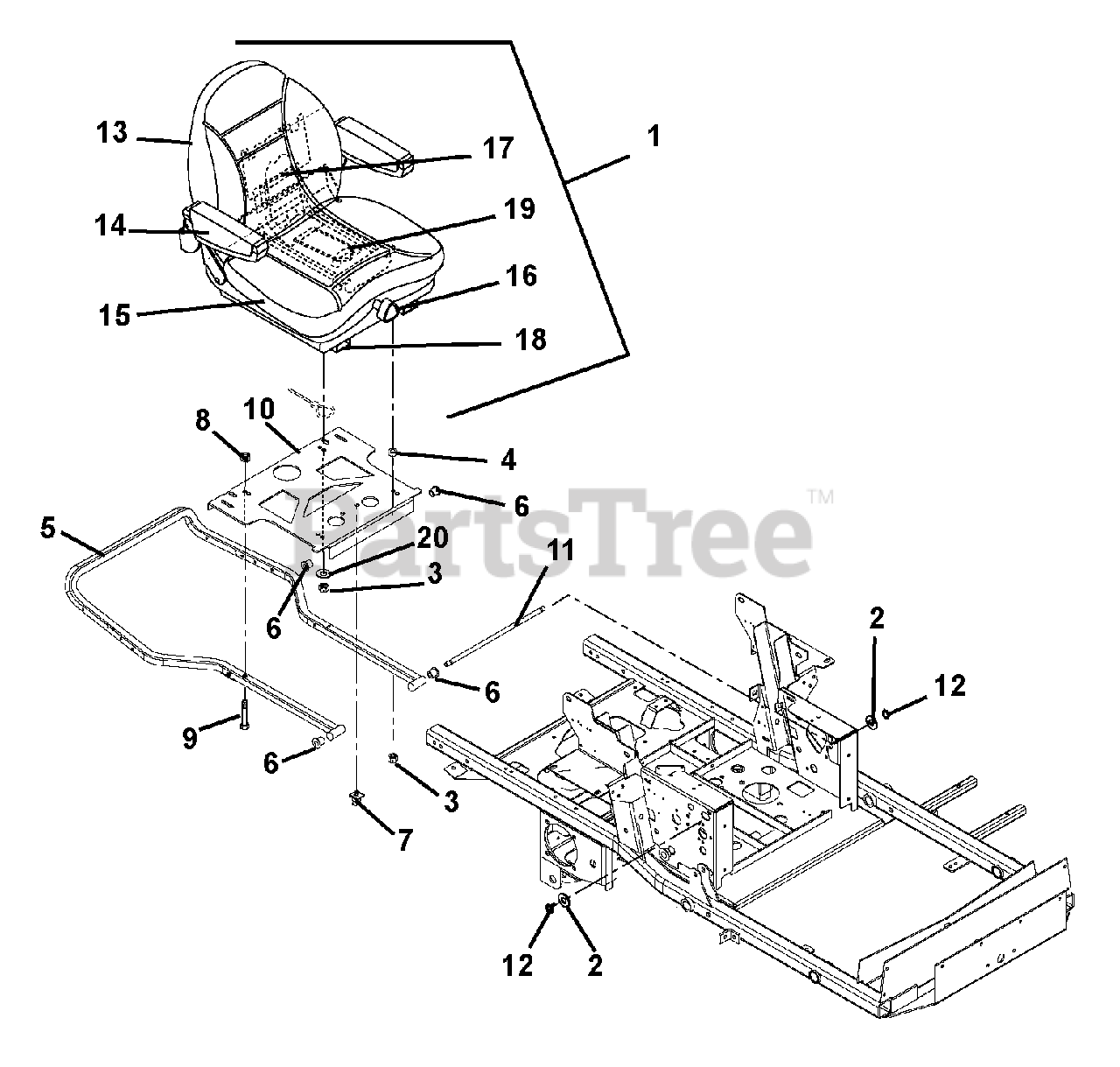

Seat And Hood Frame - XDZ Parts Diagram

  • Title

1

Gravely 00674000

Seat, Suspension, Light Gray
(Superseded to 03947200)

$925.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 4 left!

0

3

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 039145

Bushing, Sleeve .377 x .624 x .235
(Superseded to 05508900)

$9.99

$

In Stock, only 2 left!

0

5

Gravely 09293353

Weldment, Hood Frame

$277.99

$

Usually ships in 4-12 days

0

6

Gravely 034738

Bushing-Flange .515 x .750 x .745 x 1.00
(Superseded to 05521100)

$2.99

$

In Stock, Qty 18

0

7

Gravely 07534100

Clip

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 06542000

Nut, Locking Top Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

9

Gravely 07056300

Bolt, Rib Neck .38-16 x 1.50

$

$

Not available

10

Gravely 09259751

Weldment, Seat Pivot Plate
(Superseded to 03259951)

$

$

Not available

11

Gravely 09245400

Rod, Seat Frame Pivot

$131.99

$

Usually ships in 4-12 days

0

12

Gravely 05717100

Ring, Retaining External .500 x .050

$2.99

$

In Stock, only 2 left!

0

13

Gravely 59208800

Kit, Back Cushion, Light Gray

$431.99

$

Usually ships in 4-12 days

0

14

Gravely 59204500

Armrest

$

$

Not available

15

Gravely 59208900

Kit, Seat Cushion, Light Gray

$263.99

$

In Stock, only 3 left!

0

16

Gravely 59208000

Kit, Seat Knobs

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 59208100

Kit, Seat Back

$179.99

$

Usually ships in 4-12 days

0

18

Gravely 59207900

Kit, Seat Slides

$

$

Not available

19

Gravely 59207800

Kit, Seat, Spring and Saddle

$186.99

$

Usually ships in 4-12 days

0

20

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 15

0
