992156 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 000201 - 002499) Hydraulic Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel

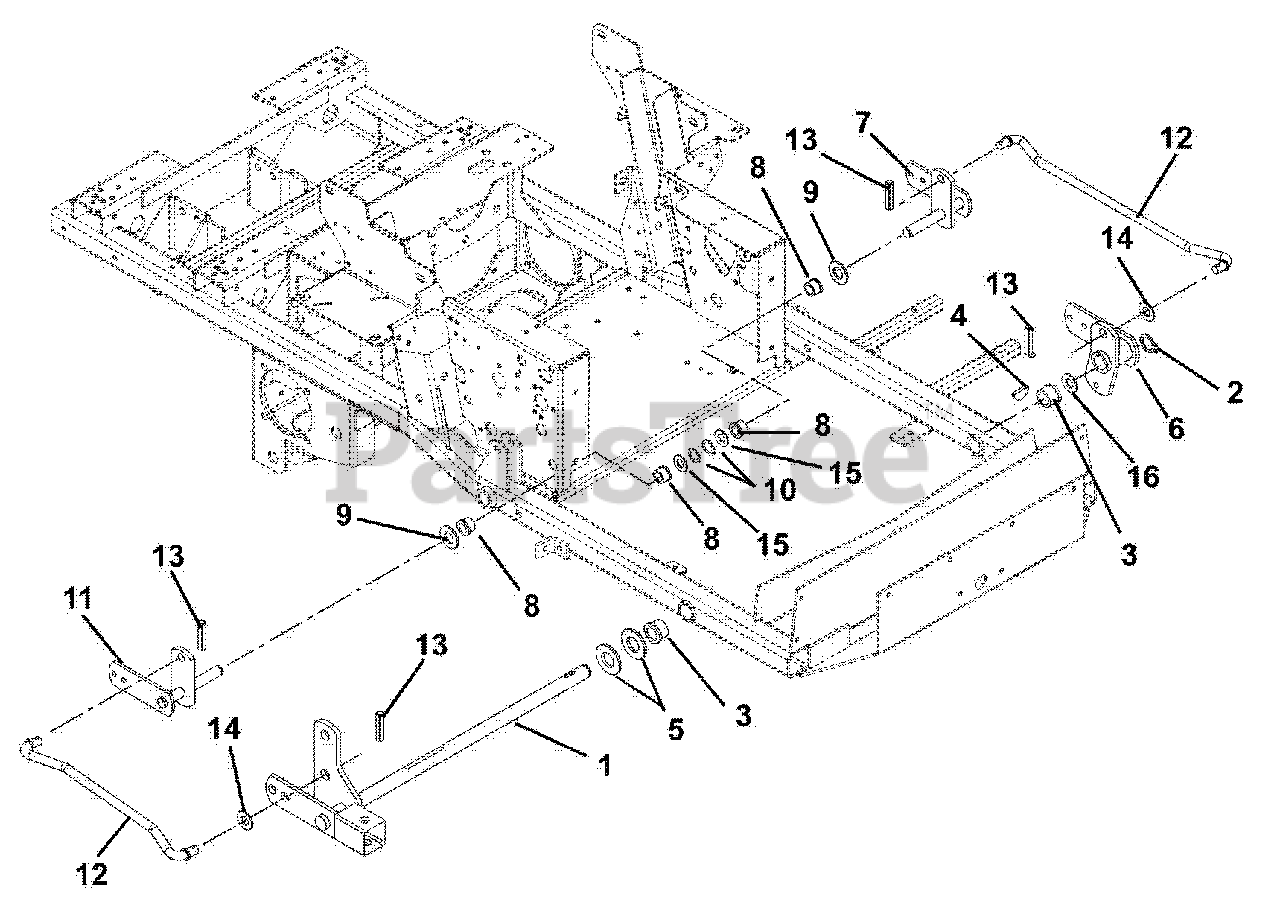

Hydraulic Deck Lift Parts Diagram

  • Title

1

Gravely 00456000

WMT, FRONT MOWER LIFT (HYD)

$280.99

$

Usually ships in 4-12 days

0

2

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.99

$

In Stock, only 2 left!

0

3

Gravely 05500034

BSHG,1.00ID X 1.125OD X 1.50LG

$7.99

$

In Stock, Qty 6

0

4

Gravely 06608900

KEY-WDRF .25X1.00 HRD #15

$4.99

$

In Stock, Qty 9

0

5

Gravely 06443000

WSHR-FL-STL- 1.062X2.0X.134 YZ
(Superseded to 06401203)

$5.99

$

In Stock, only 2 left!

0

6

Gravely 00441000

WMT, LH FRONT MOWER LIFT

$105.99

$

Usually ships in 4-12 days

0

7

Gravely 00499200

WMT-LH REAR LIFT ARM (DIESEL)
(Superseded to 04072100)

$105.99

$

Usually ships in 4-12 days

0

8

Gravely 05518400

BSHG-FLG .762X1.0X.580X1.48 NY

$5.99

$

In Stock, Qty 20+

0

9

Gravely 06413400

WSHR-HDND-THRST .758X1.23X.031

$3.99

$

In Stock, only 1 left!

0

10

Gravely 05714600

RG-RTNG-EXT .689X.078

$3.49

$

In Stock, only 2 left!

0

11

Gravely 00499100

WMT-RH REAR LIFT ARM (DIESEL)
(Superseded to 04072200)

$138.99

$

Usually ships in 4-12 days

0

12

Gravely 00185800

ROD, LIFT ASSIST 19.35"
(Superseded to 04063100)

$85.99

$

Usually ships in 4-12 days

0

13

Gravely 05800001

PIN-ROLL .250X1.25 STNLESS STL

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 06445100

WSHR-FL-STL .630X1.250X.062 YZ

$3.49

$

In Stock, only 1 left!

0

15

Gravely 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 06435300

WSHR-HDND-THRUST 1.00X1.55X.03

$5.99

$

In Stock, Qty 8

0
