992156 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 000201 - 002499) Radiator And Radiator Brackets Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel

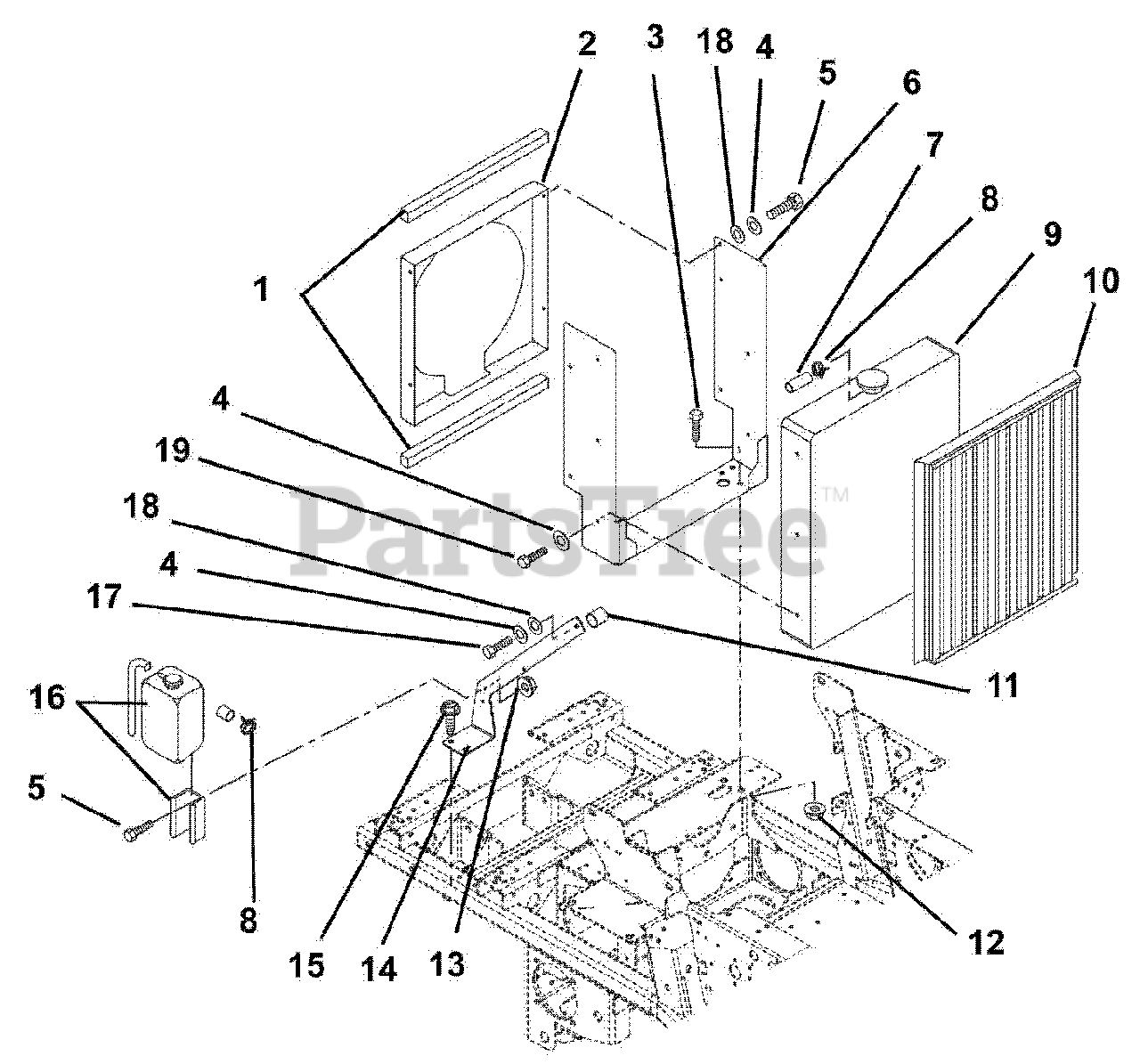

Radiator And Radiator Brackets Parts Diagram

  • Title

1

Gravely 00929000

SEAL, TRIM-LOK BULK .06 BBL 1'

$1.99

$

In Stock, Qty 6

0

2

Gravely 09266851

WMT, RADIATOR SHROUD

$74.99

$

Usually ships in 4-12 days

0

3

Gravely 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$2.49

$

In Stock, Qty 20+

0

4

Gravely 06308400

WSHR-LK .25X.062 REG YWZC
(Superseded to 06401009)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 05946800

BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 09265851

WMT, RADIATOR MOUNTING BKRT

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 00924300

GAS LINE-BULK 1/4" I.D.
(Superseded to 03278100)

$1.99

$

In Stock, Qty 20+

0

8

Gravely 06939100

CLAMP-HOSE WIRE .490/.510X.116

$4.99

$

In Stock, Qty 20+

0

9

Radiator (Comes with the engine)

Note: (Comes with the engine)

$

$

Not available

10

Gravely 09265400

SCREEN, RADIATOR (DIESEL)

$152.99

$

Usually ships in 4-12 days

0

11

Gravely 09235400

SPACER .328 X .76 X 1.01

$21.99

$

Usually ships in 4-12 days

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 06543500

NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$1.99

$

In Stock, Qty 20+

0

14

Gravely 09278651

BRKT, OVERFLOW MOUNTING - BLK

$62.99

$

Usually ships in 4-12 days

0

15

Gravely 07415400

SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$2.49

$

In Stock, Qty 20+

0

16

Reservoir Overflow (Comes with the engine)

Note: (Comes with the engine)

$

$

Not available

17

Gravely 05979200

BLT-HEX M6-1.00X45 YWZC

$

$

Not available

18

Gravely 06437300

WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 05975900

BLT-HEX M6-1X16 YWZC
(Superseded to 05902026)

$1.99

$

In Stock, only 2 left!

0
