992156 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel (SN: 000201 - 002499) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Daihatsu Diesel

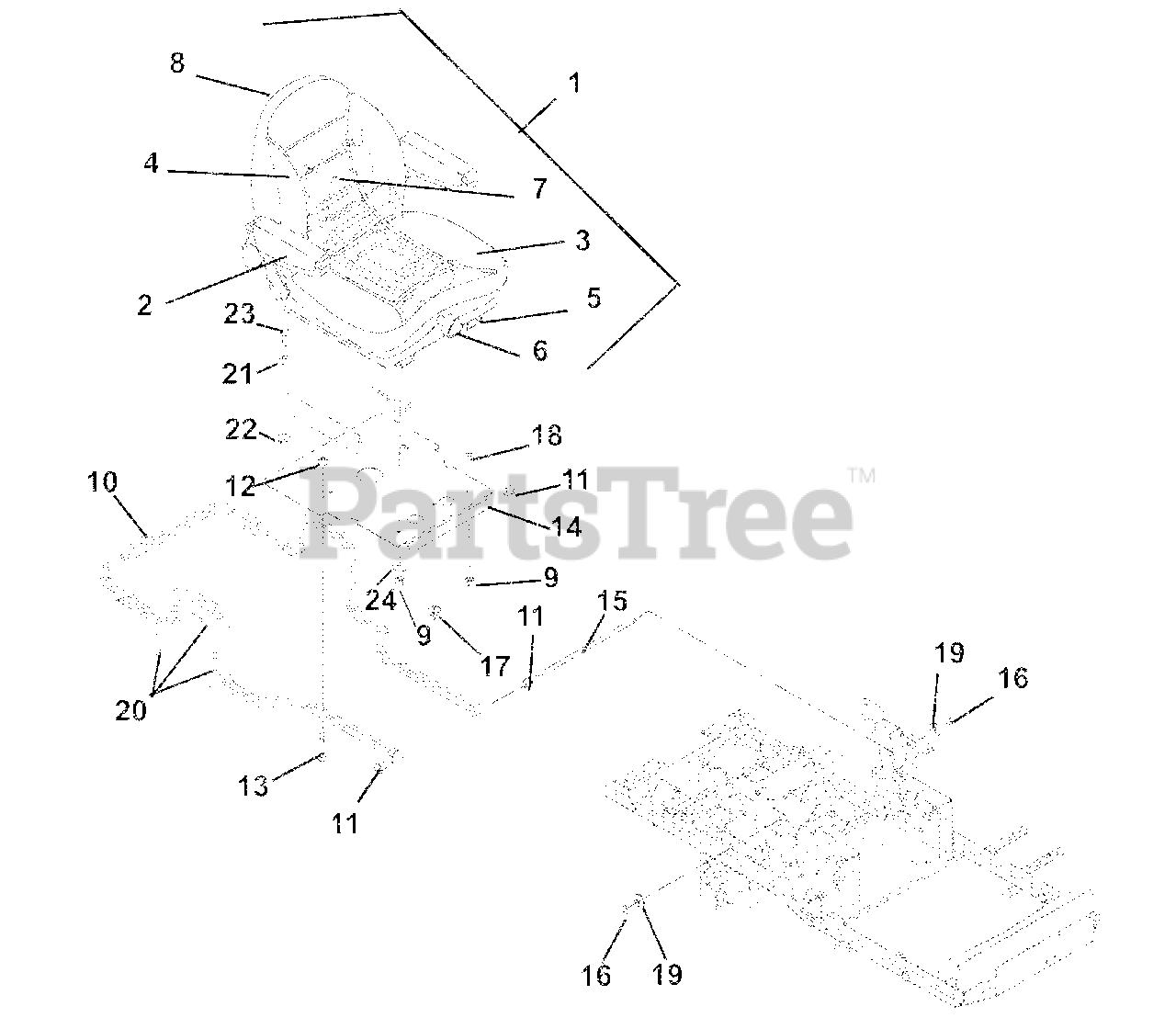

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 00674000

SEAT - SUSPENSION - LIGHT GRAY
(Superseded to 03947200)

$967.99

$

Usually ships in 4-12 days

0

2

Gravely 59204500

KIT,ARMREST PAD ONLY 1 PER KIT

Note: (1 per bag)

$

$

Not available

3

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$275.99

$

In Stock, only 2 left!

0

4

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$451.99

$

Usually ships in 4-12 days

0

5

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

6

Gravely 59208000

KIT-SEAT KNOB

$36.99

$

Usually ships in 4-12 days

0

7

Gravely 59207800

KIT-SPRING AND SADDLE

$195.99

$

Usually ships in 4-12 days

0

8

Gravely 59208100

KIT-SEAT BACK PANEL

$187.99

$

Usually ships in 4-12 days

0

9

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 09278753

WMT, HOOD FRAME

$550.99

$

Usually ships in 4-12 days

0

11

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$3.49

$

In Stock, Qty 20+

0

12

Gravely 06542000

NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.99

$

In Stock, Qty 20+

0

13

Gravely 07056300

BLT, .38-16X1.50 RIB NECK YWZC

$

$

Not available

14

Gravely 09274151

WMT, SEAT PIVOT MOUNT

$151.99

$

Usually ships in 4-12 days

0

15

Gravely 09245400

ROD - SEAT FRAME PIVOT

$138.99

$

Usually ships in 4-12 days

0

16

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$3.49

$

In Stock, Qty 14

0

17

Gravely 07534100

CLIP-.38

$10.99

$

In Stock, only 2 left!

0

18

Gravely 05508900

BSHG-SLV .377X.624X.235

$10.99

$

In Stock, only 1 left!

0

19

Gravely 06441900

WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$2.49

$

In Stock, Qty 20+

0

20

Gravely 00932300

VHB TAPE 4941F

$4.99

$

Usually ships in 4-12 days

0

21

Gravely 06537300

NUT-HEX .50-13 YWZC
(Superseded to 06500814)

$5.49

$

In Stock, only 2 left!

0

22

Gravely 06543600

NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$2.49

$

In Stock, Qty 20+

0

23

Gravely 05962000

BLT-HEX .50-13X1.50 GR5 YWZC
(Superseded to 05901631)

$5.49

$

In Stock, Qty 11

0

24

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$5.49

$

In Stock, Qty 14

0
