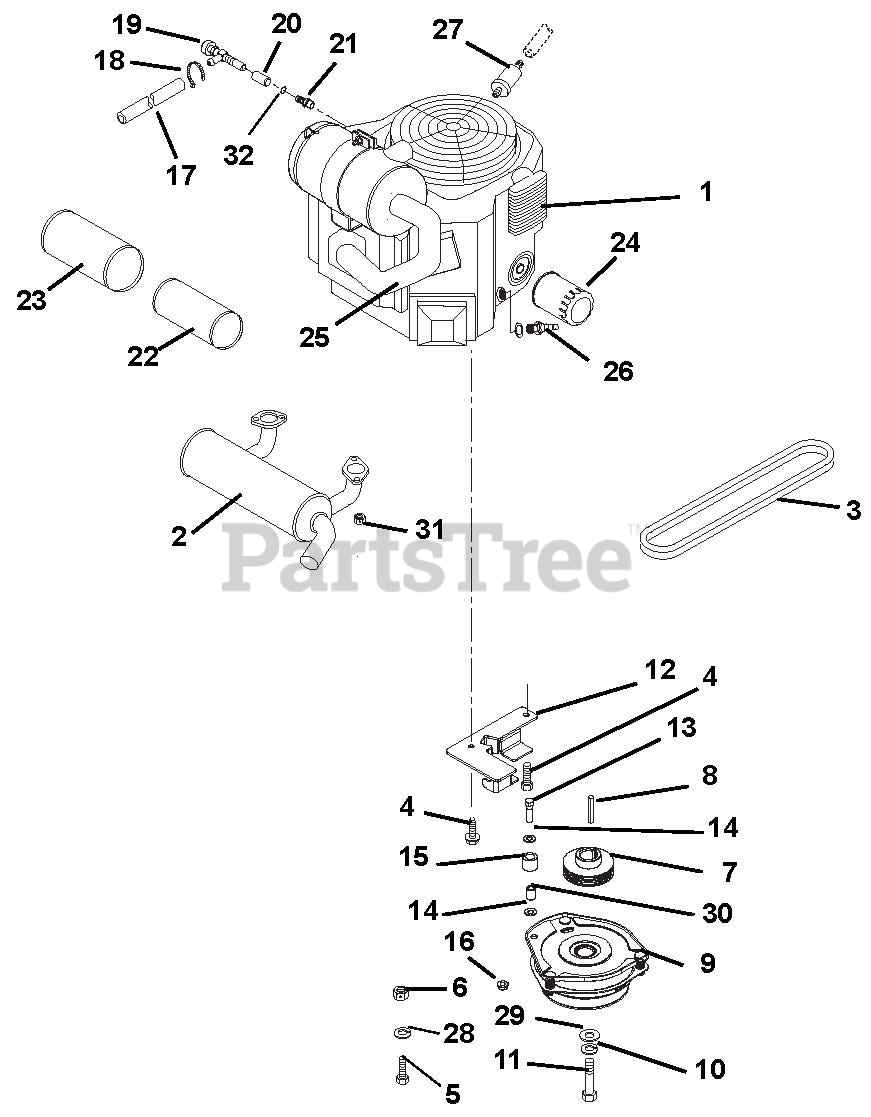

992159 (PM 260H XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 26hp Kawasaki (SN: 003000 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, 26hp Kawasaki

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08200521

Engine, Liquid Cooled Kawasaki

Note: (FD731V) (992152, 159, 176)

$

$

Not available

1

Gravely 08268100

Engine, Kohler

Note: (CV740S) (992150, 154)

$

$

Not available

1

Gravely 08200327

Engine, Kawasaki

Note: (FX751V) (992161, 162, 163, 164)

$

$

Not available

1

Gravely 08200144

Engine, Kohler Command Pro

Note: (CV750S) (992170)

$

$

Not available

1

Gravely 08200328

Engine, Kawasaki

Note: (FX850V) (992165, 166, 167, 168, 175)

$

$

Not available

2

Gravely 01057000

Muffler, Kawasaki Vertical

Note: (992161, 162, 163, 164, 165, 166, 167, 168, 175)

$277.99

$

Usually ships in 4-12 days

0

2

Gravely 00297100

Muffler, Kawasaki Liquid Cooled

Note: (992152, 159, 176)

$

$

Not available

2

Gravely 00470400

Muffler, Kohler Twin

Note: (992150, 154, 170)

$218.99

$

In Stock, only 3 left!

0

3

Gravely 07242000

Belt, Poly-V

$54.99

$

In Stock, Qty 9

0

4

Gravely 07417400

Screw, Tapping Hex Washer Head .38-16 x 1.50
(Superseded to 07400203)

Note: (992170)

$4.99

$

Usually ships in 4-12 days

0

4

Gravely 05964900

Bolt, Hex M8-1.25 x 25 Grade 8

Note: (992152, 159, 176)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 05900125

Bolt, Hex .38-16 x 1.25 FTH G5 EP30
(Superseded to 05901507)

Note: (992161, 162, 163, 164, 165, 166, 167, 168, 175)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 05957400

Bolt, Hex .31-18 x 1.75 Grade 5
(Superseded to 05901804)

Note: (992170)

$3.49

$

In Stock, Qty 5

0

6

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

Note: (992170)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300041

Sheave, Poly V 1.127 x 3.275

$95.99

$

In Stock, only 2 left!

0

8

Gravely 06600003

Key, Square .25 x 3.50 x .25 SA

$5.49

$

In Stock, only 2 left!

0

9

Gravely 00447100

Clutch, Electric

$730.99

$

In Stock, only 1 left!

0

10

Gravely 06309300

Washer, Locking .44 x .109
(Superseded to 06300121)

$2.99

$

In Stock, only 2 left!

0

11

Gravely 05900037

Bolt, Hex .44-20 x 3.00 Grade 5 YZ EP80

Note: (992150, 154, 170)

$7.49

$

In Stock, Qty 17

0

11

Gravely 05900039

Bolt, Hex .44-20 x 1.50 Grade 5 YZ EP80
(Superseded to 05902004)

Note: (992161, 162, 163, 164, 165, 166, 167, 168, 175)

$6.49

$

In Stock, only 2 left!

0

11

Gravely 05900126

Bolt, Hex M10 x 1.5 x .75 10.9 EP80

Note: (992152, 159, 176)

$

$

Not available

12

Gravely 00662251

Anchor, Clutch

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 05957900

Bolt-Hex .38-16 x 1.50 Grade 5
(Superseded to 05901928)

$1.99

$

In Stock, Qty 10

0

14

Gravely 06436200

Washer-Flat-Steel .406 x .812 x .065
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$6.49

$

In Stock, Qty 9

0

16

Gravely 06542000

Nut, Locking-Top-Flange .38-16
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

Gas Line, Bulk .25 I.D.

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07517300

Cable Tie LG 5-1/2

$

$

Not available

19

Gravely 00429000

Drain, 1/2" Drain

$40.99

$

Usually ships in 4-12 days

0

20

Gravely 07052200

Adapter, .38 NPTF

Note: (992150, 154, 170)

$15.99

$

Usually ships in 4-12 days

0

20

Gravely 07000008

Adapter, M20F- .375 NPT

Note: (992152, 159, 176)

$

$

Not available

21

Gravely 07024900

Nipple, Pipe .375-18 NPTF x 3.00

Note: (992150, 154, 170)

$

$

Not available

22

Gravely 21536900

Element, Inner Safety

$29.99

$

In Stock, only 2 left!

0

23

Gravely 21537000

Element, Outer Primary

$28.99

$

In Stock, Qty 20+

0

24

Gravely 21535800

Oil Filter
(Superseded to 49065-0724)

Note: (992152, 159, 161, 162, 163, 164, 165, 166, 167, 168, 175, 176)

$18.99

$

In Stock, Qty 20+

0

24

Gravely 21397200

Oil Filter
(Superseded to 20715100)

Note: (992150, 154, 170)

$21.99

$

In Stock, Qty 20+

0

25

Gravely 21536800

Hose, Air Intake

Note: (992150, 154)

$26.99

$

Usually ships in 4-12 days

0

26

Gravely 21536100

Spark Plug

Note: (992152, 159, 161, 162, 163, 164, 165, 166, 167, 168, 175, 176)

$3.99

$

In Stock, Qty 20+

0

26

Gravely 21544000

Spark Plug

Note: (992150, 154, 170)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 21541800

Fuel Filter

Note: (992152, 159, 176)

$27.99

$

Usually ships in 4-12 days

0

27

Gravely 21538400

Fuel Filter
(Superseded to 21573800)

Note: (992161, 162, 163, 164, 165, 166, 167, 168, 175)

$15.99

$

Usually ships in 4-12 days

0

27

Gravely 21539500

Fuel Filter

Note: (992150, 154, 170)

$12.99

$

In Stock, Qty 20+

0

28

Gravely 06307200

Washer, Locking-EXT.326 x .599 x .031
(Superseded to 06300125)

$0.99

$

In Stock, only 1 left!

0

29

Gravely 06443600

Washer, Flat Steel .469 x 2 x .25
(Superseded to 06401111)

Note: (992150, 154, 161, 162, 163, 164, 165, 166, 167, 168, 170)

$7.99

$

In Stock, Qty 20+

0

29

Gravely 06400906

Washer, Flat Steel .422 x 2.00 x .25

Note: (992152, 159, 176)

$

$

Not available

30

Gravely 08905500

Bushing, .407 x .625 x .813

$14.99

$

In Stock, only 2 left!

0

31

Gravely 06500018

Nut, Locking, Top M8-1.25
(Superseded to 06500919)

$2.49

$

In Stock, Qty 5

0

32

Gravely 05600003

O-Ring

Note: (992152, 159, 176)

$

$

Not available

33

Gravely 59205200

Brake Pole Module Replacement Kit for Clutch

Note: NOT SHOWN

$

$

Not available
