992162 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 002999) Mechanical Deck Lift Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

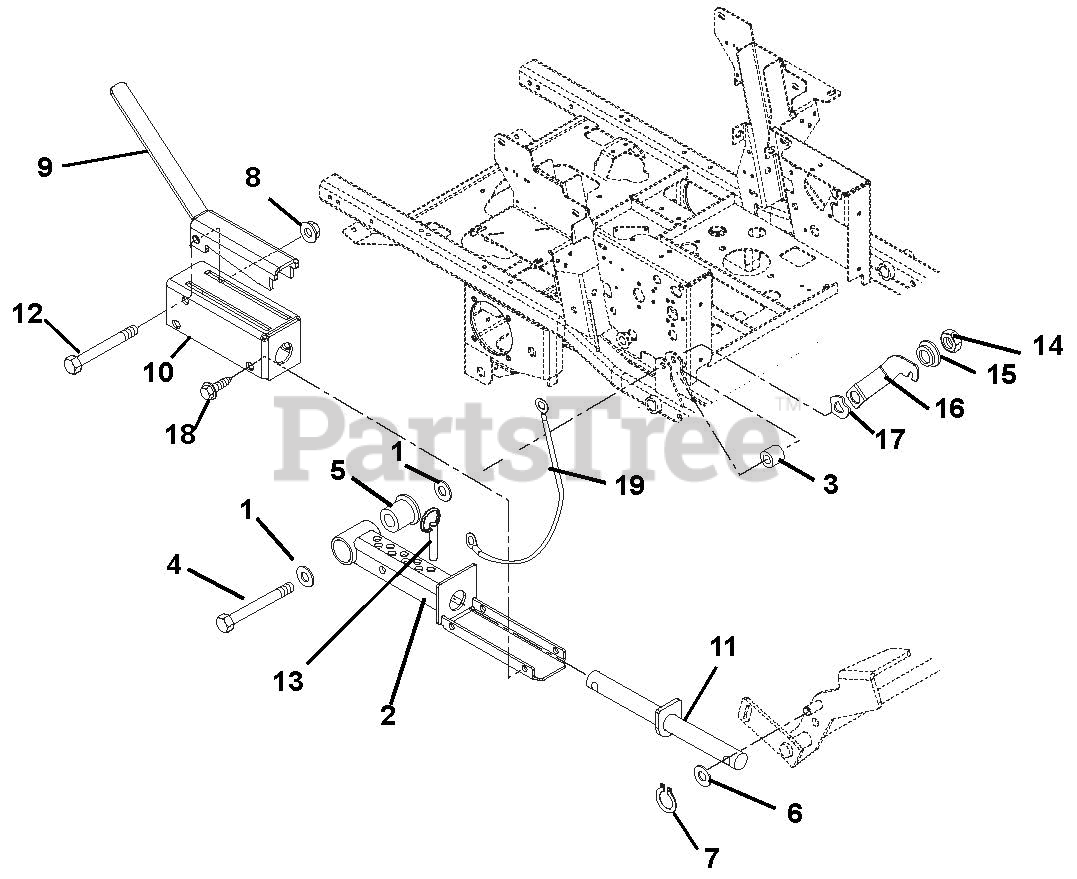

Mechanical Deck Lift Parts Diagram

  • Title

1

Gravely 06430200

WSHR-FL-STL .531X1.250X.10 YWZ
(Superseded to 06401128)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 09286251

WMT, MECHANICAL LIFT

$216.99

$

Usually ships in 4-12 days

0

3

Gravely 09215200

BUSHING, .516X1.000X1.050 LG

$34.99

$

Usually ships in 4-12 days

0

4

Gravely 05962200

@BLT-HEX .50-13X5.00 GR5 YWZC
(Superseded to 05901905)

$4.99

$

In Stock, Qty 10

0

5

Gravely 07000031

BEARING, PEDESTAL

$79.99

$

In Stock, Qty 7

0

6

Gravely 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

In Stock, Qty 15

0

7

Gravely 05709200

RG-RTNG-EXT .625X.050

$2.49

$

Usually ships in 4-12 days

0

8

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 18

0

9

Gravely 00586551

MECH DECK LIFT LOCK LEVER- BLK

$

$

Not available

10

Gravely 09299451

WMT, MECH LIFT COVER

$45.99

$

Usually ships in 4-12 days

0

11

Gravely 09291500

WMT, MECH. LIFT SHAFT (.62)

$150.99

$

Usually ships in 4-12 days

0

12

Gravely 05961100

@BLT-HEX .38-16X3.25 GR5 YWZC
(Superseded to 05901817)

$3.99

$

Usually ships in 4-12 days

0

13

Gravely 01593500

PIN, SPRING BALL .375OD X 1.50

$5.99

$

In Stock, only 2 left!

0

14

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 05532100

BSHG-FLG .515X.750X.285X1.120

$

$

Not available

16

Gravely 09291200

LATCH, FOOTBOARD

$12.99

$

Usually ships in 4-12 days

0

17

Gravely 09252000

WASHER-WAVE .760X1.120X.080

$3.49

$

Usually ships in 4-12 days

0

18

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, only 4 left!

0

19

Gravely 06900317

CABLE, 12.0 LANYARD, NYLON

$3.49

$

In Stock, only 2 left!

0
