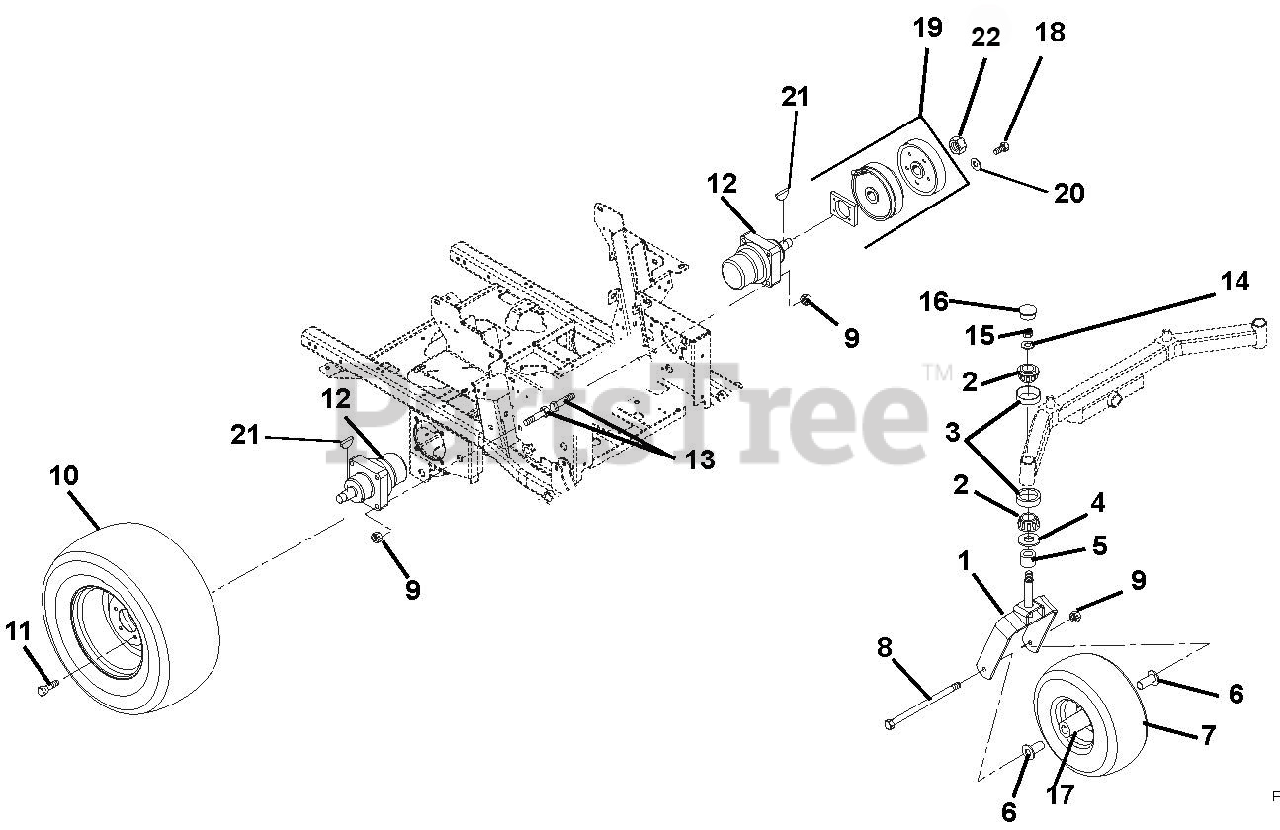

992162 (PM 260M XDZ) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki (SN: 000101 - 002999) Wheel Motors, Tires, Brakes & Front Forks Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kawasaki

Wheel Motors, Tires, Brakes & Front Forks Parts Diagram

  • Title

1

Gravely 00489853

FORK - FRONT
(Superseded to 59208500)

$180.99

$

In Stock, only 2 left!

0

2

Gravely 69000300

BRG, CONE W/ GREASE
(Superseded to 05406900)

$18.99

$

In Stock, only 3 left!

0

3

Gravely 05407000

BRG-CUP1.980X.420

$17.99

$

In Stock, Qty 11

0

4

Gravely 00531400

BEARING SEAL 1.5 X 2 X .18

$10.99

$

In Stock, Qty 15

0

5

Gravely 00531500

SPACER 1.005X1.5075X.375

$7.49

$

In Stock, Qty 8

0

6

Gravely 00675300

SPACER, FRONT WHEEL

$6.99

$

In Stock, only 1 left!

0

7

Gravely 07100212

TIRE/WHEEL ASSY, 15X6.00-6
(Superseded to 59219000)

$182.99

$

In Stock, Qty 12

0

7

Gravely 07100213

TIRE, 15X6.00-6
(Superseded to 07100905)

$68.99

$

In Stock, only 3 left!

0

8

Gravely 05961200

@BLT-HEX .50-13X9.00 GR5 YWZC
(Superseded to 05901930)

$10.99

$

In Stock, Qty 17

0

9

Gravely 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 07100207

TIRE/WHEEL ASSY, 24X11.50-12
(Superseded to 07101040)

Note: (992150, 152, 154, 159, 161, 162, 163, 164, 165, 166, 167, 168, 170, 175, 176)

$273.99

$

Usually ships in 4-12 days

0

10

Gravely 07100208

TIRE, 24X11.50-12
(Superseded to 07101041)

Note: (992150, 152, 154, 159, 161, 162, 163, 164, 165, 166, 167, 168, 170, 175, 176)

$227.99

$

Usually ships in 4-12 days

0

10

Gravely 07100211

TIRE/WHEEL ASSY, 23X10.00-12
(Superseded to 59101000)

Note: (992172, 173, 174)

$271.99

$

Usually ships in 4-12 days

0

10

Gravely 07100210

TIRE, 23X10.00-12
(Superseded to 07101043)

Note: (992172, 173, 174)

$205.99

$

Usually ships in 4-12 days

0

11

Gravely 07000143

BLT-LUG .50-20X1.38 YWZC

$3.49

$

In Stock, Qty 20+

0

12

Gravely 03255000

WHEEL MOTOR, 18E (CCW)

Note: (CCW) (992150, 152, 154, 159, 161, 162, 163, 164, 165, 166, 167, 168, 170, 175, 176)

$

$

Not available

12

Gravely 00676700

MOTOR, WHEEL HGM 15E (CCW)

Note: (992172, 173, 174)

$2857.99

$

Usually ships in 4-12 days

0

13

Gravely 05953500

BLT-HEX .50-13X2.75 YZ GR8
(Superseded to 05901836)

$3.49

$

Usually ships in 4-12 days

0

14

Gravely 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 13

0

15

Gravely 06536900

NUT-JAM CTRLK .75-16 YWZC

$5.99

$

In Stock, Qty 8

0

16

Gravely 00456800

CAP, DUST

$12.99

$

In Stock, Qty 9

0

17

Gravely 05435700

BRG, 25MM ID X 52MM OD X 15MM

$22.99

$

In Stock, Qty 20+

0

18

Gravely 05981600

BLT-HEX .31-18X1.50 GR8YZ EP30

$3.49

$

In Stock, Qty 6

0

19

Gravely 58904300

KIT, BRAKE SERVICE (1-SIDE)

$555.99

$

Usually ships in 4-12 days

0

20

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06607800

KEY-WDRF .31X1.00 SFT #B

$3.99

$

Usually ships in 4-12 days

0

22

Gravely 21549500

HG HEX NUT 1-20 SLOTED

Note: (CCW) (992150, 152, 154, 159, 161, 162, 163, 164, 165, 166, 167, 168, 170, 175, 176)

$25.99

$

Usually ships in 4-12 days

0
