992168 (PM 272H XDZ) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Kawasaki (SN: 000101 - 002999) Hydraulic Tank, Filter, Pumps & Hoses - XDZ Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Kawasaki

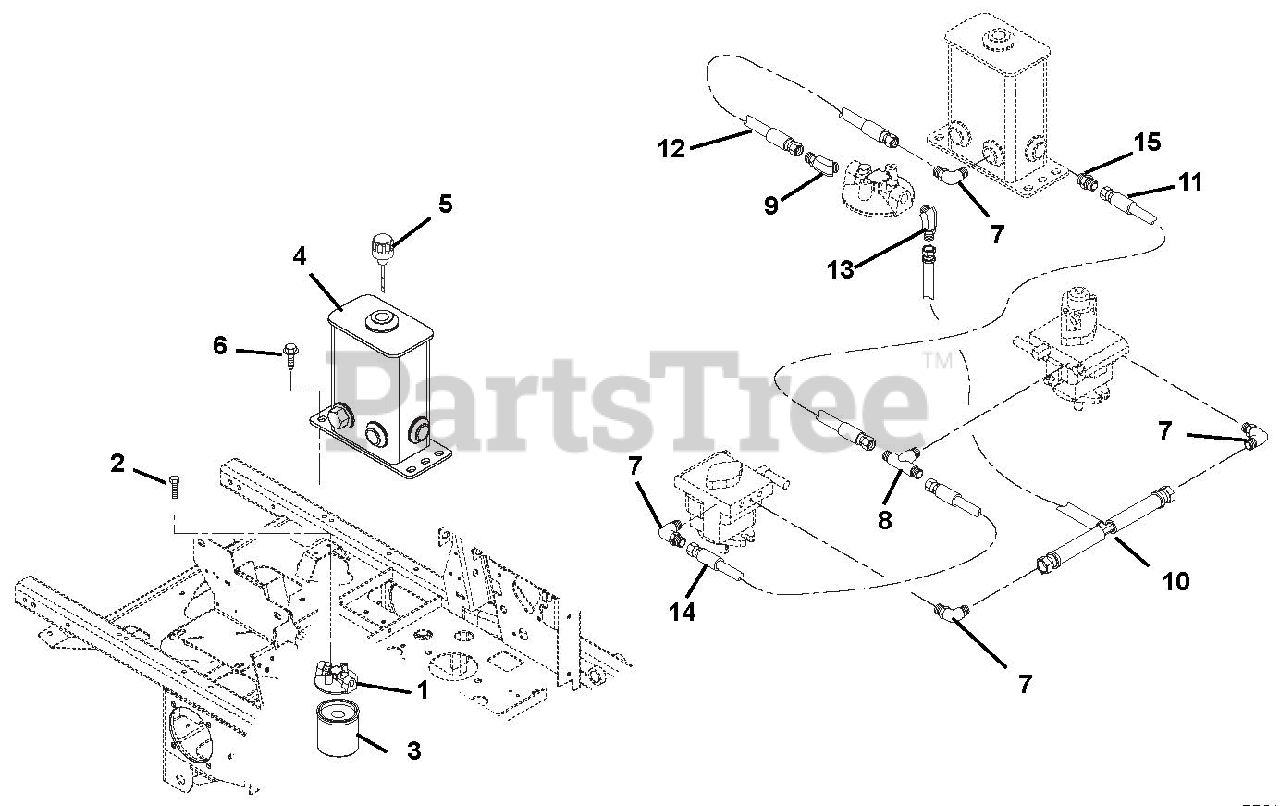

Hydraulic Tank, Filter, Pumps & Hoses - XDZ Parts Diagram

  • Title

1

Gravely 00672000

Head, Filter

$25.99

$

Usually ships in 4-12 days

0

2

Gravely 05900008

Bolt, Hex .25-20 x .50 Epoxy Grade 5
(Superseded to 05901918)

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 09414200

Oil Filter
(Superseded to 03931900)

Note: *Use Mobil 1 15W50 Extended Performance Synthetic Oil

$30.99

$

In Stock, Qty 9

0

4

Gravely 02985251

Weldment,Formed Hydraulic Tank-2 PORT

$200.99

$

Usually ships in 4-12 days

0

5

Gravely 00463000

Dipstick, Breather

$51.99

$

In Stock, only 1 left!

0

6

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

7

Gravely 07069600

Fitting, Hydraulic, 90 Degree Elbow, Steel M8F-M80

$35.99

$

Usually ships in 4-12 days

0

8

Gravely 07069500

Fitting, Hydraulic Tee M80-M80-M80

$62.99

$

Usually ships in 4-12 days

0

9

Gravely 07059900

Fitting, Hydraulic Straight M80-M80

$9.99

$

Usually ships in 4-12 days

0

10

Gravely 00364800

Hose, Tee Assembly, .50

$157.99

$

Usually ships in 4-12 days

0

11

Gravely 00391000

Hose, Hydraulic .50-19-0K FO8J0-FO8J0

$67.99

$

Usually ships in 4-12 days

0

12

Gravely 00589900

Hose, Hydraulic Molded

$

$

Not available

13

Gravely 07066200

Fitting, Hydraulic 45° M80-M80

$62.99

$

Usually ships in 4-12 days

0

14

Gravely 00364700

Hose, Hydraulic

$78.99

$

Usually ships in 4-12 days

0

15

Gravely 07059900

Adapter, Face Seal 8 x 8 .50 O-Ring 8 F5OLO-Steel

$9.99

$

Usually ships in 4-12 days

0
