992172 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, 27hp Kohler (SN: 000101 & Above) Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

Pro-Master 60" Zero-Turn Mower, 27hp Kohler

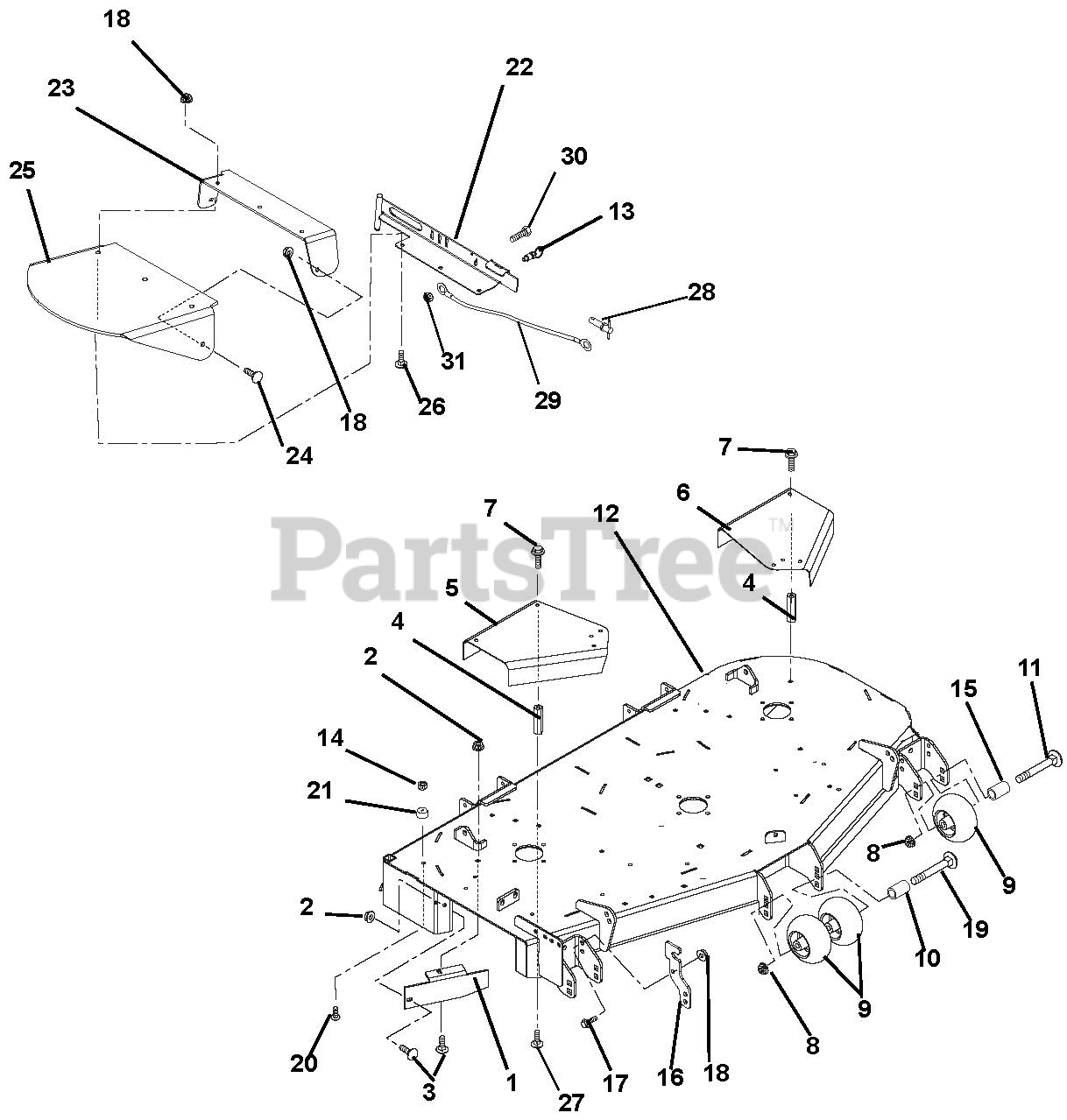

Deck, Discharge Chute, Anti-Scalp Rollers & Belt Covers Parts Diagram

  • Title

1

Gravely 00440853

52-in. Discharge Baffle

Note: (992150, 161, 163, 174, 176)

$38.99

$

Usually ships in 4-12 days

0

1

Gravely 00374153

60-in. Discharge Baffle

Note: (992152, 154, 159, 162, 164, 166, 172, 173, 175)

$29.99

$

In Stock, only 4 left!

0

1

Gravely 00358953

66-in. Discharge Baffle

Note: (992165, 167, 170)

$73.99

$

Usually ships in 4-12 days

0

1

Gravely 00442453

72-in. Discharge Baffle

Note: (992168)

$56.99

$

Usually ships in 4-12 days

0

2

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 06216100

Bolt, Round Head Square Neck .31-18 x 1.00 Grade 5
(Superseded to 06200231)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 07000027

Nut, Coupling .31-18 x 3.00

$29.99

$

In Stock, Qty 12

0

5

Gravely 00589553

52-in. Right Hand Spindle Guard

Note: (992150, 161, 163, 174, 176)

$76.99

$

Usually ships in 4-12 days

0

5

Gravely 00370653

60-in. Right Hand Spindle Guard

Note: (992152, 154, 159, 162, 164, 166, 172, 173, 175)

$70.99

$

In Stock, only 2 left!

0

5

Gravely 00378053

66/72-in. Right Hand Spindle Guard

Note: (992160, 165, 167, 168, 170)

$96.99

$

Usually ships in 4-12 days

0

6

Gravely 00438953

52-in. Left Hand Spindle Guard

Note: (992150, 161, 163, 174, 176)

$105.99

$

Usually ships in 4-12 days

0

6

Gravely 00371453

60-in. Left Hand Spindle Guard

Note: (992152, 154, 159, 162, 164, 166, 172, 173, 175)

$58.99

$

In Stock, only 4 left!

0

6

Gravely 00377953

66/72-in. Left Hand Spindle Guard

Note: (992160, 165, 167, 168, 170)

$96.99

$

Usually ships in 4-12 days

0

7

Gravely 07000018

Bolt, SEMS .31-18 x .62

$3.99

$

In Stock, Qty 6

0

8

Gravely 06500010

Nut .50-13 Nyloc Flange
(Superseded to 06500810)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 00473600

Anti-Scalp Wheel
(Superseded to 03905900)

$13.99

$

In Stock, Qty 20+

0

10

Gravely 00473800

Spacer

$22.99

$

In Stock, Qty 20+

0

11

Gravely 06225900

Bolt-Round Head Square Neck .50-13 x 5.00
(Superseded to 06200505)

$

$

Not available

12

Gravely 00439553

52-in. Mower Deck

Note: (992150, 161, 163, 174, 176)

$

$

Not available

12

Gravely 00452853

60-in. Mower Deck
(Superseded to 59224200)

Note: (992152, 154, 159, 162, 164, 166, 172, 173, 175)

$1345.99

$

Usually ships in 4-12 days

0

12

Gravely 00358753

66-in. Mower Deck

Note: (992165, 167, 170)

$

$

Not available

12

Gravely 00376753

72-in. Mower Deck

Note: (992168)

$1825.99

$

Usually ships in 4-12 days

0

13

Gravely 07000037

Pin, Plunger Pull .50-13 Thread x .310 Diameter

$11.99

$

In Stock, Qty 8

0

14

Gravely 06529800

Nut, Locking, Center .31-18
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

15

Gravely 00473700

Spacer, .510 x .625 x 3.35

$19.99

$

In Stock, Qty 20+

0

16

Gravely 00474753

Chute, Storage Bracket

$29.99

$

Usually ships in 4-12 days

0

17

00590013

Bolt, Hex .38-16 x 1.00

$

$

Not available

18

Gravely 06545500

Nut, .38-16 Nyloc Flange
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

19

Gravely 06206400

Bolt, Round Head Square Neck .50-13 x 8.50
(Superseded to 06200321)

$7.99

$

In Stock, Qty 20+

0

20

Gravely 06212100

Bolt, Round Head Square Neck .31-18 x 1.50
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

21

Gravely 07500009

Bumper, Recessed 1.50 x .63 , .31 Thru Hole

$6.49

$

In Stock, only 2 left!

0

22

Gravely 00472553

52-inch and 60-inch Discharge Chute Mounting Weldment
(Superseded to 04727953)

Note: (992150, 152, 154, 159, 161, 162, 163, 164, 166, 172, 173, 174, 175, 176)

$131.99

$

In Stock, only 1 left!

0

22

Gravely 00472653

66/72-inch Discharge Chute Mounting Weldment
(Superseded to 00980653)

Note: (992165, 167, 168, 170)

$168.99

$

In Stock, only 1 left!

0

23

Gravely 00472353

Rubber Discharge Chute Support

$127.99

$

Usually ships in 4-12 days

0

24

Gravely 06223600

Bolt, Round Head Square Neck .38-16 x 1.00 Grade 5
(Superseded to 06200313)

$2.99

$

In Stock, only 3 left!

0

25

Gravely 00377800

Chute, Rubber Discharge

$93.99

$

In Stock, only 2 left!

0

26

Gravely 06224100

Bolt, Round Head Square Neck .38-16 x 1.25 Grade 5
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

27

Gravely 06200002

Bolt, Round Head Square Neck .31-18 x .75
(Superseded to 06200425)

$4.99

$

In Stock, Qty 7

0

28

Gravely 01593500

Pin, Spring Ball .375OD x 1.50

Note: (992165, 167, 170)

$6.49

$

In Stock, Qty 12

0

29

Gravely 06900321

Cable, 6.0 LANYARD, Nylon

Note: (992165, 167, 170)

$6.49

$

In Stock, only 2 left!

0

30

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

Note: (992165, 167, 170)

$1.49

$

In Stock, Qty 12

0

31

Gravely 06543500

Nut, Locking-Top-Flange .25-20
(Superseded to 06500903)

Note: (992165, 167, 170)

$1.49

$

In Stock, Qty 6

0
