992182 (PM 260H XDZ LPG) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane

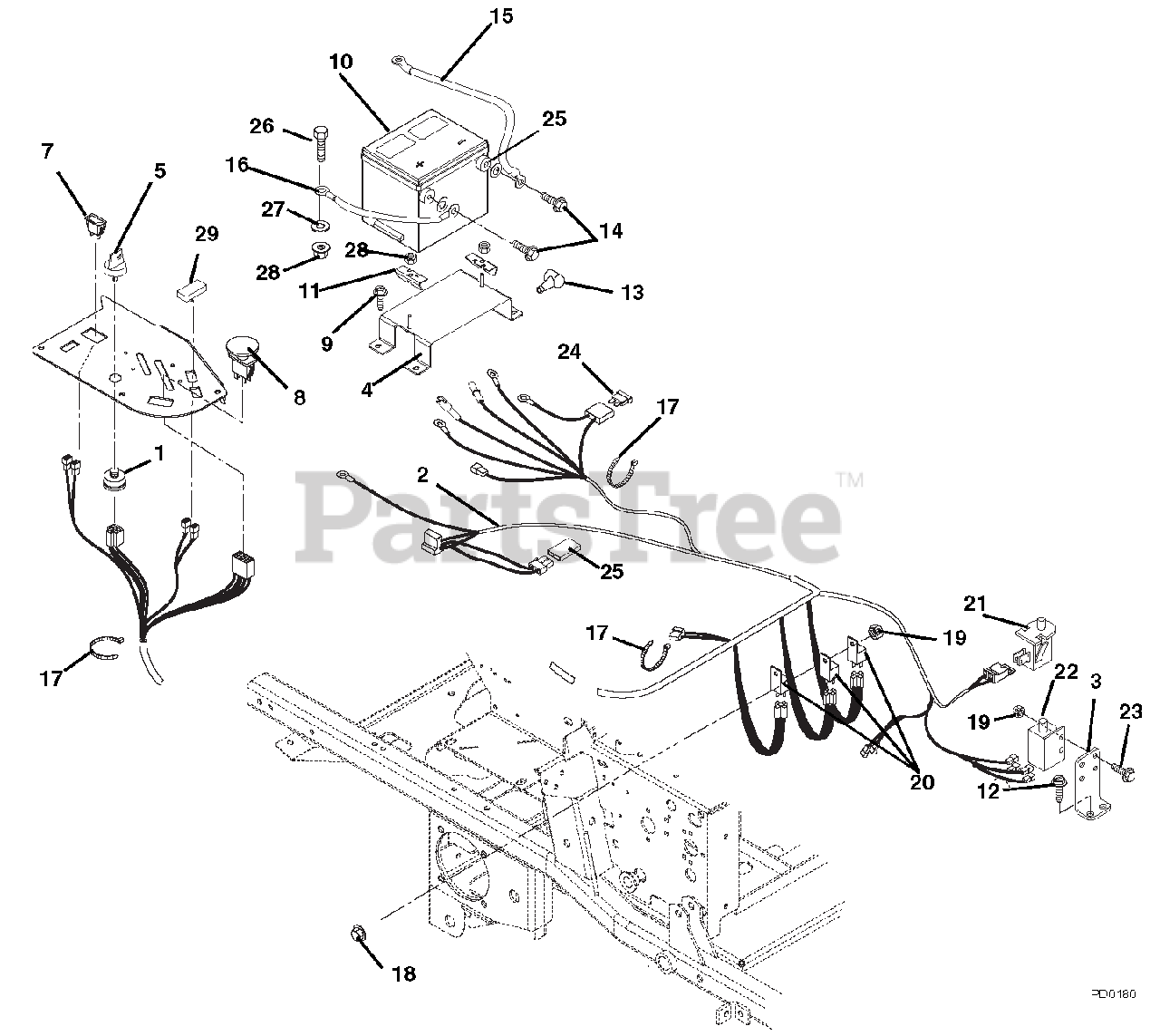

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

SWITCH, IGNITION
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

2

Gravely 03286300

HARNESS - MZ VERTICAL A/C
(Superseded to 04294000)

$193.99

$

In Stock, only 3 left!

0

3

Gravely 09275851

MOUNT, SAFETY SWITCH

$22.99

$

Usually ships in 4-12 days

0

4

Gravely 09266551

WMT, BATTERY SUPPORT

$

$

Not available

5

Gravely 09287000

KEY, W/ SHIELD

$17.99

$

In Stock, Qty 20+

0

6

Gravely 21510400

IGNITION KEY SET

$10.99

$

In Stock, only 1 left!

0

7

Gravely 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$25.99

$

In Stock, Qty 11

0

8

Gravely 01545600

SWITCH, CLUTCH

$27.99

$

In Stock, Qty 20+

0

9

Gravely 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

10

Gravely 00525500

BATTERY, GROUP 70 450 CCA 35 A

$

$

Not available

11

Gravely 09266600

BRKT, BATTERY HOLD-DOWN

$18.99

$

Usually ships in 4-12 days

0

12

Gravely 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 00525800

BOOT, BATTERY TERMINAL-RED

$8.49

$

Usually ships in 4-12 days

0

14

Gravely 00526400

BATT TERMINAL SCREW

$

$

Not available

15

Gravely 00609900

CABLE-POS BATT W/BOOTS 4 X 48
(Superseded to 03287000)

$32.99

$

Usually ships in 4-12 days

0

16

Gravely 09278100

CABLE, NEGATIVE BATTERY 49.00

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

18

Gravely 06116700

@SCR-MCH 10-24X.50 HWH YWZC
(Superseded to 05901825)

$0.99

$

In Stock, Qty 20+

0

19

Gravely 06536000

NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00432100

RELAY,SEALED W/DIODE
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

21

Gravely 02754100

SWITCH- SNAP MTG N.O.

$9.99

$

In Stock, Qty 17

0

22

Gravely 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, Qty 17

0

23

Gravely 06116900

SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 11

0

24

Gravely 00524600

FUSE, 30 AMP.

Note: (Included with Harness)

$5.99

$

Usually ships in 4-12 days

0

25

Gravely 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

26

Gravely 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.99

$

In Stock, Qty 20+

0

27

Gravely 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

29

Gravely 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$7.99

$

In Stock, Qty 8

0
