992182 (PM 260H XDZ LPG) - Gravely Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane (SN: 000101 & Above) Seat And Hood Frame Parts Diagram

Pro-Master 60" Zero-Turn Mower, 31hp Kawasaki, Propane

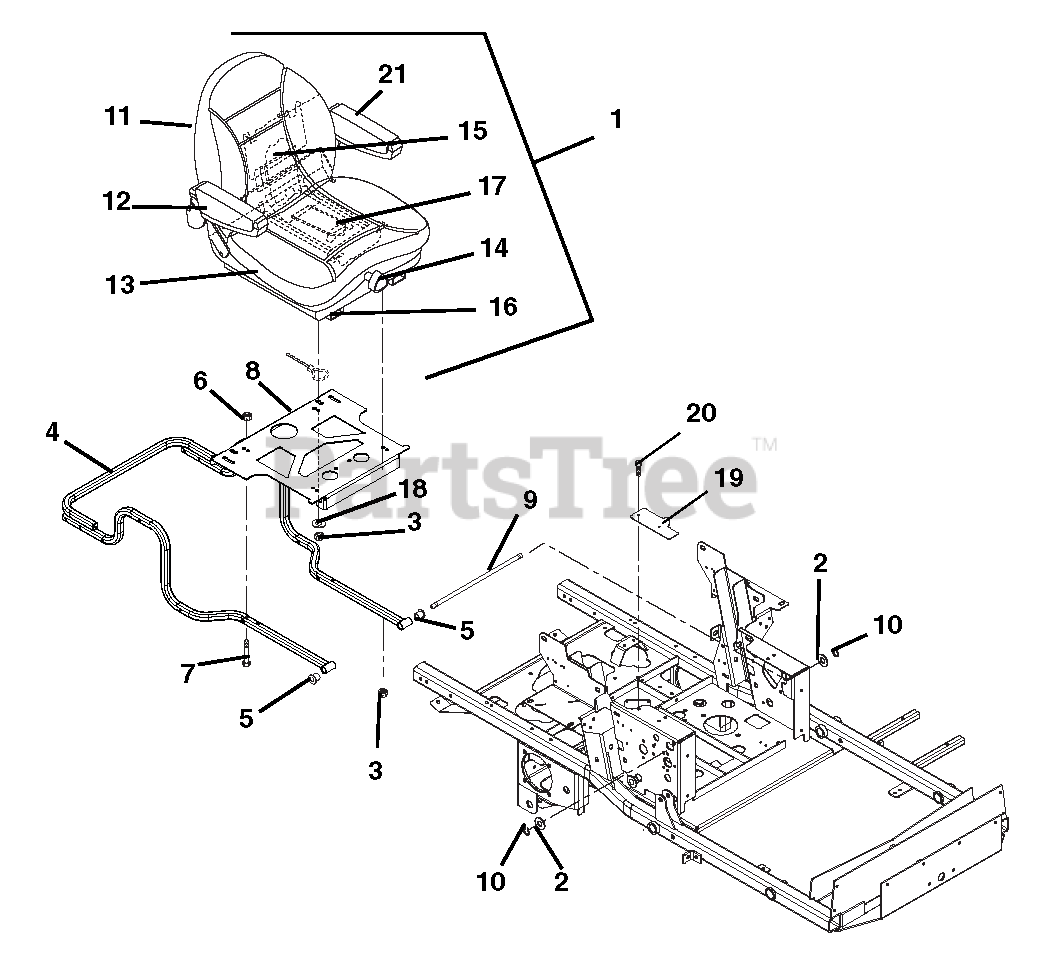

Seat And Hood Frame Parts Diagram

  • Title

1

Gravely 03947200

SEAT-SUSP-LT GRY-SEAT BLT BUSH

$925.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 00974053

WMT, HOOD SUPPORT, LPG

$

$

Not available

5

Gravely 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.99

$

In Stock, Qty 20+

0

6

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07056300

BLT, .38-16X1.50 RIB NECK YWZC

$

$

Not available

8

Gravely 09274151

WMT, SEAT PIVOT MOUNT

$145.99

$

Usually ships in 4-12 days

0

9

Gravely 09245400

ROD - SEAT FRAME PIVOT

$131.99

$

Usually ships in 4-12 days

0

10

Gravely 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.99

$

In Stock, Qty 15

0

11

Gravely 59208800

KIT-BACK CUSHION-LIGHT GRAY

$431.99

$

Usually ships in 4-12 days

0

12

Gravely 59210400

KIT-RH ARMREST ASSEMBLY REPLAC

$142.99

$

Usually ships in 4-12 days

0

13

Gravely 59208900

KIT-SEAT CUSHION-LIGHT GRAY

$263.99

$

In Stock, only 2 left!

0

14

Gravely 59208000

KIT-SEAT KNOB

$34.99

$

Usually ships in 4-12 days

0

15

Gravely 59208100

KIT-SEAT BACK PANEL

$179.99

$

Usually ships in 4-12 days

0

16

Gravely 59207900

KIT-SEAT SLIDE

$

$

Not available

17

Gravely 59207800

KIT-SPRING AND SADDLE

$186.99

$

Usually ships in 4-12 days

0

18

Gravely 06446300

WSHR-FL-STL .344X1.125X.135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 18

0

19

Gravely 00978651

PLATE, BLOCK OFF

$

$

Not available

20

Gravely 07414200

SCR-TAP .25-20X.75 HWH TR YWZ
(Superseded to 07400131)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 59210500

KIT-LH ARMREST ASSEMBLY REPLAC

$142.99

$

Usually ships in 4-12 days

0
