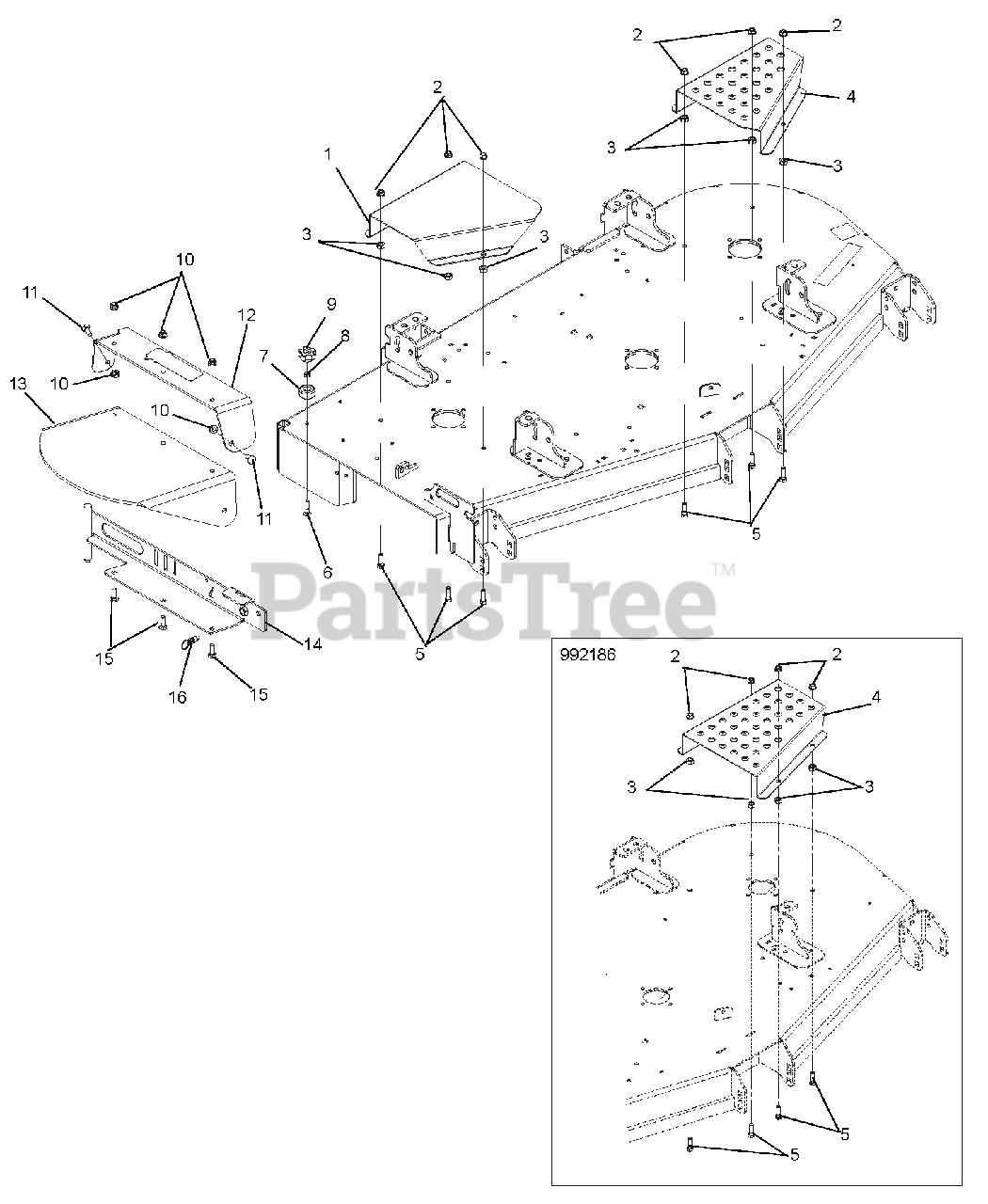

992185 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Belt Covers Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

Belt Covers Parts Diagram

  • Title

1

Gravely 03982251

GUARD,RH DECK BELT,60-66

Note: (185, 186, 187)

$62.99

$

Usually ships in 4-12 days

0

Gravely 03982151

GUARD,RH DECK BELT,44-52

Note: (184)

$51.99

$

Usually ships in 4-12 days

0

2

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

Note: (184, 185, 187)

$1.99

$

In Stock, Qty 20+

0

Gravely 06534900

NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

Note: (186)

$1.99

$

In Stock, Qty 20+

0

3

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

Note: (184, 185, 187)

$1.99

$

In Stock, Qty 20+

0

Gravely 07001525

NUT-HEAVY HEX .38-16 YWZC
(Superseded to 06500823)

Note: (186)

$1.99

$

In Stock, Qty 20+

0

4

Gravely 03977251

GUARD,LH DECK BELT,60

Note: (185, 187)

$73.99

$

Usually ships in 4-12 days

0

Gravely 03977351

GUARD,LH DECK BELT,66

Note: (186)

$

$

Not available

Gravely 03977151

GUARD,LH DECK BELT,44-52

Note: (184)

$92.99

$

Usually ships in 4-12 days

0

5

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

Note: (184, 185, 187)

$1.99

$

In Stock, Qty 20+

0

Gravely 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

Note: (186)

$1.99

$

In Stock, Qty 20+

0

6

Gravely 06212100

@BLT-RDHDSQNK .31-18X1.50 G5YZ
(Superseded to 06200233)

$1.99

$

In Stock, Qty 12

0

7

Gravely 07500009

BUMPER,RECESSED1.50X.63 W/.31

$6.49

$

In Stock, only 4 left!

0

8

Gravely 06529800

NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.99

$

In Stock, Qty 20+

0

9

Gravely 07534800

KNOB-CLAMPING, .312-18 NYLOC

$3.99

$

In Stock, Qty 20+

0

10

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 06223600

BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.99

$

In Stock, Qty 20+

0

12

Gravely 00472353

RUBBER DISCH CHUTE SUPPORT-RED

$127.99

$

In Stock, only 1 left!

0

13

Gravely 00377800

CHUTE, RUBBER DISCHARGE

$93.99

$

In Stock, only 4 left!

0

14

Gravely 00472653

72" DISCH CHUTE MTG WMT - RED
(Superseded to 00980653)

Note: (186)

$168.99

$

Usually ships in 4-12 days

0

Gravely 00472553

52"-60" DISCH CHUTE MTG WMT-RD
(Superseded to 04727953)

Note: (185, 184, 187)

$131.99

$

In Stock, only 1 left!

0

15

Gravely 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.99

$

In Stock, Qty 20+

0

16

Gravely 07000037

PULL PIN,.50-13THDX.310 PLNGR

$11.99

$

In Stock, Qty 7

0
