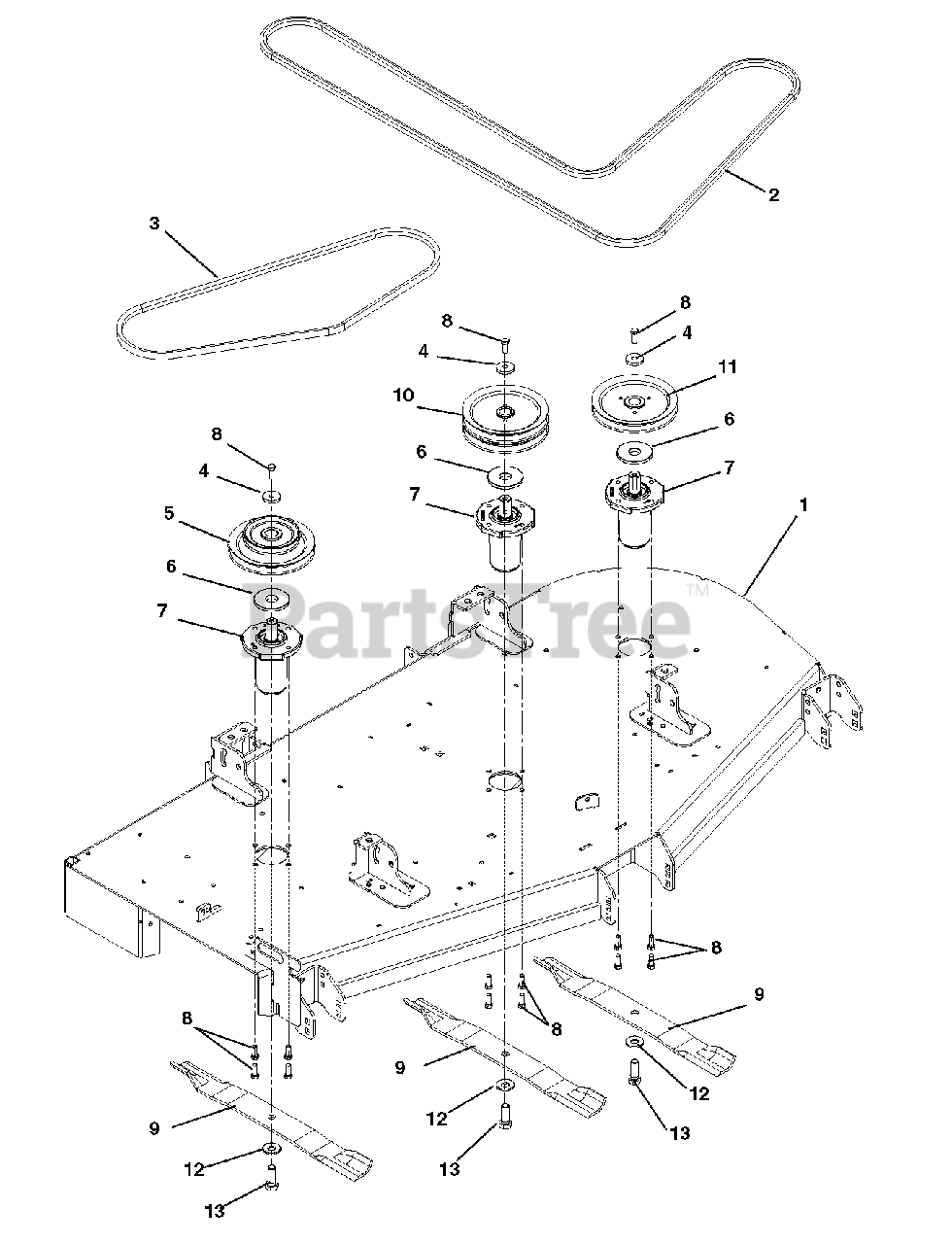

992185 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Deck, Belts, Blades And Spindles Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

Deck, Belts, Blades And Spindles Parts Diagram

  • Title

1

Gravely 03874653

PT260 SIDE DISCH DECK WMT-RED
(Superseded to 59224700)

Note: (185, 187)

$1143.99

$

Usually ships in 4-12 days

0

Gravely 03874753

PT266 SIDE DISCH DECK WMT-RED

Note: (186)

$1579.99

$

Usually ships in 4-12 days

0

Gravely 03874553

PT252 SIDE DISCH DECK WMT-RED
(Superseded to 59224800)

Note: (184)

$1053.99

$

Usually ships in 4-12 days

0

2

Gravely 07200510

HEX BELT, BB-WRAPPED

Note: (185, 187)

$151.99

$

In Stock, Qty 20+

0

Gravely 07200520

HEX BELT, BB-WRAPPED

Note: (186)

$144.99

$

Usually ships in 4-12 days

0

Gravely 07200509

HEX BELT, BB-WRAPPED

Note: (184)

$134.99

$

In Stock, Qty 10

0

3

Gravely 07200038

V-BELT, B-COGGED

Note: (185, 187)

$68.99

$

In Stock, Qty 20+

0

Gravely 07200435

V-BELT, B-COGGED

Note: (186)

$62.99

$

In Stock, only 2 left!

0

Gravely 07200036

V-BELT, B-COGGED

Note: (184)

$63.99

$

In Stock, Qty 20+

0

4

Gravely 06400006

WSHR,FLT STL.406X1.50X.245YWZC
(Superseded to 06401110)

$4.99

$

In Stock, Qty 20+

0

5

Gravely 07329167

PULLEY, DBL-1"IDX6.75"&4.25"OD

Note: (185, 187)

$87.99

$

In Stock, Qty 19

0

Gravely 07300427

SHV,DBL 1"ID X 7.25" & 4.75"OD
(Superseded to 59217600)

Note: (186)

$100.99

$

Usually ships in 4-12 days

0

Gravely 07332267

PULLEY, DOUBLE-1"IDX3.50"&6.0

$81.99

$

In Stock, Qty 10

0

6

Gravely 00481000

RETAINER, GREASE

$10.99

$

In Stock, Qty 12

0

7

Gravely 59202600

ASM,MAINT FREE SPINDLE
(Superseded to 59225700)

$361.99

$

In Stock, Qty 20+

0

8

Gravely 05900013

BLT-HEX .38-16X1.0 GR8 YZ EP30
(Superseded to 05901721)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 09081200

BLADE, MOWER (20.50")

Note: (20.50") (185, 187)

$29.99

$

In Stock, Qty 20+

0

Gravely 00360200

BLADE, 22.50" MOWER

Note: (186)

$34.99

$

Usually ships in 4-12 days

0

Gravely 00450300

BLADE, 18.00" MOWER (HI-LIFT)

Note: (HI-LIFT) (184)

$29.99

$

In Stock, Qty 20+

0

10

Gravely 07328867

PULLEY, DOUBLE-1"ID X 6.75"OD
(Superseded to 59211500)

Note: (185, 187)

$93.99

$

In Stock, Qty 20+

0

Gravely 09253300

WLDMT, SHEAVE (DOUBLE) 7.25
(Superseded to 59217800)

Note: (DOUBLE) 7.25 (186)

$166.99

$

Usually ships in 4-12 days

0

Gravely 07332367

PULLEY, DOUBLE
(Superseded to 07332300)

Note: (184)

$80.99

$

In Stock, Qty 16

0

11

Gravely 07328967

PULLEY, V-1" ID X 6.75" OD
(Superseded to 59211600)

Note: (185, 187)

$84.99

$

In Stock, Qty 20+

0

Gravely 07300428

SHEAVE,SINGLE 1.0"ID X 7.25"OD
(Superseded to 59217700)

Note: (186)

$87.99

$

Usually ships in 4-12 days

0

Gravely 07332167

PULLEY, SINGLE-1"ID X 6" OD
(Superseded to 59211700)

Note: (184)

$83.99

$

In Stock, Qty 13

0

12

Gravely 06445700

WSHR-BLVL .669X1.535X.138

$5.49

$

In Stock, Qty 20+

0

13

Gravely 05978900

BLT-HEX .62-18X1.75 GR8 YWZC
(Superseded to 05901822)

$3.99

$

In Stock, Qty 20+

0
