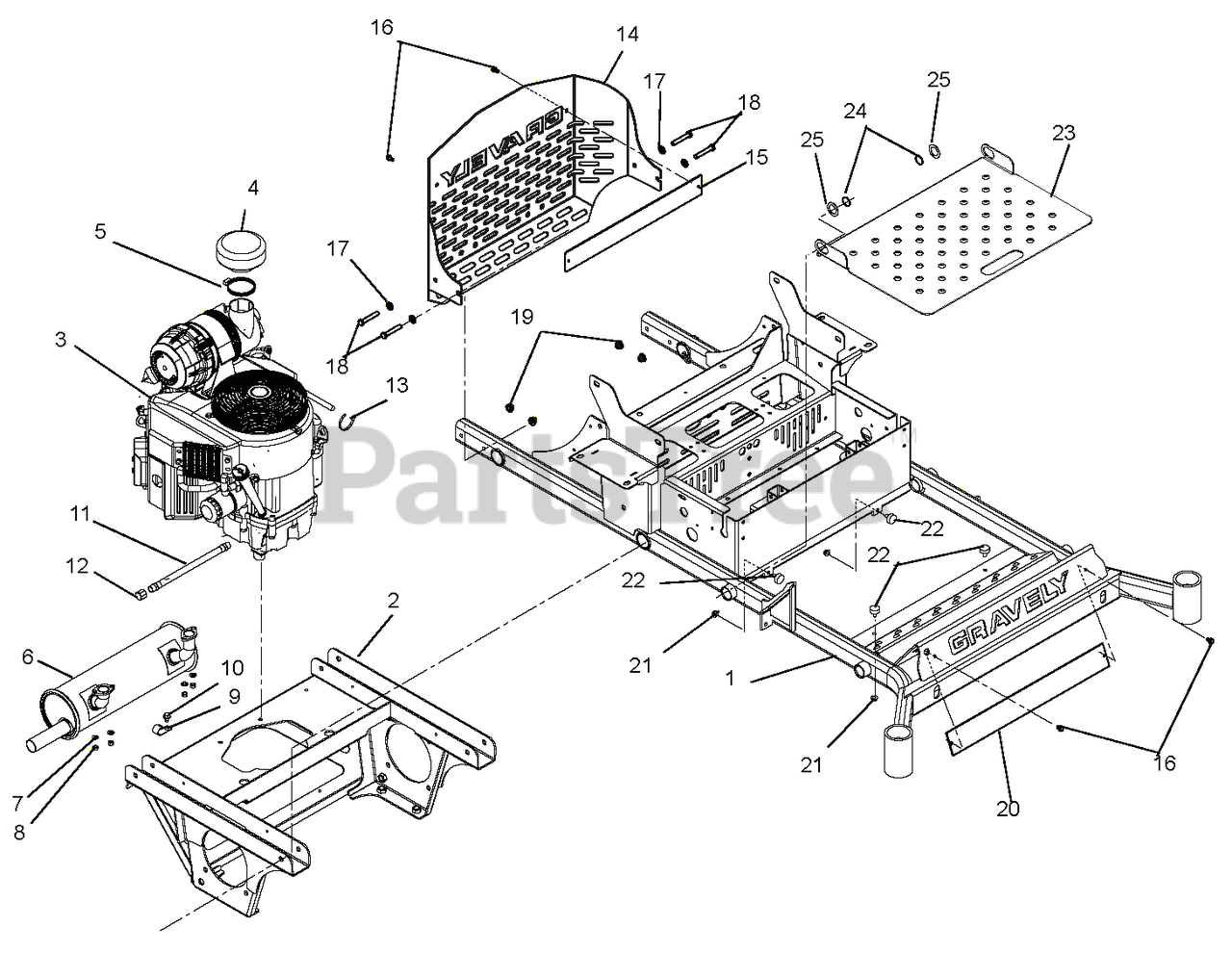

992185 (Pro-Turn 260) - Gravely Pro-Turn 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Engine And Frame Parts Diagram

Pro-Turn 60" Zero-Turn Mower, Kawasaki

Engine And Frame Parts Diagram

  • Title

1

Gravely 03879953

52"-66" 200PT MAIN FRAME-RED

$

$

Not available

2

Gravely 03855553

PT200/400 AXLE/ENG FRM WMT-RED

$619.99

$

Usually ships in 4-12 days

0

3

Gravely 08200327

ENGINE, KAWASAKI FX751 (27HP)

Note: (185)

$

$

Not available

Gravely 08200431

ENGINE, KAWASAKI FX730 (26HP)

Note: (26HP) (184)

$

$

Not available

Gravely 08200328

ENGINE, KAWASAKI FX850 (31HP)

Note: (31HP) (186, 187)

$

$

Not available

4

Gravely 03820900

RAIN CAP, AIR CLEANER (2.5")

Note: (185, 186, 187)

$79.99

$

In Stock, only 2 left!

0

Gravely 09408700

CAP, AIR CLEANER INTAKE (2")

$58.99

$

In Stock, Qty 5

0

5

Gravely 06900339

CLAMP, HOSE 2.75 DIA WORM

Note: (185, 186, 187)

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 03911000

MUFFLER, 27-31 KAW
(Superseded to 09386000)

Note: (185, 186, 187)

$188.99

$

In Stock, only 4 left!

0

Gravely 03989000

MUFFLER, KAWASAKI FX 24/26HP

Note: (184)

$184.99

$

In Stock, only 1 left!

0

7

Gravely 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 06916000

J-CLAMP

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.99

$

In Stock, Qty 20+

0

11

Gravely 03873100

HOSE,HYD .38-11-0K M6NO-M6N0
(Superseded to 07001829)

Note: (185, 186, 87)

$18.99

$

In Stock, only 2 left!

0

Gravely 04058500

HOSE,HYD .38-14-0K M6N0-M6N0
(Superseded to 05155100)

Note: (184)

$31.99

$

Usually ships in 4-12 days

0

12

Gravely 03873200

PIPE CAP 3/8 NPT FEMALE

$14.99

$

Usually ships in 4-12 days

0

13

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

14

Gravely 03889053

200 PRO-TURN BUMPER - RED

$267.99

$

Usually ships in 4-12 days

0

15

Gravely 03948251

BUMPER BACKER PLATE - BLACK

$18.99

$

Usually ships in 4-12 days

0

16

Gravely 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 05962900

@BLT-HEX .38-16X2.25 GR5 YWZC
(Superseded to 05901640)

$4.99

$

In Stock, Qty 20+

0

19

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.99

$

In Stock, Qty 20+

0

20

Gravely 03828551

BUMPER NAME BACKER PLATE-BLACK

$

$

Not available

21

Gravely 06530400

NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.99

$

In Stock, Qty 20+

0

22

Gravely 07533600

BUMPER, RUBBER

$12.99

$

In Stock, Qty 5

0

23

Gravely 03862351

INSPECTION PANEL - BLACK

$97.99

$

Usually ships in 4-12 days

0

24

Gravely 05707300

RG-RTNG-EXT 1.00X.078

$3.49

$

In Stock, Qty 9

0

25

Gravely 06436300

WSHR-FL-STL 1.010X1.505X.062YZ
(Superseded to 06401132)

$1.99

$

In Stock, Qty 20+

0
