992189 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Hydro-Gear Pump Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kawasaki

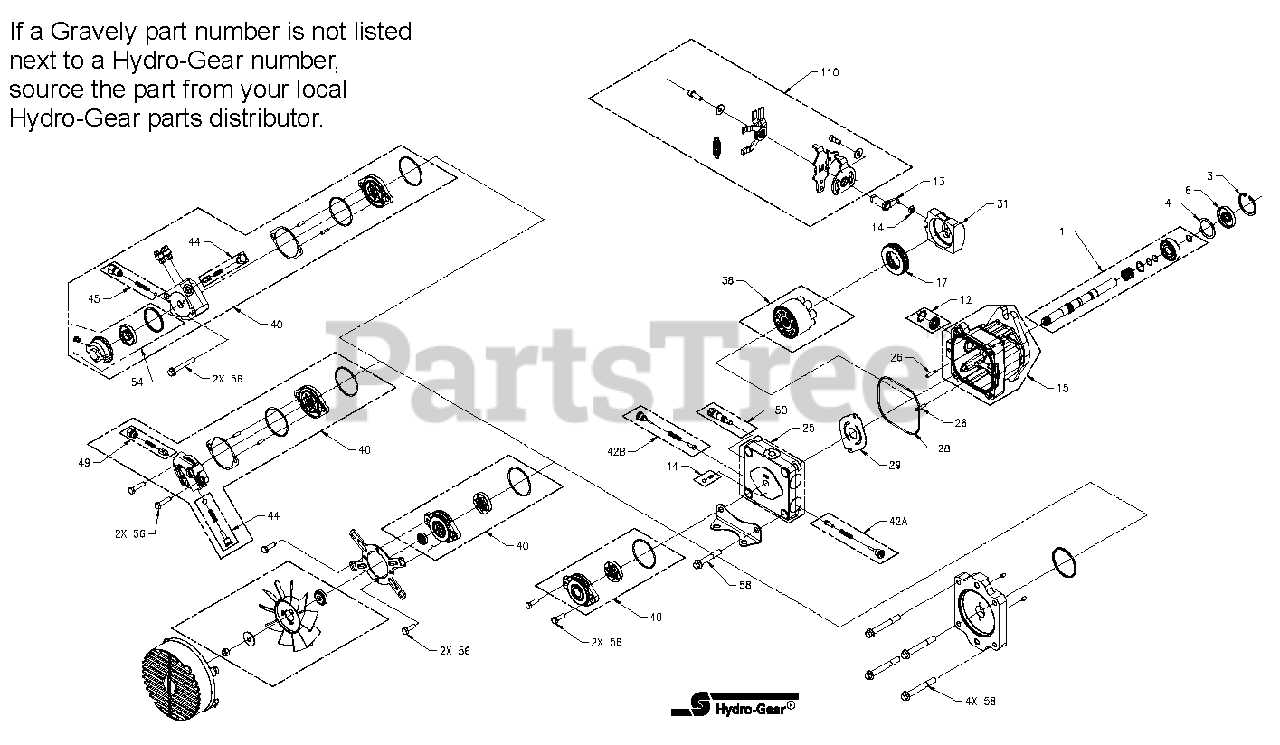

Hydro-Gear Pump Parts Diagram

  • Title

1

Gravely 21543908

KIT, PUMP SHAFT

Note: HydroGear p/n:70581

$209.99

$

Usually ships in 4-12 days

0

3

Gravely 21543962

RING, RET 47 INT

Note: HydroGear p/n:2000038

$4.49

$

Usually ships in 4-12 days

0

4

Gravely 21543961

WASHER, 1.45X1.84X.04

Note: HydroGear p/n:2000023

$

$

Not available

6

Gravely 21543796

SEAL, LIP 17X47X8

Note: HydroGear p/n:51092

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 21543922

KIT, BDP-16A TRUNNION SEA

Note: HydroGear p/n:70739

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 21543842

ARM, TRUNNION

Note: HydroGear p/n:51596

$

$

Not available

14

Gravely 08610700

GUIDE. SLOT

Note: HydroGear p/n:2000015

$

$

Not available

15

Gravely 21543943

SERVICE KIT, HOUSING

Note: HydroGear p/n:71060

$401.99

$

Usually ships in 4-12 days

0

17

Gravely 21543747

BRG, THRUST BALL 42X68X16

Note: HydroGear p/n:50552

$

$

Not available

25

Gravely 21543969

KIT, END CAP

Note: HydroGear p/n:2510066

$235.99

$

Usually ships in 4-12 days

0

26

Gravely 21543750

PIN, .219X1

Note: HydroGear p/n:50641

$

$

Not available

28

Gravely 21543742

O-RING, SQ .1X(4.3X4.6)

Note: HydroGear p/n:50381

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 21543852

VALVE PLATE

Note: HydroGear p/n:51764

$

$

Not available

31

Gravely 21543729

PLATE, SWASH 21CC

Note: HydroGear p/n:50203

$

$

Not available

38

Gravely 21543879

KIT, MOTOR BLOCK

Note: HydroGear p/n:70082

$103.99

$

Usually ships in 4-12 days

0

40

Kit, Charge Pump

Note: HydroGear p/n:70924

$

$

Not available

42

Gravely 21543923

KIT, SHOCK VALVE 200 BAR

Note: HydroGear p/n:70743

$

$

Not available

44

Gravely 21543956

KIT, CHARGE RELIEF

Note: HydroGear p/n:71361

$

$

Not available

45

Gravely 21543974

KIT, AUX RELIEF VALVE

Note: HydroGear p/n:2510082

$23.99

$

Usually ships in 4-12 days

0

49

Kit, Auxilary Bypass/Check Kit

Note: HydroGear p/n:2510020

$

$

Not available

50

Gravely 21543979

KIT, BYPASS VALVE

Note: HydroGear p/n:2513030

$29.99

$

Usually ships in 4-12 days

0

54

Gravely 59210300

KIT, AUX COVER HYDRO-GEAR

Note: HydroGear p/n:2510090

$

$

Not available

56

Gravely 21543994

HHCS 5/16-18X1

Note: HydroGear p/n:9007200-3116

$

$

Not available

58

Gravely 21543942

KIT, BOLT

Note: HydroGear p/n:71059

$

$

Not available

NS

Kit, Overhaul Seal Kit

Note: HydroGear p/n:2510073

$

$

Not available

110

Kit, Return

Note: HydroGear p/n:70871

$

$

Not available
