992190 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Kohler (SN: 000101 & Above) Engine And Clutch Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kohler

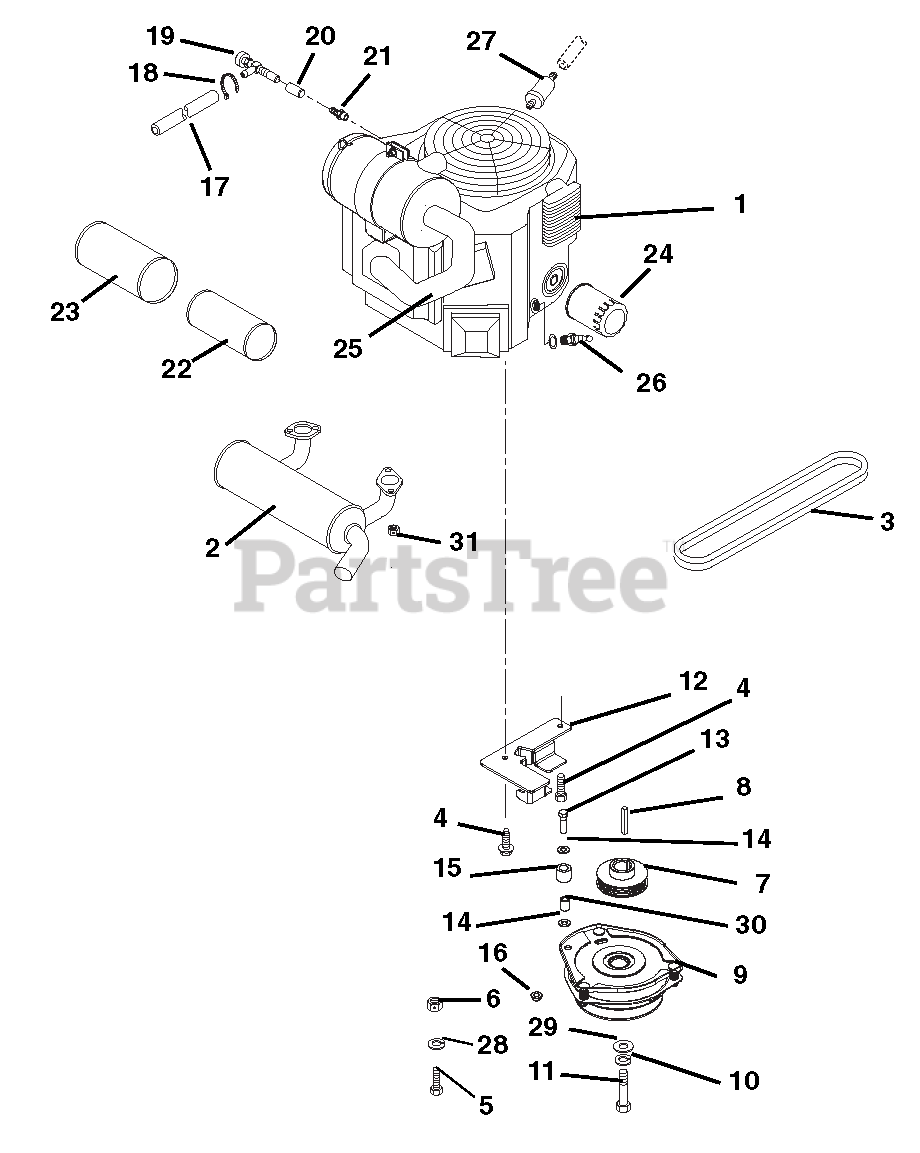

Engine And Clutch Parts Diagram

  • Title

1

Gravely 08268100

ENGINE, KOHLER 27HP

Note: (CV740S) (190)

$

$

Not available

Gravely 08200327

ENGINE, KAWASAKI FX751 (27HP)

Note: (FX751V) (188, 189, 191)

$

$

Not available

Gravely 08200328

ENGINE, KAWASAKI FX850 (31HP)

Note: (FX850V) (192, 193)

$

$

Not available

2

Gravely 01057000

MUFFLER - 31HP KAWASAKI VERT.

Note: (188, 189, 191, 192, 193)

$277.99

$

Usually ships in 4-12 days

0

Gravely 00470400

MUFFLER, KOHLER TWIN

Note: (190)

$218.99

$

In Stock, only 2 left!

0

3

Gravely 07242000

POLY V-BELT, K-5 RIBS

$54.99

$

In Stock, Qty 18

0

4

Gravely 07417400

@SCR-TAP .38-16X1.50 HWH TR YZ
(Superseded to 07400203)

Note: (190)

$4.99

$

In Stock, only 2 left!

0

Gravely 05900125

BLT-HEX.38-16X1.25FTHG5 EP30YZ
(Superseded to 05901507)

Note: (188, 189, 191, 192, 193)

$2.99

$

In Stock, Qty 19

0

5

Gravely 05957400

@BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

Note: (190)

$3.49

$

In Stock, Qty 10

0

6

Gravely 06543100

NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

Note: (190)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 07300041

SHEAVE - POLY-V 1.127 X 3.275

$95.99

$

In Stock, Qty 5

0

8

Gravely 06600003

KEY-SQ. .25X3.50X.25 SAE

$5.49

$

In Stock, Qty 10

0

9

Gravely 00447100

CLUTCH, ELE-OGURA GT3.5-VP01R

$512.99

$

In Stock, only 2 left!

0

10

Gravely 06309300

@WSHR-LK .44X.109 REG YWZC
(Superseded to 06300121)

$2.99

$

In Stock, Qty 20+

0

11

Gravely 05900037

BLT-HEX .44-20X3.00 G5 YZ EP80

Note: (190)

$7.49

$

In Stock, Qty 14

0

Gravely 05900039

BLT-HEX .44-20X1.50 G5 YZ EP80
(Superseded to 05902004)

Note: (188, 189, 191, 192, 193)

$6.49

$

In Stock, Qty 10

0

12

Gravely 00662251

WMT - CLUTCH ANCHOR - OGURA

$84.99

$

Usually ships in 4-12 days

0

13

Gravely 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.99

$

In Stock, Qty 17

0

14

Gravely 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 07500007

BUMPER,RUBBER .62X1.0X.88 LG

$6.49

$

In Stock, only 1 left!

0

16

Gravely 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 03278100

HOSE, .25 LOW-PERM BULK GAS

$1.49

$

In Stock, Qty 20+

0

18

Gravely 07517300

CABLE TIE LG 5-1/2

$1.49

$

Usually ships in 4-12 days

0

19

Gravely 00429000

DRAIN, 1/2" OIL

$40.99

$

In Stock, only 3 left!

0

20

Gravely 07052200

ADAPTER, 3/8 NPTF

Note: (190)

$15.99

$

Usually ships in 4-12 days

0

21

Gravely 07024900

NIPPLE-PIPE .375-18 NPTF X3.00

Note: (190)

$

$

Not available

22

Gravely 21545300

ELEMENT-INNER - KAWASAKI

Note: (188, 189, 191, 192, 193)

$56.99

$

In Stock, only 2 left!

0

Gravely 21536900

ELEMENT, INNER SAFETY

Note: (190)

$29.99

$

In Stock, Qty 11

0

23

Gravely 21545400

ELEMENT-OUTER - KAWASAKI

Note: (188, 189, 191, 192, 193)

$50.99

$

In Stock, Qty 20+

0

Gravely 21537000

ELEMENT, OUTER PRIMARY

Note: (190)

$37.99

$

In Stock, Qty 20+

0

24

Gravely 21535800

FILTER,OIL - KAW
(Superseded to 49065-0724)

Note: (188, 189, 191, 192, 193)

$18.99

$

Usually ships in 2-5 days

0

Gravely 21397200

FILTER, OIL - KOH CV20
(Superseded to 20715100)

Note: (190)

$21.99

$

Usually ships in 4-12 days

0

25

Gravely 21536800

HOSE, AIR INTAKE

Note: (190)

$26.99

$

In Stock, only 1 left!

0

26

Gravely 21536100

PLUG, SPARK

Note: (188, 189, 191, 192, 193)

$10.99

$

In Stock, Qty 20+

0

Gravely 21544000

PLUG-SPARK

Note: (190)

$10.99

$

In Stock, Qty 20+

0

27

Gravely 21538400

FUEL FILTER - KAWASAKI
(Superseded to 21573800)

Note: (188, 189, 191, 192, 193)

$15.99

$

Usually ships in 4-12 days

0

Gravely 21539500

FILTER, FUEL

Note: (190)

$18.99

$

In Stock, Qty 20+

0

28

Gravely 06307200

@WSHR-LK-EXT.326X.599X.031YWZC
(Superseded to 06300125)

Note: (190)

$0.99

$

In Stock, Qty 9

0

29

Gravely 06443600

WSHR-FL-STL .469X2.00X.25 YWZC
(Superseded to 06401111)

$7.99

$

In Stock, Qty 20+

0

30

Gravely 08905500

BUSH.,S.407X.625X.813 ST

$14.99

$

In Stock, only 1 left!

0

31

Gravely 06500018

NUT-LK-TOP M8-1.25 YWZC
(Superseded to 06500919)

$2.49

$

In Stock, Qty 20+

0
