992190 (PM 260H) - Gravely Pro-Master 60" Zero-Turn Mower, Kohler (SN: 000101 & Above) Seat Parts Diagram

Pro-Master 60" Zero-Turn Mower, Kohler

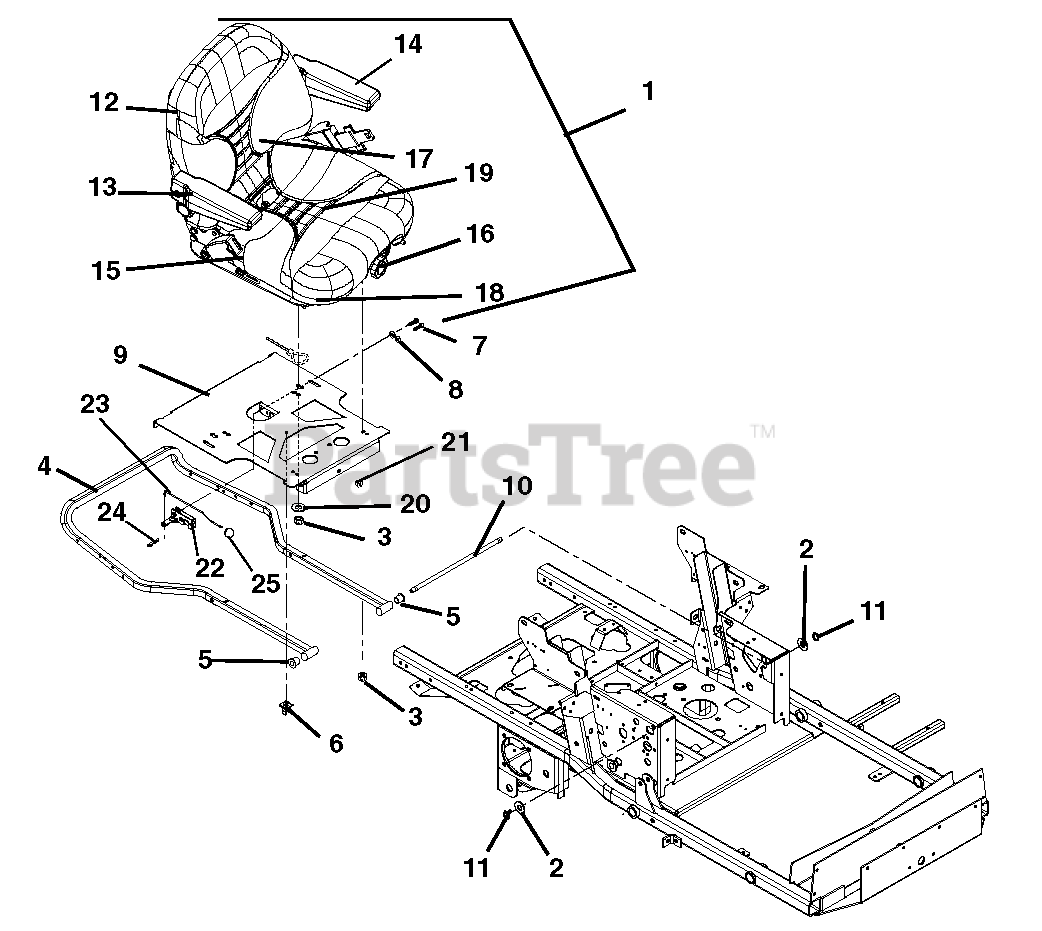

Seat Parts Diagram

  • Title

1

Gravely 04052900

Seat, Suspension -with Belt, Light Gray
(Superseded to 09680600)

$963.99

$

Usually ships in 4-12 days

0

2

Gravely 06441900

Washer, Flat Steel .531 x 1.06 x .095
(Superseded to 06401015)

$1.49

$

In Stock, only 3 left!

0

3

Gravely 06543100

Nut, Locking-Top-Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 09293353

Weldment, Hood Frame

$277.99

$

Usually ships in 4-12 days

0

5

Gravely 05521100

Bushing, Flange .515 x .750 x .745 x 1.00

$2.99

$

In Stock, Qty 10

0

6

Gravely 00367900

Clip, Routing

$1.99

$

In Stock, only 1 left!

0

7

Gravely 05947700

Bolt, Hex .25-20 x 1.00 Grade 5
(Superseded to 05901639)

$1.99

$

In Stock, Qty 8

0

8

Gravely 06308400

Washer, Locking .25 x .062 Regular
(Superseded to 06401009)

$0.99

$

In Stock, Qty 11

0

9

Gravely 04044851

Plate, Seat 200 XDZ with Latch

$105.99

$

Usually ships in 4-12 days

0

10

Gravely 09245400

Rod, Seat Frame Pivot

$131.99

$

Usually ships in 4-12 days

0

11

Gravely 05717100

Ring, Retaining-External .500 x .050

$2.99

$

In Stock, only 2 left!

0

12

Gravely 59208800

Kit, Back Cushion, Light Grey

$431.99

$

Usually ships in 4-12 days

0

13

Gravely 59210400

Kit, Right Hand Armrest Assembly

$142.99

$

Usually ships in 4-12 days

0

14

Gravely 59210500

Kit, Left Hand Armrest Assembly

$142.99

$

Usually ships in 4-12 days

0

15

Gravely 59208900

Kit, Seat Cusion, Light Grey

$263.99

$

In Stock, only 3 left!

0

16

Gravely 59208000

Kit, Seat Knobs

$34.99

$

Usually ships in 4-12 days

0

17

Gravely 59208100

Kit, Seat Back

$179.99

$

Usually ships in 4-12 days

0

18

Gravely 59207900

Kit, Seat Slides

$

$

Not available

19

Gravely 59207800

Kit, Seat Spring and Saddle

$186.99

$

Usually ships in 4-12 days

0

20

Gravely 06446300

Washer, Flat Steel .344 x 1.25 x .135
(Superseded to 06401104)

$4.99

$

In Stock, Qty 15

0

21

Gravely 05500020

Bushing, POLYLINER-.38 SNAPIN

$2.99

$

In Stock, Qty 18

0

22

Gravely 04054600

Latch, Rotary-Push To Close

$24.99

$

Usually ships in 4-12 days

0

23

Gravely 04058100

Rod, Seat Latch Release

$22.99

$

Usually ships in 4-12 days

0

24

Gravely 06703300

Pin, Hair Internal .06 x .25 x 1.12
(Superseded to 06700221)

$0.99

$

In Stock, Qty 5

0

25

Gravely 07520500

Knob

$22.99

$

Usually ships in 4-12 days

0
