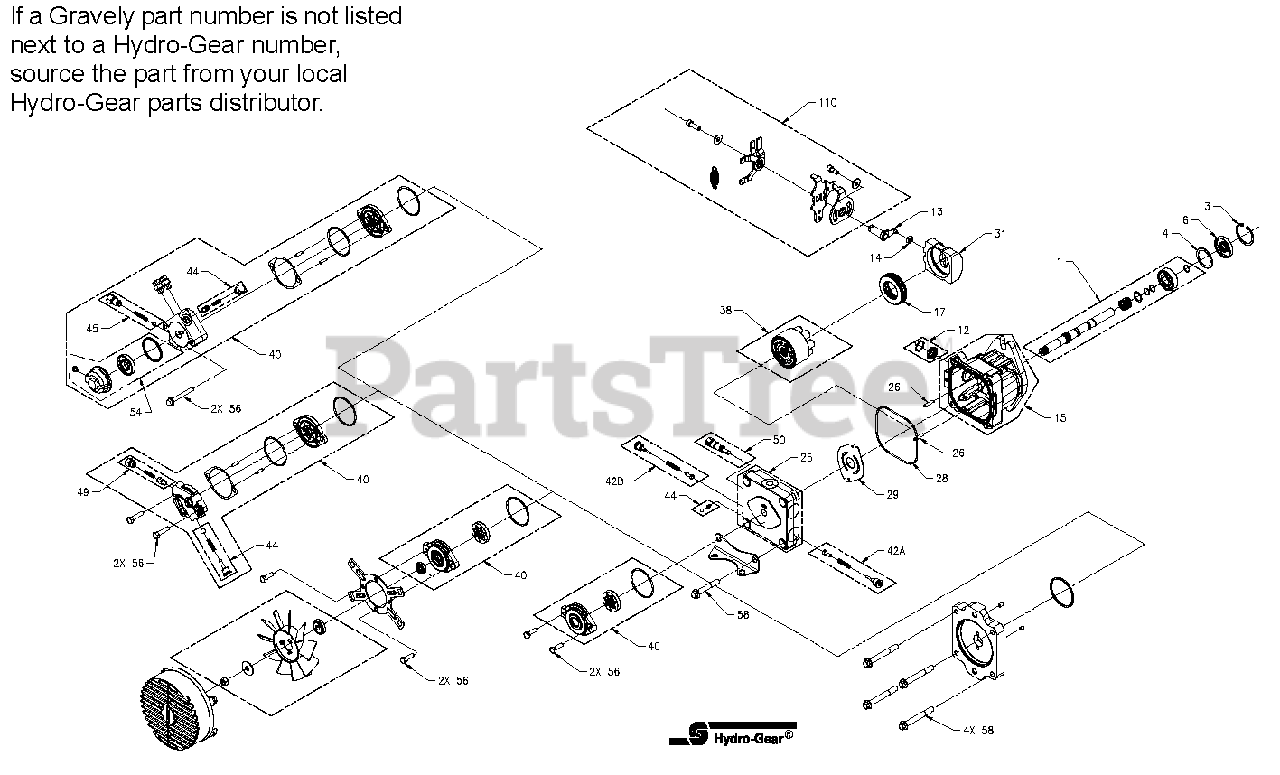

992193 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, Kawasaki (SN: 000101 & Above) Hydro-Gear Pump Parts Diagram

Pro-Master 72" Zero-Turn Mower, Kawasaki

Hydro-Gear Pump Parts Diagram

  • Title

1

Gravely 21543908

Kit, Input Shaft

Note: HydroGear p/n:70581

$209.99

$

Usually ships in 4-12 days

0

3

Gravely 21543962

Ring, Retaining

Note: HydroGear p/n:2000038

$4.49

$

Usually ships in 4-12 days

0

4

Gravely 21543961

Washer, 1.45 x 1.84 x .04

Note: HydroGear p/n:2000023

$

$

Not available

6

Gravely 21543796

Lip Seal, 17 x 47 x 8

Note: HydroGear p/n:51092

$13.99

$

Usually ships in 4-12 days

0

12

Gravely 21543922

Kit, Trunnion Seal

Note: HydroGear p/n:70739

$8.49

$

Usually ships in 4-12 days

0

13

Gravely 21543842

Trunnion Arm, Taper Square

Note: HydroGear p/n:51596

$

$

Not available

14

Gravely 08610700

Slot Guide

Note: HydroGear p/n:2000015

$

$

Not available

15

Gravely 21543943

Kit, Housing

Note: HydroGear p/n:71060

$401.99

$

Usually ships in 4-12 days

0

17

Gravely 21543747

Assembly, Thrust Ball Bearing

Note: HydroGear p/n:50552

$

$

Not available

25

Gravely 21543970

Kit, Encap

Note: HydroGear p/n:2510069

$305.99

$

Usually ships in 4-12 days

0

26

Gravely 21543750

Pin

Note: HydroGear p/n:50641

$

$

Not available

28

Gravely 21543742

O-Ring

Note: HydroGear p/n:50381

$7.49

$

Usually ships in 4-12 days

0

29

Gravely 21543852

Valve Plate

Note: HydroGear p/n:51764

$

$

Not available

31

Gravely 21543729

Variable Swashplate

Note: HydroGear p/n:50203

$

$

Not available

38

Gravely 21543879

Kit, Cylinder Block

Note: HydroGear p/n:70082

$103.99

$

Usually ships in 4-12 days

0

40

Kit, Charge Pump

Kit, Charge Pump

Note: HydroGear p/n:70927

$

$

Not available

42

Gravely 21543923

Kit, Shock Valve

Note: HydroGear p/n:70743

$

$

Not available

44

Kit, Charge Relief

Kit, Charge Relief

Note: HydroGear p/n:70926

$

$

Not available

45

Gravely 21543974

Kit, Auxilary Relief Valve

Note: HydroGear p/n:2510082

$23.99

$

Usually ships in 4-12 days

0

49

Kit, Auxilary Bypass/Check Kit

Kit, Auxilary Bypass/Check Kit

Note: HydroGear p/n:2510020

$

$

Not available

50

Gravely 21543979

Kit, Bypass Valve

Note: HydroGear p/n:2513030

$29.99

$

Usually ships in 4-12 days

0

54

Gravely 59210300

Kit, Auxilary Filter Kit

Note: HydroGear p/n:2510090

$

$

Not available

56

Gravely 21543784

Screw, 5/16-18 x 2.5

Note: HydroGear p/n:51055

$

$

Not available

58

Gravely 21543942

Kit, HSG Bolt

Note: HydroGear p/n:71059

$

$

Not available

NS

Kit, Overhaul Seal Kit

Kit, Overhaul Seal Kit

Note: HydroGear p/n:2510073

$

$

Not available

110

Gravely 21543936

Kit, Return

Note: HydroGear p/n:70870

$84.99

$

In Stock, only 1 left!

0
