992196 (PM 272H) - Gravely Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu (SN: 000101 & Above) Electrical System Parts Diagram

Pro-Master 72" Zero-Turn Mower, 31hp Daihatsu

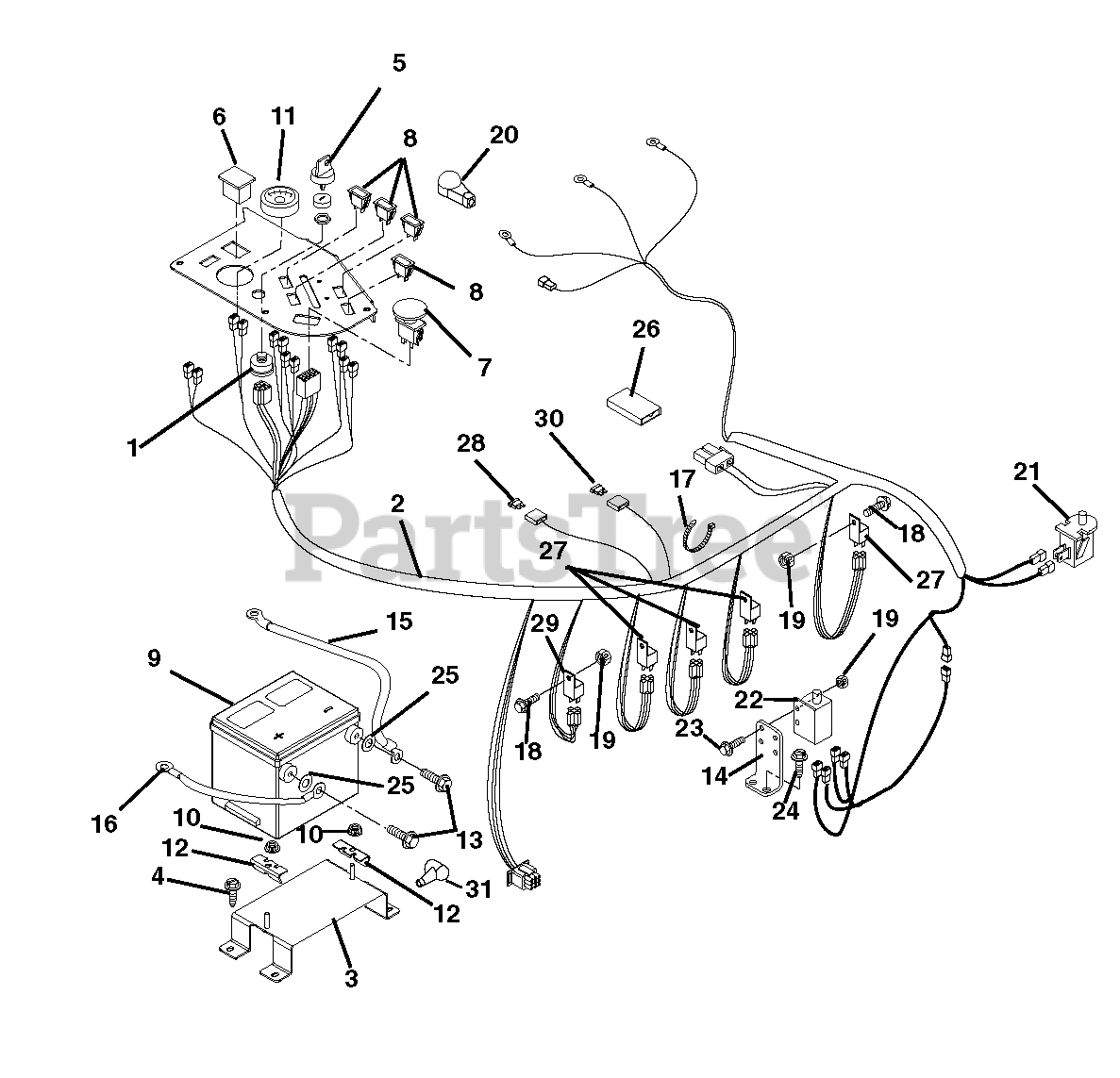

Electrical System Parts Diagram

  • Title

1

Gravely 00464000

Switch, Ignition
(Superseded to 04331600)

$47.99

$

In Stock, Qty 20+

0

2

Gravely 03286500

Harness, Wiring

$355.99

$

Usually ships in 4-12 days

0

3

Gravely 09266551

Weldment, Battery Support

$

$

Not available

4

Gravely 07415400

Screw, Tapping .38-16 x .75 Hex Washer Head
(Superseded to 07400129)

$1.99

$

In Stock, Qty 20+

0

5

Gravely 09287000

Key, with Cap

$17.99

$

In Stock, Qty 20+

0

Gravely 21510400

Ignition Key Set

$10.99

$

Usually ships in 4-12 days

0

6

Gravely 03966800

Hour Meter w/ Maintenance
(Superseded to 09497400)

$25.99

$

In Stock, only 4 left!

0

7

Gravely 01545600

Switch, Clutch With Retainer Ring

$27.99

$

In Stock, Qty 20+

0

8

Gravely 08841200

Light, Indicator
(Superseded to 05128700)

$7.99

$

In Stock, Qty 9

0

9

Gravely 00525500

Battery with Tube

$

$

Not available

10

Gravely 06543100

Nut, Locking Top Flange .31-18
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 09080200

Gauge, Temperature

$102.99

$

Usually ships in 4-12 days

0

12

Gravely 09266600

Bracket, Battery Hold-Down

$18.99

$

Usually ships in 4-12 days

0

13

Gravely 00526400

Bolt, Hex .25-20 x .75 Grade 5

$

$

Not available

14

Gravely 09275851

Mount, Safety Switch

$22.99

$

Usually ships in 4-12 days

0

15

Gravely 03287000

Cable, Positive Battery with Boots

$32.99

$

Usually ships in 4-12 days

0

16

Gravely 09278100

Cable, Negative Battery

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 07517300

Cable Tie

$

$

Not available

18

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

19

Gravely 06536000

Nut, Locking Nylon 10-24 With Insert
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 00678000

Boot Terminal, Red

$

$

Not available

21

Gravely 02754100

Switch, Snap Mounting (N.O.) (Included with Seat)

Note: (N.O.) (Included with Seat)

$9.99

$

In Stock, Qty 20+

0

22

Gravely 03606600

Switch, Single Pole

$17.99

$

In Stock, Qty 20+

0

23

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, only 4 left!

0

24

Gravely 07412000

Screw, Tapping .25-20 x .50 Hex Washer Head
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

25

Gravely 06435700

Washer, Flat-Steel .406 x 1.00 x ..083
(Superseded to 06401023)

$1.99

$

In Stock, Qty 20+

0

26

Gravely 09293500

Diode, Connector Shell
(Superseded to 09293501)

$13.99

$

In Stock, Qty 20+

0

27

Gravely 00432100

Relay (Included with Harness)
(Superseded to 00432101)

Note: (Included with Harness)

$25.99

$

In Stock, Qty 20+

0

28

Gravely 21542000

Fuse, ATO 30 Amp (Included with Harness)
(Superseded to 21542001)

Note: (Included with Harness)

$

$

Not available

29

NA

Pre-Heat Timer (Included with Engine)

Note: (Included with Engine)

$

$

Not available

30

Gravely 21542200

Fuse, ATO 60 Amp (Included with Harness)
(Superseded to 21542201)

Note: (Included with Harness)

$

$

Not available

31

Gravely 00525800

Battery Terminal Boot, Red

$8.49

$

Usually ships in 4-12 days

0
